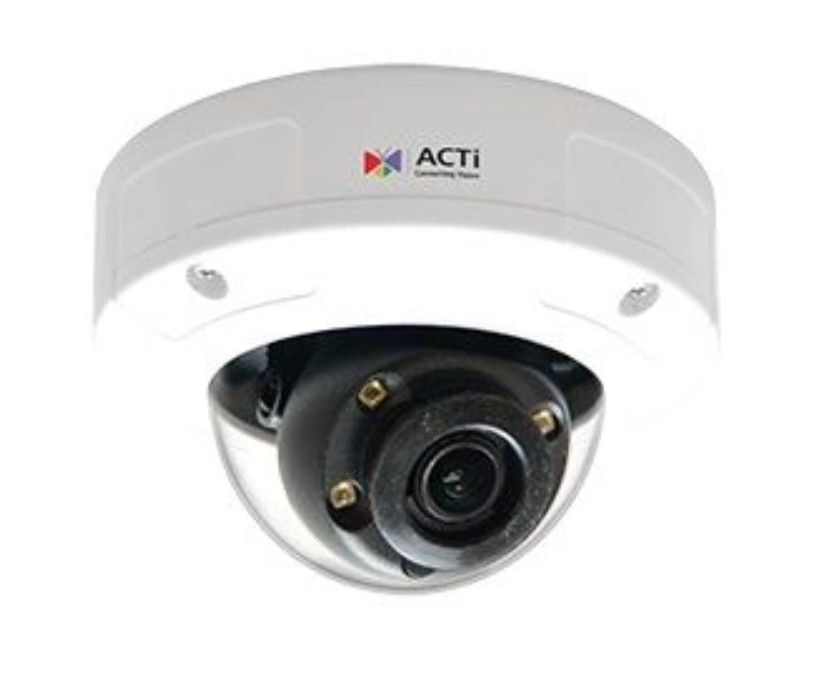

ACTi A88 3 Megapixel Outdoor IR Network Mini Dome Camera, 2.8-8mm Lens
Model No
A88
$514.00
Product Highlights
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 2.85x Zoom Lens with f2.8-8.0/F1.6, Auto focus (for installation)
- Advanced WDR
- H.265 Compression
Speak to an expert
The A88 from ACTi is a 3 megapixel outdoor IR network mini dome camera, featuring a versatile 2.8-8mm lens designed for high-quality surveillance in various lighting conditions. With enhanced low light sensitivity and advanced WDR technology, this camera ensures clear images day and night while supporting efficient H.265 compression for optimized bandwidth usage.
ACTi A88 Camera Features
- 3 Megapixel: Delivers high-resolution images for detailed monitoring and identification.
- Day & Night with Superior Low Light Sensitivity: Ensures clear visibility in low light conditions with Adaptive IR LED for night-time use.
- 2.85x Zoom Lens (f2.8-8.0/F1.6, Auto focus): Allows flexibility in focusing, making installation easier and images clearer.
- Advanced WDR: Provides improved image quality in challenging lighting environments by balancing bright and dark areas.
- H.265 Compression: Reduces file sizes without sacrificing quality, optimizing storage and bandwidth.
- Wide Angle: Covers a larger area with fewer cameras needed, perfect for outdoor surveillance.
- Event Trigger, Response, and Notification: Supports customizable alerts for specific events, enhancing security responsiveness.
ACTi A88 Detailed Specifications
| Camera Type | 3 Megapixel Mini Dome |
| Lens Type | 2.8-8mm, Auto focus |
| Low Light Capability | Superior sensitivity with Adaptive IR LED |
| WDR Technology | Advanced Wide Dynamic Range |
| Compression Format | H.265 |
| Field of View | Wide Angle Coverage |
| Event Capability | Trigger, Response, Notification |
SKU  | A88 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 99mm x 64.7mm (3.9" x 2.5") |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Pixels-Effective | 2065(H) X 1553(V) (3.21 MP) |
| IR Wavelength | 700-1150nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.6; B/W 0 lux at F1.6 (AGC on) |
| Operating Humidity | 20% - 80% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | 8 W (PoE, IR on), 9 W (DC, IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Zoom Ratio | 2.85x optical |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle: 95° - 55° |
| Motion Detection Tracking | 3 regions |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
