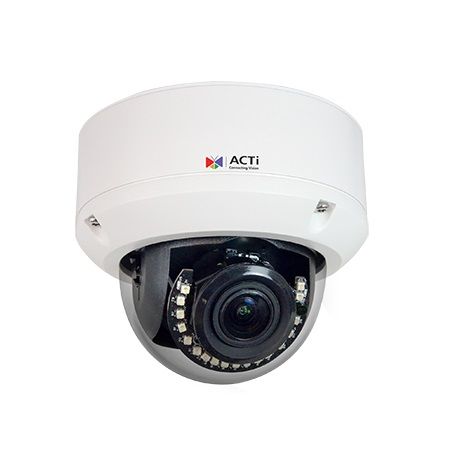

ACTi A84 12 Megapixel Outdoor Network IR Dome Camera, 3.6-11mm Lens
Model No
A84
$862.65
Product Highlights
- Face, People and Car Detection
- 12 Megapixel with 4K Ultra HD
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 3x Zoom Lens with f3.6-11mm/F1.5, P-Iris, Auto focus (for installation)
- Extreme WDR
Speak to an expert
The A84 from ACTi is a 12 megapixel outdoor network IR dome camera, featuring a versatile 3.6-11mm lens ideal for capturing high-quality images in various environments. Designed for superior performance, this camera offers advanced detection capabilities and low light sensitivity, making it a reliable choice for security and surveillance needs.
ACTi A84 Features
- Face, People and Car Detection: Smart analytics help identify and track individuals and vehicles, enhancing security monitoring.
- 12 Megapixel with 4K Ultra HD: High-resolution imaging provides crystal-clear video and detailed surveillance footage.
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED: Exceptional performance in various lighting conditions ensures continuous monitoring.
- 3x Zoom Lens with f3.6-11mm/F1.5, P-Iris, Auto focus: Flexibility for installation and improved image clarity at varying distances.
- Extreme WDR: Wide Dynamic Range technology allows for better visibility in high contrast scenes.
- H.265 Compression: Efficient video compression reduces bandwidth usage without sacrificing quality.
- Super Wide Angle: Broad field of view captures more area, reducing the number of cameras needed.
- Built-in Analytics: Enables real-time data processing to improve security responses.
- Event Trigger, Response and Notification: Automated alerts and actions enhance situational awareness and response times.
ACTi A84 Detailed Specifications
| Type | Outdoor Network IR Dome Camera |
| Resolution | 12 Megapixel (4K Ultra HD) |
| Lens | 3.6-11mm, f1.5, P-Iris, Auto focus |
| Low Light Performance | Superior Low Light Sensitivity, Adaptive IR LED |
| Compression Format | H.265 |
| Smart Detection Features | Face, People, and Car Detection |
| Wide Dynamic Range | Extreme WDR |
| Built-in Features | Analytics, Event Triggering, Notifications |
SKU  | A84 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10") |
| Electronic Shutter | 1/5-1/64000 second (manual mode)? 1/5-1/64000 second (auto mode) |
| Image Device | 1/1.7 " Progressive Scan CMOS |
| Image Pixels-Effective | 4072(H) X 3046(V) (12.4 MP) |
| IR Wavelength | 700-1150nm |
| Minimum Scene Illumination | Color: 0.05 lux at F1.5, B/W: 0.005 lux at F1.5 |
| Operating Humidity | 20% - 80% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 12.95 W (PoE) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| S/N Ratio | 56 dB |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Zoom Ratio | 3x optical |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle: 110.3° - 45.6°, Vertical Viewing Angle: 55.5° - 24° |
| Rotation Angle | ±90° |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
