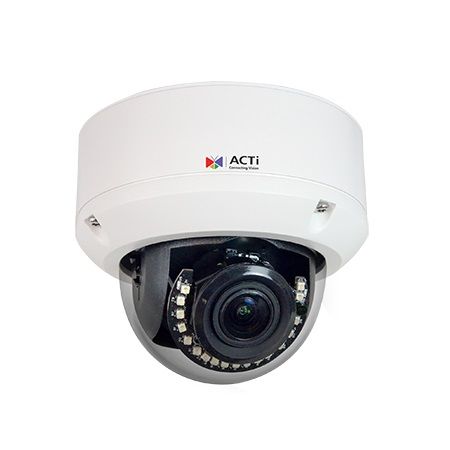

ACTi A815 3 Megapixel Outdoor IR Dome Camera with 2.8-12mm Lens
SKU
A815
Model No
A815
$631.80
Product Highlights
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12mm/F1.4-F2.8, P-Iris, Auto focus (for installation)
- Extreme WDR
- H.265 Compression
Speak to an expert
The A815 from ACTi is a high-performance 3 megapixel outdoor IR dome camera equipped with a versatile 2.8-12mm lens, offering superior surveillance capabilities in various lighting conditions, making it ideal for both residential and commercial applications.
ACTi A815 Camera Features
- 3 Megapixel: Provides high-resolution images for clearer monitoring and identification of subjects.
- Day & Night Functionality: Features superior low light sensitivity with Adaptive IR LED for effective night surveillance.
- 4.3x Zoom Lens: Includes a f2.8-12mm/F1.4-F2.8 P-Iris lens with auto focus, ensuring detailed images even from a distance.
- Extreme WDR: Offers Wide Dynamic Range to enhance image quality in challenging lighting conditions.
- H.265 Compression: Reduces bandwidth and storage requirements while maintaining video quality.
- Wide Angle: Covers large areas effectively, reducing the number of cameras needed for comprehensive surveillance.
- Event Trigger, Response, and Notification: Provides customizable alerts and actions to respond promptly to security events.
Detailed Specifications for ACTi A815
| Model | ACTi A815 |
| Resolution | 3 Megapixels |
| Lens Type | 2.8-12mm Zoom Lens |
| Low Light Performance | Superior Low Light Sensitivity with Adaptive IR LED |
| Dynamic Range | Extreme WDR |
| Video Compression | H.265 |
| Field of View | Wide Angle |
| Alerts and Notifications | Event Trigger and Response Capabilities |
SKU  | A815 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10") |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Pixels-Effective | 2065(H) X 1553(V) (3.21 MP) |
| IR LEDs | Adaptive IR LED x 12 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.05 lux at F1.4; B/W 0.005 lux at F1.4 (AGC on) |
| Operating Humidity | 20% - 80% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 10 W (PoE) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| S/N Ratio | 56 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 90.6° - 32.7°, Vertical Viewing Angle 67.6° - 24.2° |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
