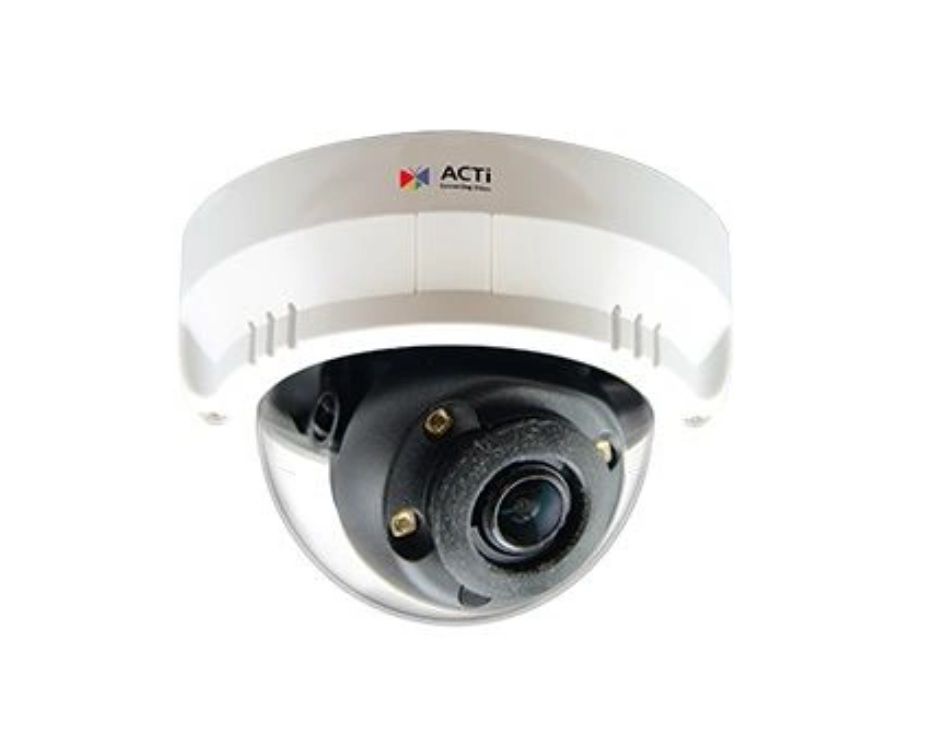

ACTi A63 2 Megapixel Outdoor Network IR Dome Camera, 2.8-8mm Lens
Model No
A63
$391.50
Product Highlights
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12mm/F1.4-F2.8, DC iris, Auto focus (for installation)
- Advanced WDR
- H.265 Compression
Speak to an expert
The ACTi A63 2 Megapixel Outdoor Network IR Dome Camera is a versatile surveillance solution designed to provide high-definition monitoring in various outdoor environments. With its 2.8-8mm lens and advanced features such as superior low light sensitivity and adaptive IR LED, this camera offers exceptional image quality both day and night, making it an excellent choice for security needs.
ACTi A63 Camera Features
- 5 Megapixel: Delivers crystal-clear image quality, ensuring detailed surveillance footage.
- Day & Night with Superior Low Light Sensitivity: Maintains excellent performance in low light conditions, providing 24/7 monitoring.
- 4.3x Zoom Lens: Features a versatile 2.8-8mm lens with DC iris and auto focus, allowing for flexible installation and precise framing.
- Advanced WDR: Wide Dynamic Range technology enhances image clarity in challenging lighting situations.
- H.265 Compression: Efficient encoding reduces bandwidth and storage requirements while maintaining video quality.
- Event Trigger, Response and Notification: Configurable alerts for increased situational awareness and quick response capabilities.
ACTi A63 Detailed Specifications
| Product Type | Outdoor Network IR Dome Camera |
| Image Sensor | 2 Megapixel |
| Lens | 2.8-8mm, F1.4-F2.8, DC Iris, Auto Focus |
| Zoom | 4.3x |
| Low Light Sensitivity | Superior |
| WDR Technology | Advanced |
| Video Compression | H.265 |
| Trigger Features | Event trigger, response, and notification |
SKU  | A63 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Image Device | 1/2.9" Progressive Scan CMOS |
| Image Pixels-Effective | 3096(H)Â XÂ 2202(V)Â (6.82Â MP) |
| IR LEDs | 12 |
| IR Wavelength | 850Â nm |
| Minimum Scene Illumination | Color: 0.15 lux? B/W: 0 lux (IR LED on) |
| Operating Humidity | 20%Â -Â 80%Â RH |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Power Consumption | 10 W (PoE), 8 W (DC) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| S/N Ratio | 56Â dB |
| Video Output | RJ-45 |
| Zoom Ratio | 4.3x optical |
| Digital Noise Reduction | 2DÂ +Â 3DÂ DNR |
| Angle of View | Horizontal Viewing Angle: 68° - 26.6°, Vertical Viewing Angle: 50.8° - 20.2° |
| Motion Detection Tracking | 3Â regions |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
