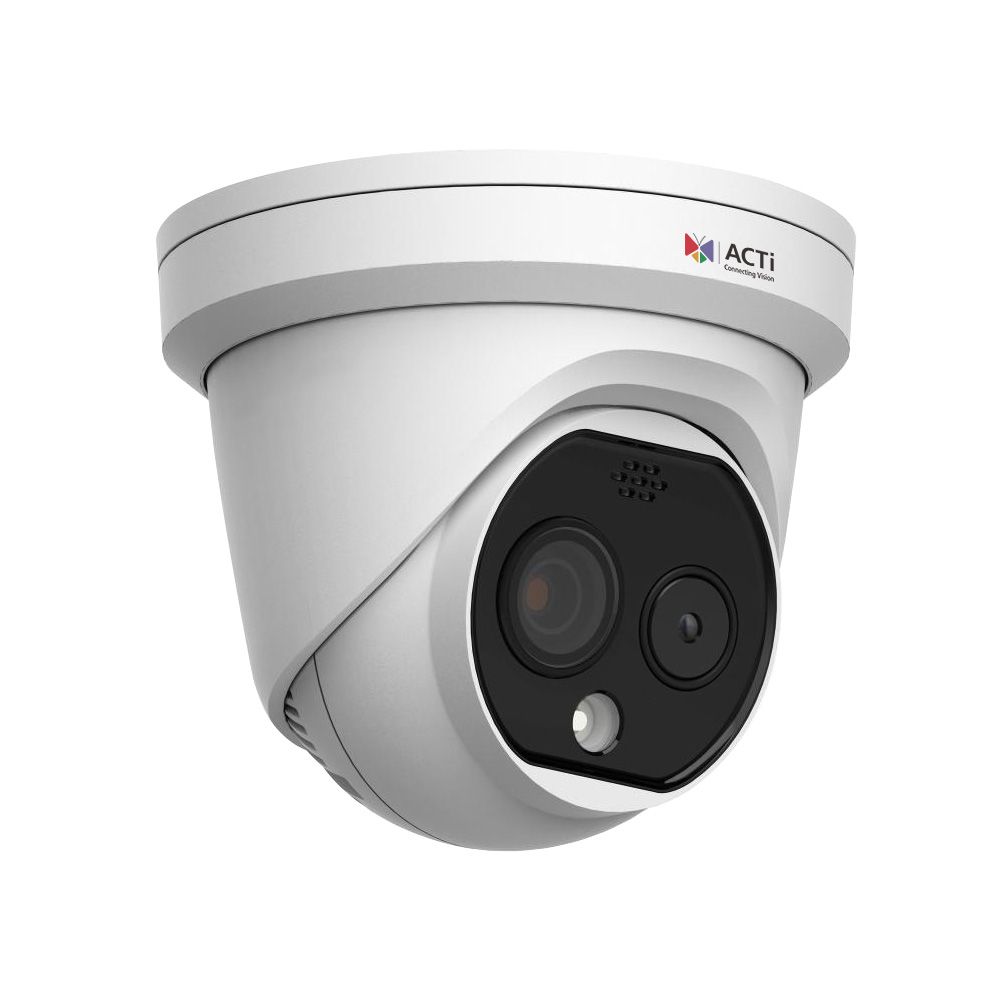

ACTi A570 4 Megapixel Network IP Outdoor IR Dome Camera with Dual Lens
SKU
A570
Model No
A570
$4,023.00
Product Highlights
- Fire Detection
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Smart Dual Light with built-in IR and White LED
- Superior WDR (120dB)
Speak to an expert
The A570 from ACTi is a high-performance outdoor thermal turret camera designed for superior surveillance capabilities. Equipped with advanced features like a 4 megapixel resolution, adaptive IR technology, and superior wide dynamic range (WDR), it excels in both day and night conditions, making it an ideal choice for comprehensive security monitoring.
ACTi A570 Camera Features
- Fire Detection: Quickly identifies and alerts for potential fire hazards, enhancing safety and security.
- 4 Megapixel Resolution: Delivers sharp and detailed images, ensuring clear surveillance footage.
- Day & Night Functionality: Offers superior low light sensitivity and adaptive IR LED for optimal performance in various lighting conditions.
- Smart Dual Light: Features both built-in IR and white LED lighting for versatility in illumination.
- Superior WDR (120dB): Captures clear images in high-contrast lighting situations, ensuring visibility in challenging environments.
- H.265 Compression: Reduces bandwidth usage without sacrificing image quality, making it more efficient for storage and transmission.
- Wide Angle Lens: Provides broader coverage area, reducing the number of cameras needed for extensive monitoring.
- Super Wide Angle: Enhances field of view for maximum surveillance efficiency.
- Event Trigger, Response and Notification: Offers automated alerts and responses to specific detected events for proactive security management.
ACTi A570 Detailed Specifications
| Model | A570 |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Optical Lens Size | f2.2mm |
| Thermal Lens Size | f2.1mm |
| IR LED Range | 15m |
| White LED Range | 30m |
| WDR | 120dB |
| Compression Format | H.265 |
SKU  | A570 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (W x H x D): 138.3mm x 138.3mm x 123.1mm (5.45" x 5.45" x 4.85") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | Progressive Scan CMOS + Thermal sensor |
| Image Pixels-Effective | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| IR LEDs | Adaptive IR LED |
| Minimum Scene Illumination | Color: 0.0176 lux at F2.25 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Power Consumption | 6 W (DC), 6.5 W (PoE) |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| S/N Ratio | 75 dB |
| Weatherproof | IP67 |
| Angle of View | Horizontal Viewing Angle: (Thermal camera) 90° (Visual camera) 117.8° , Vertical Viewing Angle: (Thermal camera) 65.4° (Visual camera) 70.4° |
| IR Distance | 15m/49ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
