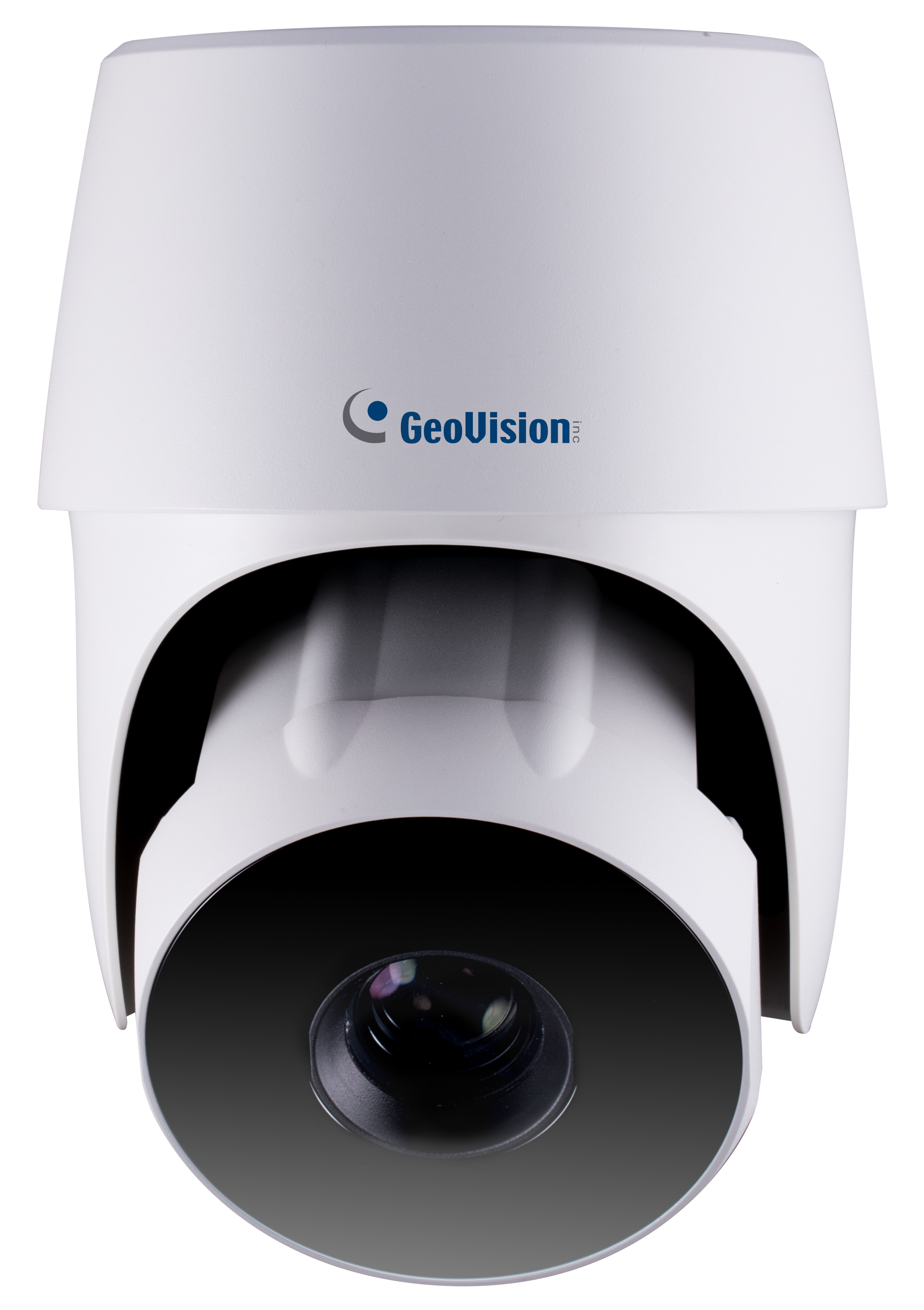

Geovision GV-SD2733-IR 2 Megapixel Network IR Outdoor PTZ Camera, 30x Lens

Model No
GV-SD2733-IR
$1,599.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.1 lux
  • Dual streams from H.265, H264 or MJPEG
  • Up to 50 fps at 1920 x 1080
  • 30x optical zoom and 32x digital zoom

The Geovision 84-SD27330-0010 2 Megapixel Network IR Outdoor PTZ Camera is designed for high-performance surveillance in various environments. With its powerful 30x optical zoom and advanced night vision capabilities, this camera ensures crisp, detailed images at any time of day. Its weather-resistant design and extensive pan/tilt capabilities make it ideal for extensive monitoring, while robust features like two-way audio and intelligent IR enhance its versatility and usability.

Geovision 84-SD27330-0010 Camera Features

  • 1/3" CMOS Sensor: Provides exceptional low-light performance, enabling clear images in challenging lighting conditions.
  • Min. Illumination: Achieves visibility in dark environments with a minimum illumination of just 0.1 lux.
  • Dual Streaming: Supports H.265, H.264, or MJPEG for flexible, high-quality video transmission.
  • High Frame Rate: Captures video at up to 50 fps at 1920 x 1080 resolution for fluid movements and details.
  • 30x Optical Zoom: Allows for closer inspection of distant objects without losing quality.
  • Intelligent IR: The camera automatically adjusts IR output to enhance night-time visibility, ensuring scenes are illuminated without overexposure.
  • IR Distance: Equipped with IR LEDs for up to 250 m (820 ft) range, ensuring comprehensive coverage in darkness.
  • Day/Night Function: Features a removable IR-cut filter for seamless transition between day and night monitoring.
  • Wide Dynamic Range Pro: Captures details in both bright and dark areas, perfect for high-contrast scenes.
  • Vandal Resistance: IK10-rated metal casing provides protection against impacts and tampering.
  • Ingress Protection: IP66 rated to withstand harsh weather conditions, making it reliable for outdoor use.
  • Temperature Tolerance: Operates effectively in extreme temperatures, from ?40°C to 70°C (?40°F to 158°F).
  • Two-Way Audio: Enables communication between the camera and monitoring system for enhanced interactivity.
  • Built-in Micro SD Card Slot: Offers local storage options for recorded footage with support for SD/SDHC/SDXC.
  • Power Options: Flexible power options include DC 24V, AC 24V, and High PoE (PoE++, 90 W).
  • Sensor Inputs: Four sensor inputs and one digital alarm output for comprehensive integration with security systems.
  • Endless Pan: 360° endless panning capabilities allow for continuous monitoring without repositioning.
  • Wide Tilt Range: An extensive tilt range of -20° to 200° enables coverage of a wide area from top to bottom.
  • Fast PTZ Speed: Panning speeds of up to 360°/sec and tilting speeds of 400°/sec for quick tracking of moving subjects.
  • Programmable PTZ Functions: Supports various PTZ movement presets including sequences, auto pans, and tours programmable by schedule.
  • Calibration: Offers both auto and manual PTZ calibration to ensure accuracy in tracking.
  • Auto Focus: Maintains clarity and sharpness by automatically adjusting focus as needed.
  • Noise Reduction: 3D noise reduction technology enhances the clarity of images in low-light conditions.
  • Motion Detection: Built-in motion detection to trigger alerts and recordings automatically.
  • Privacy Mask: Feature to obscure certain areas of the camera's view as needed for privacy compliance.
  • Multi-language Support: Provides a user-friendly web interface available in 31 languages.

Detailed Specifications for Geovision 84-SD27330-0010

Camera Type2 Megapixel Network IR Outdoor PTZ
Lens30x Optical Zoom, 32x Digital Zoom
Resolution1920 x 1080
Frame RateUp to 50 fps
Night VisionEffective IR distance up to 250 m (820 ft)
Sensor1/3" Progressive Scan Low Lux CMOS
IlluminationMinimum 0.1 Lux
Weather ProofIP66 Rated
Vandal ResistanceIK10 Rated
Operating Temperature-40°C to 70°C (-40°F to 158°F)
Power SupplyDC 24V / AC 24V / High PoE (PoE++, 90 W)
AudioTwo-way audio function
StorageMicro SD Card Slot (Class 10)
PTZ SpeedPanning up to 360°/sec, Tilt at 400°/sec
Control FeaturesPreset, Sequence, Auto Pan, Cruise, Tour
SKU  84-SD27330-0010
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Geovision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Mount Type  Ceiling
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  24vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Automatic
Dimensions (W x H)  Ø 201.7 x 293.2 mm (7.94” x 11.54”)
Electronic Shutter    1/6 ~ 1/30000 sec
Image Device    1/3" progressive scan low lux CMOS
IR LEDs  4
Minimum Scene Illumination  Color: 0.5 Lux at F/1.6, B/W: 0.1 Lux at F/1.6, IR ON: 0 Lux
Operating Humidity    10% ~ 90% (non‐condensing)
Operating Temperature    ‐40°C ~ 70°C (‐40°F ~ 158°F)
OSD Menu    Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian/ Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Power Consumption  85 W
Protocols  DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, 3GPP/ISMA, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP, Multicast
S/N Ratio  50 dB (AGC Off)
Weatherproof    IP66
Digital Noise Reduction    3D
Automatic White Balance    Auto / Manual (2800 ~ 8500K)
IR Distance  250m/820ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
