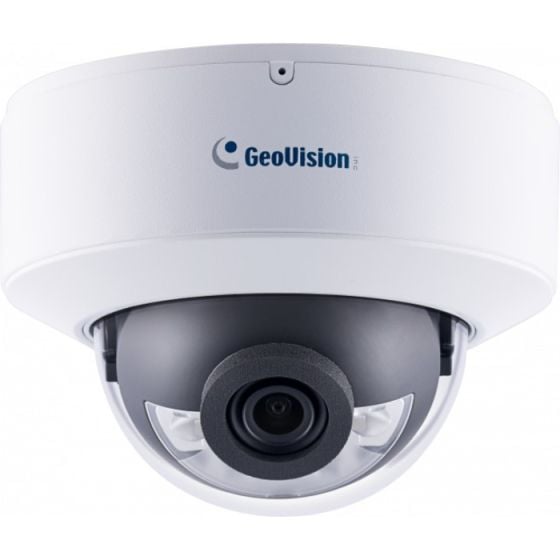

Geovision GV-GDRN4800-2F 4 Megapixel Network IP AI-ISP White LED WDR Pro Mini Fixed Rugged Dome Camera with 2.8mm Lens
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/1.79" progressive scan CMOS sensor
- Triple streams from H.265, H.264 or MJPEG
- Min. illumination at 0.0001 lux
- Up to 30 fps at 2688 x 1520
GV-GDRN4800-2F is a mini fixed rugged IP dome camera equipped with AI-ISP technology and smart white LEDs for full color surveillance, even in challenging lighting conditions. The camera combines H.265 compression, PoE support, and rugged IP67/IK10 protection for reliable operation in demanding environments.
Empowered by deep learning algorithms, its AI technology distinguishes humans and vehicles from other moving objects. When integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, event playback, and more.
The AI-ISP (Artificial Intelligence Image Signal Processor) enhances image quality in low-light scenes by delivering more detail, reducing noise, and minimizing smearing issues. Optimized for environments with at least minimal ambient light—such as moonlit outdoor areas—the camera delivers superior results in outdoor installations.
Features
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/1.79" progressive scan CMOS sensor
- Triple streams from H.265, H.264 or MJPEG
- Min. illumination at 0.0001 lux
- Up to 30 fps at 2688 x 1520
- AI-ISP for superior noise reduction and vivid color images, day and night
- Smart white LED distance up to 20 m (65 ft)
- Wide Dynamic Range Pro (WDR Pro)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in microphone
- Built-in microSD card slot (SD / SDHC / SDXC) for local storage
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Smart settings (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection)
- Motion detection
- Text overlay
- Privacy mask
- 20 languages supported
- ONVIF (Profile G, S, T, M) conformant
SKU  | 84-GRN4800-2F10 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Geovision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Automatic, Manual |
| Dimensions (W x H) | Ø 119 x 87.8 mm (Ø 4.7” x 3.46”) |
| Electronic Shutter | Automatic / Manual (1/3 ~ 1/100000 sec) |
| Image Device | 1/1.79" progressive scan CMOS |
| Minimum Scene Illumination | Color 0.0001 Lux (F1.0, AGC ON) B/W N/A LED On 0 Lux |
| Operating Humidity | 0 ~ 95% (no condensation) |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Power Consumption | 7 W |
| Protocols | 802.1X authentication (EAP-TLS, EAP-MD5), API, DDNS, DHCP, FTP, HTTP, HTTP POST, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| S/N Ratio | 50 dB |
| Weatherproof | IP67 |
| Angle of View | Horizontal 112° Vertical 61° Diagonal 132° |
| Automatic White Balance | Automatic, Manual |
| IR Distance | 20m/65ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
84-GRN4800-2F10-Specsheet
