Geovision GV-GPH2800 AI 2 Megapixel H.265 Super Low Lux WDR Pro IP Pinhole Camera, 2.8mm Lens

SKU
84-GPH2800-0010
Model No
GV-GPH2800
$177.60
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8" progressive scan CMOS sensor
  • Minimum illumination at 0.05 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080

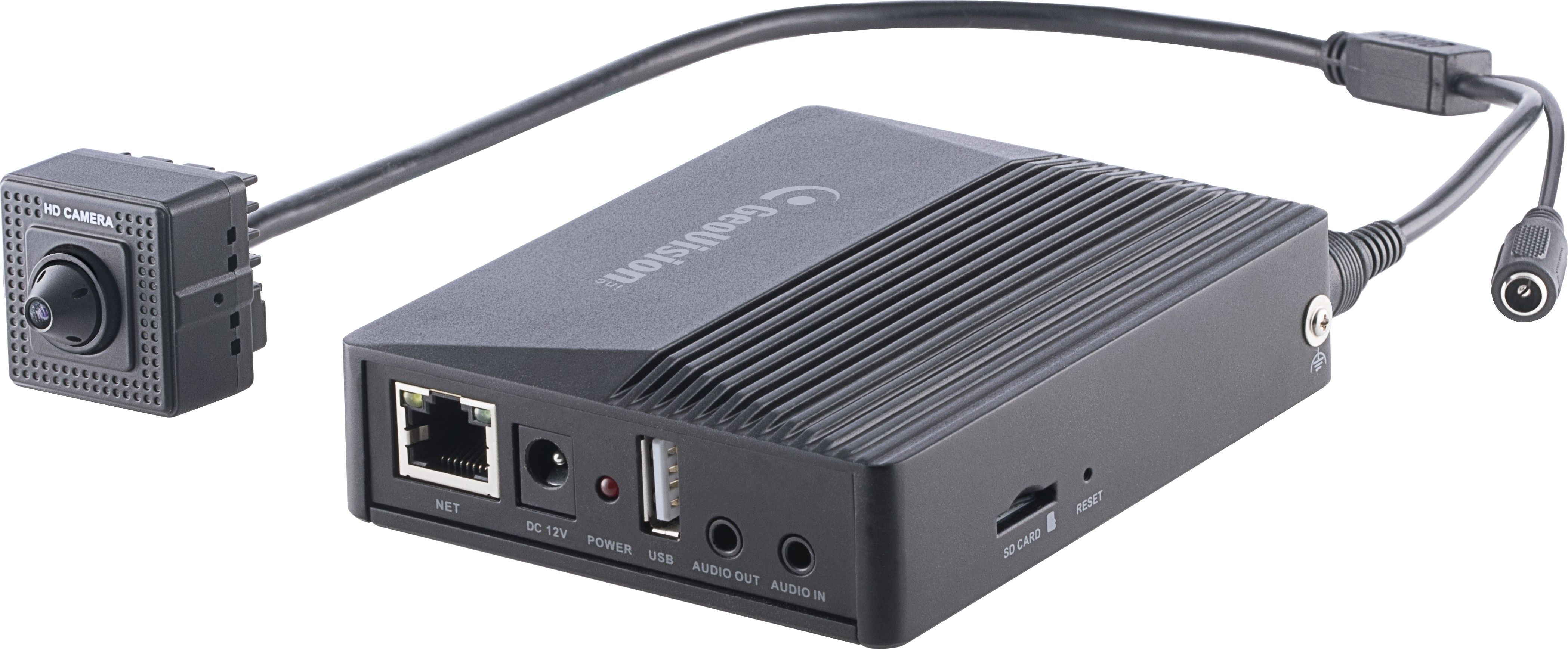

GV-GPH2800 pinhole camera is designed for discreet surveillance, perfect for locations with limited space. It features a compact camera lens suitable for installations behind ATM panels and in other covert settings. Equipped with advanced AI technology, it can distinguish between humans and vehicles, ensuring only relevant alerts are triggered. With superior image quality provided by its super low lux CMOS sensor and wide dynamic range capabilities, this camera is ideal for safeguarding banks, hotels, and offices.

Geovision 84-GPH2800-0010 GV-GPH2800 AI Camera Features

  • AI deep learning: AI Perimeter Protection & Classification enhances security by accurately identifying human and vehicle movements.
  • 1/2.8" progressive scan CMOS sensor: Ensures high image resolution and clarity.
  • Minimum illumination at 0.05 lux: Provides clear images even in low-light environments.
  • Triple streams from H.265, H.264 and MJPEG: Flexibility in video formats to suit different bandwidths and storage options.
  • Up to 30 fps at 1920 x 1080: Smooth and reliable video playback.
  • Day and night function (electronic): Automatic adjustment for varying light conditions.
  • Built-in micro SD card slot: Facilitates local storage (SD/SDHC/SDXC up to Class 10).
  • Two-way audio capable: Enables communication through the camera.

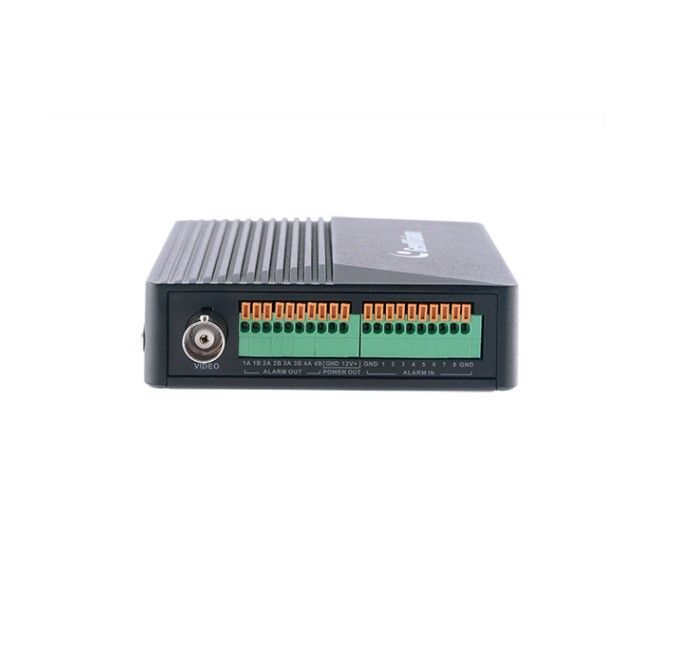

  • Eight sensor inputs and four alarm outputs: Connect additional security devices for enhanced monitoring.
  • DC 12V / PoE (IEEE 802.3af): Flexible power options for easy installation.
  • Wide Dynamic Range Pro (WDR Pro): Improves image quality in high-contrast lighting.
  • Defog: Restores visibility in foggy conditions.
  • 3D noise reduction: Ensures clear video in low-light settings.
  • Motion detection: Alerts you to potential threats by tracking movement.
  • AI analytics: Offers features like Object Abandoned / Missing, Line Crossing, Region Intrusion, and more for advanced monitoring.
  • Privacy mask: Secure sensitive areas by masking them in the video feed.
  • Text overlay: Custom labels can be added to video for better context.
  • IP address filtering: Enhances security by limiting access control.
  • 12 languages supported: User-friendly interface for diverse users.
  • ONVIF (Profile G, S, T) conformant: Ensures compatibility with a wide range of network video products.

Geovision 84-GPH2800-0010 GV-GPH2800 Detailed Specifications

Camera TypeIP Pinhole Camera
Sensor1/2.8" Progressive scan CMOS
Resolution1920 x 1080
Minimum Illumination0.05 lux
StreamingH.265, H.264, MJPEG
Frame RateUp to 30 fps
Power SupplyDC 12V / PoE (IEEE 802.3af)
AudioTwo-way audio
Alarm Inputs/Outputs8 Inputs / 4 Outputs
StorageMicro SD card slot (Class 10 compatible)
WDRWDR Pro
AI FeaturesPerimeter Protection, Classification
Privacy MaskingYes
Languages Supported12
ONVIF ComplianceProfile G, S, T
SKU  84-GPH2800-0010
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Geovision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Automatic
Dimensions (W x H)  31.6 x 30.4 x 30.4 mm (1.24" x 1.20" x 1.20")
Image Device    1/2.8" progressive scan CMOS
Minimum Scene Illumination  0.05 Lux (F2.2, AGC ON)
Operating Humidity    0% to 95% (no condensation)
Operating Temperature    -30 °C ~60 °C (23 °F ~ 122 °F)
Power Consumption  5.5 W
Protocols  UDP, IPv4, IPv6, DHCP, NTP, R TSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, QoS, ONVIF
S/N Ratio  52 dB
Digital Noise Reduction    3D noise reduction
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
