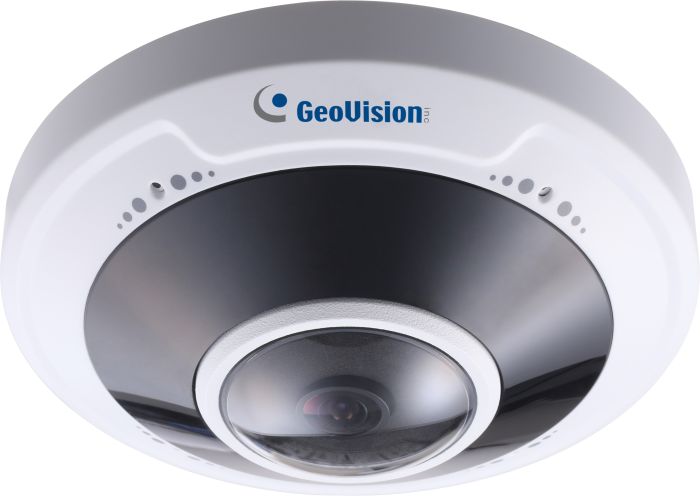

Geovision GV-FER5702 5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera with 1.4mm Lens

SKU
84-FER572W-0010
Model No
GV-FER5702
$392.11
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.8" progressive scan CMOS sensor
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 2592 × 1944
  • Wide Dynamic Range Pro (WDR Pro)
  • Intelligent IR

GV-FER5702 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 and IK10 standards and can be powered through PoE. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. It is also equipped with a built-in micro SD card slot for local storage.

Geovision GV-FER5702 Camera Features

  • 1/2.8" Progressive Scan CMOS Sensor: Delivers superior image quality for clear video capture in various lighting conditions.
  • Triple Streams (H.265, H.264, MJPEG): Supports multiple compression formats, ensuring compatibility and flexibility in various network environments.
  • Up to 30 fps at 2592 - 1944: Records high-resolution footage smoothly, providing critical detail and clarity.
  • Wide Dynamic Range Pro (WDR Pro): Effectively handles scenes with extreme lighting variances, ensuring details are visible in both bright and dark areas.
  • Intelligent IR: Automatically adjusts infrared lighting based on the scene, ensuring effective night-time monitoring.
  • Day and Night Function: Enhanced visibility with a removable IR-cut filter for improved performance in low-light conditions.
  • Vandal Resistance (IK10): Built to withstand harsh environments, protecting the camera from impacts and vandalism.
  • Ingress Protection (IP66): Weatherproof design allows the camera to operate in outdoor environments without damage from rain or dust.
  • Built-in Microphone: Enables audio monitoring along with video for comprehensive surveillance capabilities.
  • Local Storage: Supports micro SD card (SD / SDHC / SDXC / UHS-I, Class 10) for reliable, on-site data storage.
  • 2D / 3D Noise Reduction: Enhances video clarity by reducing noise in challenging conditions, improving overall image quality.
  • Two-Way Audio: Facilitates real-time communication through the camera, enhancing interaction in monitored areas.
  • Smart Streaming: Optimizes streaming data usage without sacrificing image quality, ensuring efficient bandwidth consumption.
  • Tampering Alarm: Alerts users when the camera is moved or obscured, ensuring accountability and security.
  • Virtual PTZ Function: Allows for digital panning, tilting, and zooming without the need for mechanical movement.
  • Privacy Mask: Protects sensitive areas from being recorded, offering privacy where needed.
  • Text Overlay: Ability to display critical information over the video feed for better context and documentation.
  • Multi-Language Support: 12 languages available on the web interface for easy accessibility and use globally.
  • ONVIF Conformance: Ensures compatibility with various third-party devices and software, expanding integration possibilities.

Geovision GV-FER5702 Detailed Specifications

ModelGV-FER5702
Sensor Type1/2.8" Progressive Scan CMOS
Resolution5 MP
Video CodecH.265, H.264, MJPEG
Frame RateUp to 30 fps at 2592 - 1944
Wide Dynamic RangeWDR Pro
IR FunctionalityIntelligent IR, Day/Night Mode
Ingress ProtectionIP66
Vandal ResistanceIK10
MicrophoneYes
Storage SupportMicro SD (SD/SDHC/SDXC/UHS-I, Class 10)
Power SupplyDC 12V / PoE (IEEE 802.3af)
SKU  84-FER572W-0010
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Geovision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Fixed
Lens Size    1.4mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Ø 125x 44 mm (Ø 4.9” x 1.7”)
Electronic Shutter    Auto / Manual (1 ~ 1/100000s)
Image Device    1/2.8” progressive scan CMOS
IR LEDs  3
Minimum Scene Illumination  0.01 Lux (F2.0, AGC ON)
Operating Humidity    0% ~ 95% (no condensation)
Operating Temperature    -30⁰C ~ 60⁰C (-22°F ~ 140°F)
Power Consumption  8.5W
Protocols  802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, G, T)
S/N Ratio  55 dB
Weatherproof    IP66
Digital Noise Reduction    3D
Automatic White Balance    Auto / Manual (2800K ~ 8500K)
IR Distance  20m/65ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
