Geovision GV-EBD8813 AI 8 Megapixel H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome Camera

SKU
84-EBD881W-3010
Model No
GV-EBD8813
$435.18
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8" progressive scan CMOS sensor
  • Triple streams from H.265, H.264 or MJPEG
  • Min. illumination at 0.003 lux
  • Up to 20 fps at 3840 x 2160

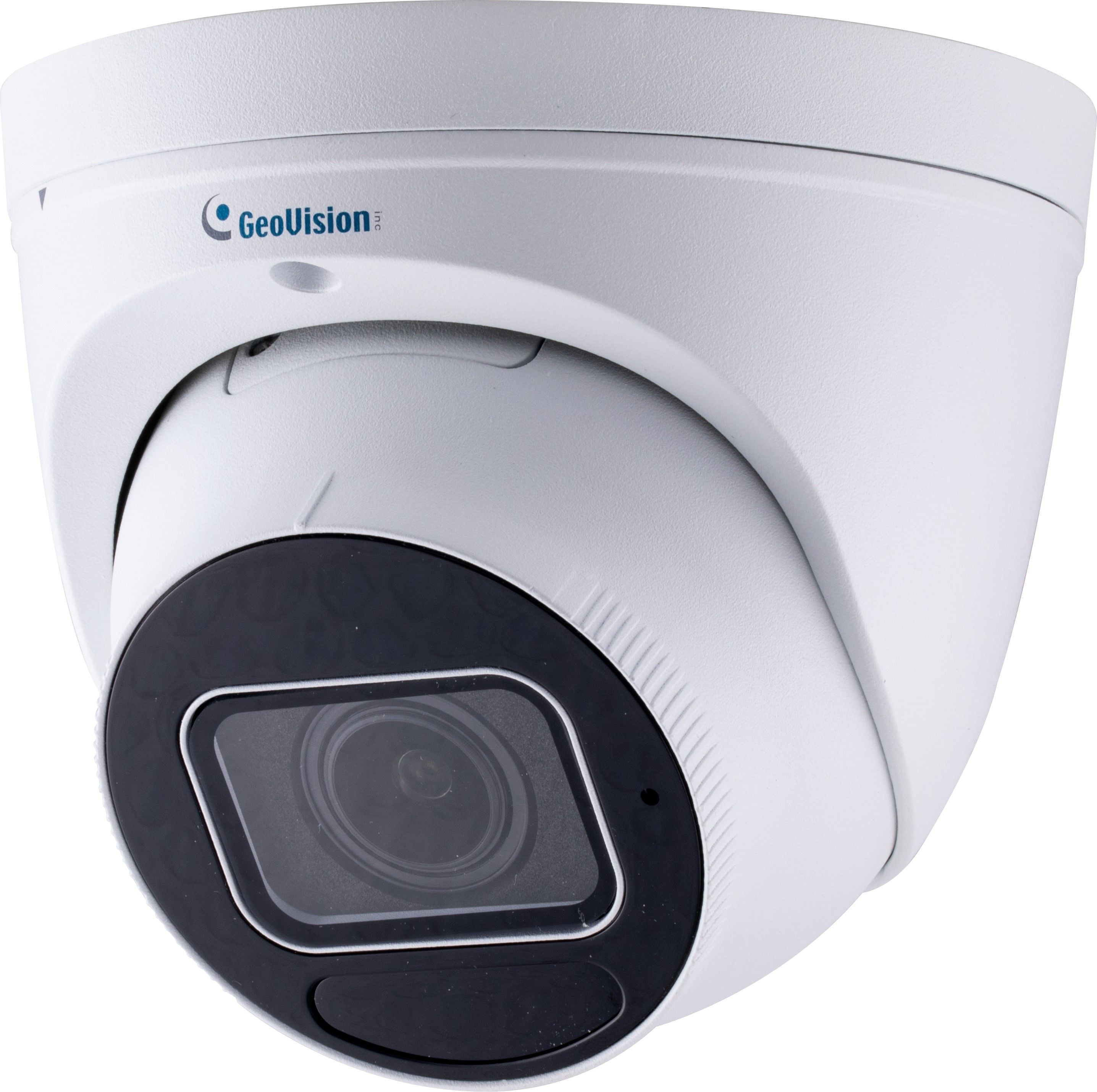

The Geovision GV-EBD8813 AI Eyeball Dome IP Camera is designed for advanced outdoor surveillance with cutting-edge AI technology. This high-performance 8 Megapixel camera features H.265 codec for efficient video compression, ensuring quality images while minimizing bandwidth. With its robust IK10 and IP67 ratings, this camera is both vandal-resistant and weatherproof, making it perfect for any environment. Equipped with smart analytics, it differentiates human and vehicle motion, providing enhanced security and proactive alerts all while being powered via PoE for easy installation.

Geovision GV-EBD8813 AI Camera Features

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle) enhances security with smart alerts.
  • 1/2.8" progressive scan CMOS sensor: Provides high-resolution images for detailed surveillance.
  • Triple streams: Choose between H.265, H.264, or MJPEG formats for flexible video management.
  • Min. illumination: Operates at 0.003 lux, ensuring clarity in low-light conditions.
  • 20 fps at 3840 x 2160: Smooth video playback ensures no crucial moment goes unnoticed.
  • Intelligent IR: Adjusts to ambient light conditions for optimal nighttime visibility.
  • Day and Night function: Removable IR-cut filter allows seamless transition between day and night.
  • Motorized varifocal lens: Remote focus and zoom adjustments enable versatile coverage.
  • 3-axis mechanism: Allows for pan, tilt, and rotate adjustments for precise positioning.
  • IR distance: Up to 40 m (130 ft) for extensive night vision capability.
  • Ingress protection (IP67): Protects against dust and water for reliable outdoor performance.
  • Vandal resistance: IK10-rated metal casing defends against physical damage.
  • Power options: Supports DC 12V and PoE (IEEE 802.3af) for easy installation.
  • Built-in micro SD card slot: Supports local storage for recorded footage (SD/SDHC/SDXC/UHS-I).
  • Built-in microphone: Added audio capture enhances surveillance capabilities.
  • Wide Dynamic Range Pro (WDR Pro): Optimizes image quality in challenging lighting conditions.
  • AI analytics: Offers features such as Intrusion, Line Crossing, and Face Detection for comprehensive monitoring.
  • 3D noise reduction: Minimizes noise in video to deliver clear images.
  • Motion detection: Alerts users to movement within the monitored area.
  • Tampering alarm: Notifies users if the camera's view is obstructed or its position is altered.
  • Text overlay: Adds context to video feeds with customizable text options.
  • Privacy mask: Protects sensitive areas by obscuring them in feeds.
  • Multilingual support: 12 languages are supported, ensuring user accessibility.
  • ONVIF compliance: Conforms to Profile G, S, T, M, ensuring compatibility with other devices.

Geovision GV-EBD8813 Detailed Specifications

ModelGV-EBD8813
Sensor1/2.8" Progressive Scan CMOS
Max Resolution3840 x 2160
Video CompressionH.265, H.264, MJPEG
Min Illumination0.003 Lux
IR DistanceUp to 40 m (130 ft)
Power SupplyDC 12V / PoE (IEEE 802.3af)
WeatherproofIP67
Vandal ResistantIK10
AudioBuilt-in Microphone
StorageMicro SD card slot (SD/SDHC/SDXC/UHS-I)
Intelligent FeaturesAI Perimeter Protection, Line Crossing, Face Detection, etc.
SKU  84-EBD881W-3010
Features  Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, UTP Balun, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Geovision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto / Manual
Dimensions (W x H)  Ø 129 x 110 mm (Ø5.1” x 4.3”)
Electronic Shutter    Auto / Manual (1 ~ 1/100000 sec)
Image Device    1/2.8" progressive scan super low lux CMOS
Minimum Scene Illumination  0.003 Lux (F1.5, AGC ON)
Operating Humidity    0% ~ 95% (no condensation)
Operating Temperature    -30°C ~ 60°C (-22°F ~ 140°F)
Power Consumption  8.16W
Protocols  802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M)
S/N Ratio  56 dB
Weatherproof    IP67
Digital Noise Reduction    3D
Automatic White Balance    Auto / Manual
IR Distance  40m/130ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
