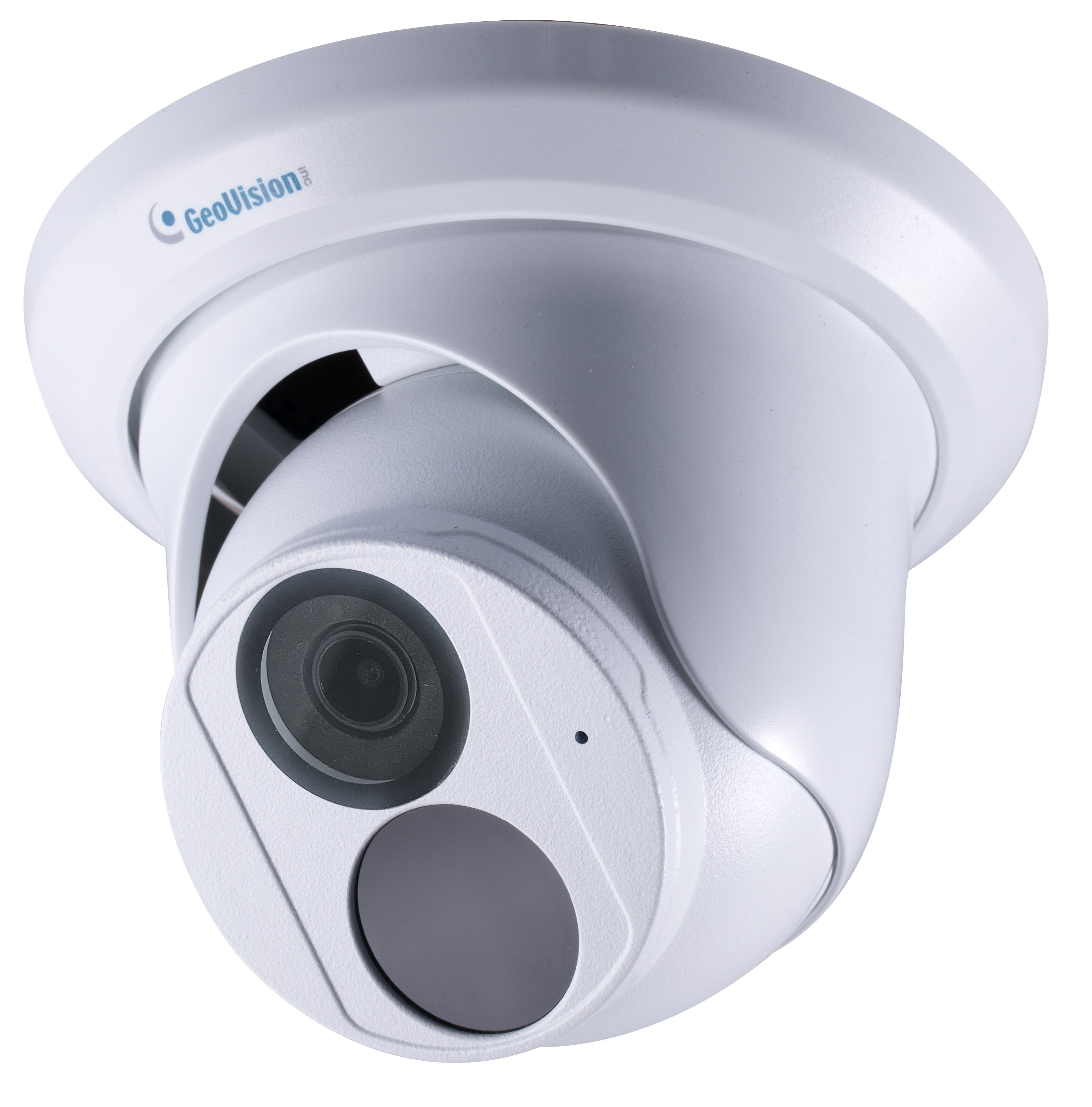

Geovision GV-EBD4704 4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera with 2.8mm Lens

SKU
84-EBD474W-0010
Model No
GV-EBD4704
$126.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" progressive scan super low lux CMOS
  • Dual streams from H.265, H.264 or MJPEG
  • Min. illumination at 0.003 lux
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR

GV-EBD4704 is an advanced outdoor IP camera designed for superior surveillance in various lighting conditions, equipped with features such as H.265 video compression for efficient bandwidth usage, advanced WDR Pro for clear imaging, and a robust IP67 rating for durability against environmental elements. Its intelligent IR technology and day/night capabilities ensure reliability, making it an ideal choice for security needs.

Geovision 84-EBD474W-0010 GV-EBD4704 Camera Features

  • 1/3" Progressive Scan Super Low Lux CMOS: Provides superior image quality even in low light conditions, enhancing visibility at night.
  • Dual Streams: Supports H.265, H.264, and MJPEG formats, allowing for user flexibility and improved video management.
  • Minimum Illumination: Exceptional performance with a minimum illumination of 0.003 lux, ensuring clear images in darkness.
  • High Frame Rate: Delivers up to 30 fps at 2688 x 1520 resolution, providing smooth video playback and clearer details.
  • Intelligent IR Technology: Automatically adjusts IR illumination for optimal performance based on the environment, enhancing nighttime surveillance.
  • IR Distance: Effective IR range of up to 30 m (100 ft), ensuring extensive coverage during low-light conditions.
  • Built-in Microphone: Captures audio along with video footage, offering comprehensive surveillance capabilities.
  • Local Storage Options: Includes micro SD card slot for SD/SDHC/SDXC/UHS-I cards, allowing for convenient local video storage.
  • Day and Night Function: Equipped with a removable IR-cut filter, enabling seamless transition between day and night surveillance.
  • 3-Axis Mechanism: Allows for pan, tilt, and rotation adjustments, providing versatile installation options and improved monitoring angles.
  • Wide Dynamic Range Pro (WDR Pro): Effectively processes scenes with varying lighting conditions, producing clearer images in high-contrast environments.
  • IP67 Ingress Protection: Weatherproof design that ensures reliable operation in adverse environmental conditions.
  • Power Options: Supports DC 12V / PoE (IEEE 802.3af) for flexible installation solutions.
  • Defog Capability: Enhances image clarity in foggy conditions, maintaining surveillance quality.
  • 3D Noise Reduction: Reduces video noise and improves overall image quality in low-light situations.
  • Motion Detection: Alerts users to movement within the camera's field of view, enhancing security responsiveness.
  • Text Overlay Feature: Allows for customizable text overlays on video streams, enabling better identification and information display.
  • Privacy Masking: Provides optional masking areas to protect privacy in monitored spaces.
  • Multi-language Support: Offers support for 12 languages, enhancing user accessibility and convenience.
  • ONVIF Compliance: Ensures compatibility with third-party devices (Profile G, S, T), allowing for integration into existing surveillance systems.

Geovision 84-EBD474W-0010 GV-EBD4704 Detailed Specifications

FeatureDetails
Image Sensor1/3" Progressive Scan CMOS
Video CompressionH.265, H.264, MJPEG
Minimum Illumination0.003 lux
Maximum Resolution2688 x 1520
Frame RateUp to 30 fps
IR DistanceUp to 30 m (100 ft)
Built-in StorageMicro SD slot (SD/SDHC/SDXC/UHS-I)
Operating Temperature-30°C to 60°C (-22°F to 140°F)
Power SupplyDC 12V / PoE (IEEE 802.3af)
Ingress Protection RatingIP67
DimensionsØ 130 mm x 100 mm
WeightApprox. 1.2 kg
SKU  84-EBD474W-0010
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Geovision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto / Manual
Dimensions (W x H)  Ø 126 x 92.7 mm (Ø 5.0” x 3.6”)
Electronic Shutter    Auto / Manual (1 ~ 1/100000s )
Image Device    1/3" progressive scan super low lux CMOS
IR LEDs  1
Minimum Scene Illumination  0.003 Lux (F1.6, AGC ON)
Operating Humidity    0% ~ 95% (no condensation)
Operating Temperature    -30°C ~ 60°C (-22°F ~ 140°F)
Power Consumption  6 W
Protocols  802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
S/N Ratio  56 dB
Weatherproof    IP67
Digital Noise Reduction    3D
Automatic White Balance    Auto / Manual
IR Distance  30m/100ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
