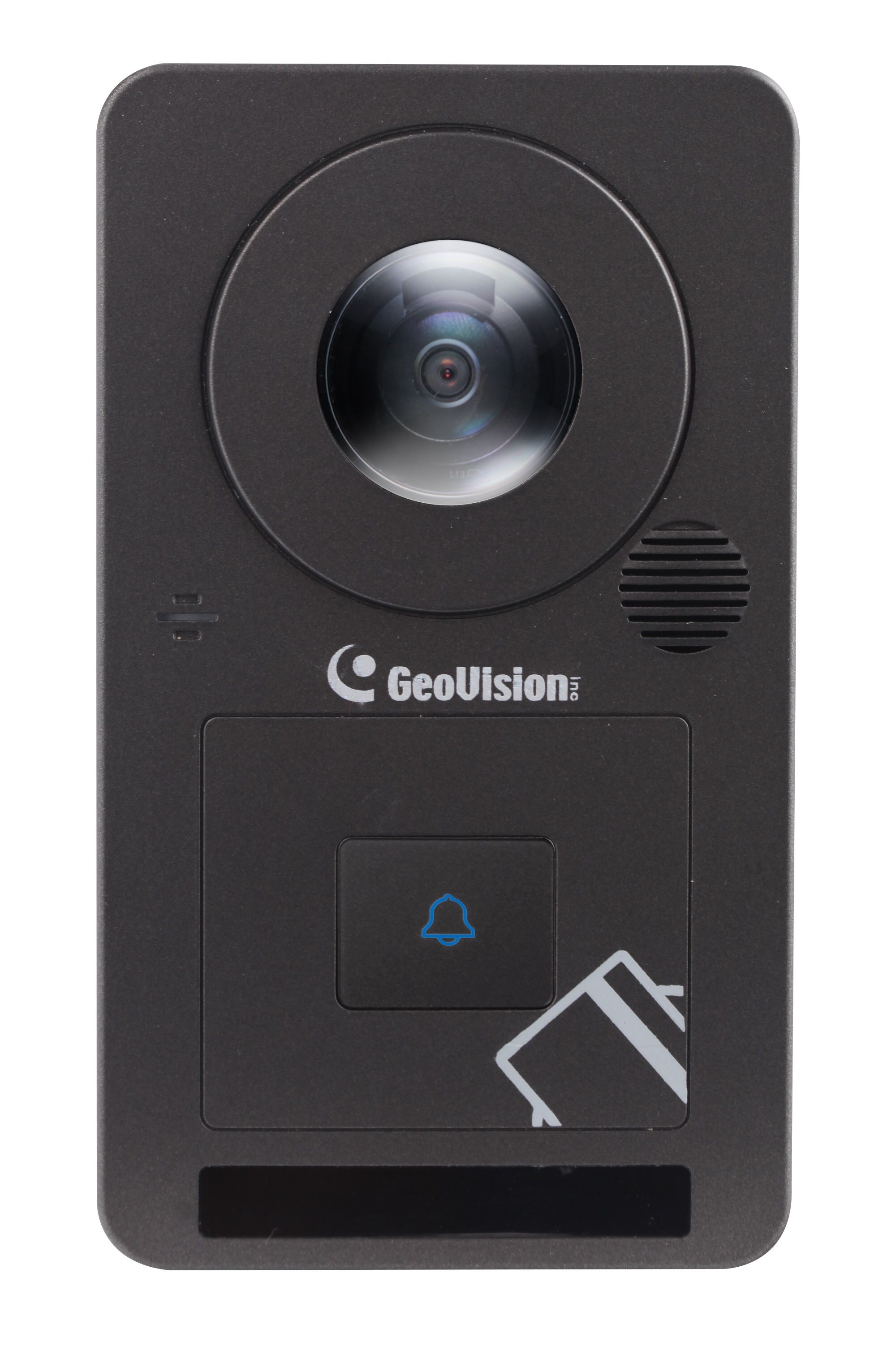

Geovision GV-CR1320 2 Megapixel IP Camera Reader, 1.7mm Lens

The Geovision 84-CR13200-0010 is an advanced 2 Megapixel IP Camera Reader designed for seamless access control in network environments. Featuring a built-in 2 MP camera with face detection capabilities, this device ensures secure entry by validating both identification cards and facial recognition. Its VoIP calling feature allows visitors to communicate with security personnel directly, enhancing overall security and convenience. The GV-CR1320 simplifies installations by combining multiple functionalities into one robust solution.

Features

Camera Features of Geovision 84-CR13200-0010

• 2 MP progressive scan super low lux CMOS: Captures high-quality images even in low light conditions.
• Minimum illumination at 0.02 lux: Ensures visibility in extremely low light environments.
• Dual streams from H.264 and MJPEG: Provides flexible streaming options for different bandwidth requirements.
• Up to 15 fps at 1920 x 1080: Smooth video performance for reliable monitoring.
• Day and night function (with removable IR-cut filter): Automatic adjustment for optimal image quality during day and night.
• Built-in IR with effective distance up to 3 m (9.84 ft): Enhances night time visibility and monitoring range.
• Ingress protection (IP66): Ensures device durability against dust and water ingress.
• 12V DC, 2.5A / PoE+ (IEEE 802.3at): Flexible power options for varied installation scenarios.
• Built-in microphone and speaker: Facilitates two-way audio communication for security checks.
• Wide Dynamic Range (WDR): Improves image quality in high-contrast lighting conditions.
• Built-in micro SD card slot: Allows for local storage of video footage.
• Provides 180° panorama view: Covers a wider area for comprehensive surveillance.

Reader Features of Geovision 84-CR13200-0010

• 13.56 MHz Reader: Compatible with Mifare DESFire, MIFARE Plus, and MIFARE Classic for versatile access control.
• Support for GV-Proximity Cards: Enhances security through GeoVision Identifier (GID) technology.
• Access by card plus face detection: Adds an additional layer of security by verifying identity.
• Network interface: Connects easily to controllers for centralized access management.
• Support for GV?WTR: Allows connectivity with third-party Wiegand controllers for expanded integration.

Access Control Features of Geovision 84-CR13200-0010

• Enabling different access control modes: Offers flexibility with Card only mode and Card and Face Mode.
• Touchpad for talk mode: Allows direct communication between visitors and security personnel.
• Receiving live view and capturing snapshots: Monitors and records activity during card presentation for added security.
• SIP/VoIP calling support: Facilitates seamless communication through internet protocol.
• 2 inputs, dry contact: Enables integration with various external devices.
• 1 relay output (30V DC, 0.5A): Supports connection to external alarm systems or door strikes.

Detailed Specifications of Geovision 84-CR13200-0010
