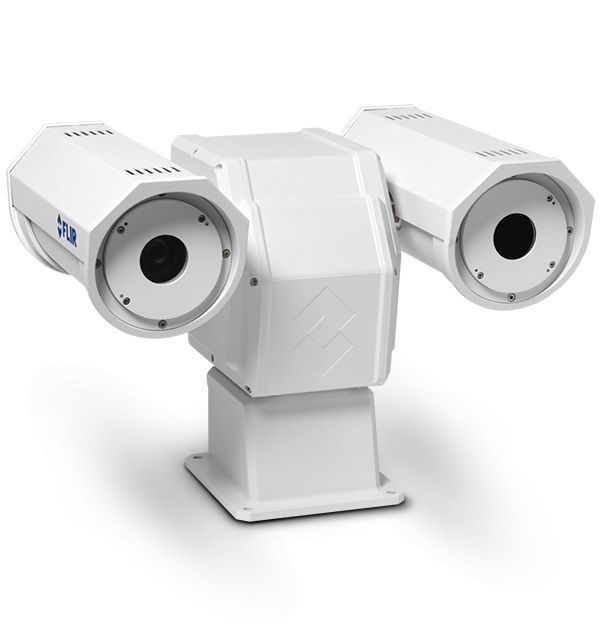

Flir 60901-1102 320 X 240 Network Outdoor Thermal Imaging Camera with 9.66mm Lens, PAL
SKU
60901-1102
Model No
60901-1102
$38,819.00
Product Highlights
- 320 × 240 thermal resolution and multiple lens options quickly detect objects of interest
- Visible light 36x continuous optical zoom offers long-range imaging
- Pan/tilt capabilities allow tracking of moving targets
- Built-in spot, area measurement, and temperature measurement analysis
- Rugged IP66 environmental rating allows use in harsh environments
Speak to an expert
The 60901-1102 from Flir is a 320 X 240 network outdoor thermal imaging camera with a 9.66mm lens, PAL. Security professionals around the world use FLIR thermal imaging to secure perimeters and critical assets, while facility operations personnel use the same technology to gather non-contact temperature measurements and condition monitoring data. The FLIR Triton A310 PT Series combines thermal and visible light imaging to offer both advanced perimeter security and automated safety monitoring. Thermal imaging reliably detects body heat and continuous temperature measurements, while the visible camera offers added visual verification and long-range viewing.
Flir 60901-1102 Perimeter Security Features
- Resolution: 320 X 240 thermal resolution - Quickly detect objects of interest for enhanced security monitoring.
- Optical Zoom: Visible light 36x continuous optical zoom - Offers long-range imaging capabilities for comprehensive surveillance.
- Tracking: Pan/tilt capabilities - Allows efficient tracking of moving targets to ensure no activity goes unnoticed.
Flir 60901-1102 Equipment Monitoring Features
- Measurement: Built-in spot and area measurement - Enables precise temperature measurement for identifying potential overheating issues.
- Durability: Rugged IP66 environmental rating - Ensures reliable operation in harsh outdoor conditions.
- Overseeing: Monitors temperature differences - Useful for overseeing critical infrastructure like substations and transformers.
Flir 60901-1102 Wide-Area Surveillance for Fire Detection Features
- Alarms: Settable temperature alarms - Customize alerts for various thresholds to ensure prompt response to potential risks.
- Notification: Quick notification capability - Instantly informs operators about equipment needing attention.
- Streaming: MPEG-4 video streaming - Facilitates live imaging and monitoring over Ethernet connections for real-time oversight.
Flir 60901-1102 Detailed Specifications
| Feature | Details |
| Thermal Resolution | 320 x 240 |
| Lens Type | 9.66mm |
| Optical Zoom | 36x Continuous |
| IP Rating | IP66 |
| Video Streaming | MPEG-4 |
SKU  | 60901-1102 |
|---|---|
| Features | Auto Gain Control, Heater & Fan, Weather Resistant |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 320 X 240 |
| Lens Type | Fixed |
| Lens Size | 9.66mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vDC, 24vAC |
| Image Pixels-Effective | 380 |
| Operating Humidity | 95% relative humidity |
| Operating Temperature | –25°C to +50°C (–13°F to +122°F) |
| Power Consumption | 195 W max |
| Protocols | Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Signal System | PAL |
| Video Output | Composite video output, PAL /NTSC compatible |
| Weatherproof | IP66 |
| Angle of View | 45° × 33.8° |
| Auto Gain Control | Yes |
| Heater & Fan | Yes |
