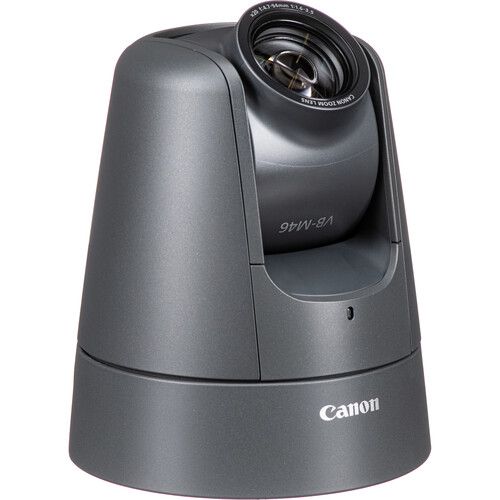

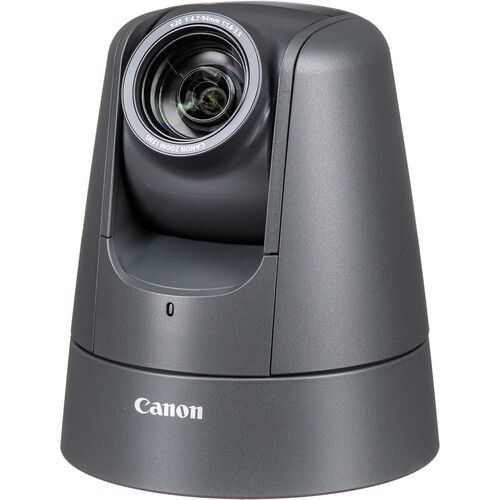

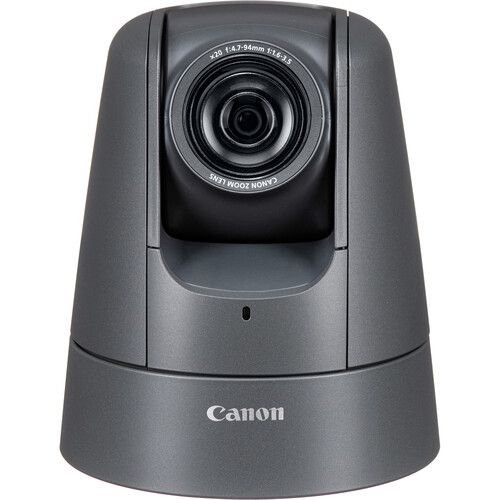

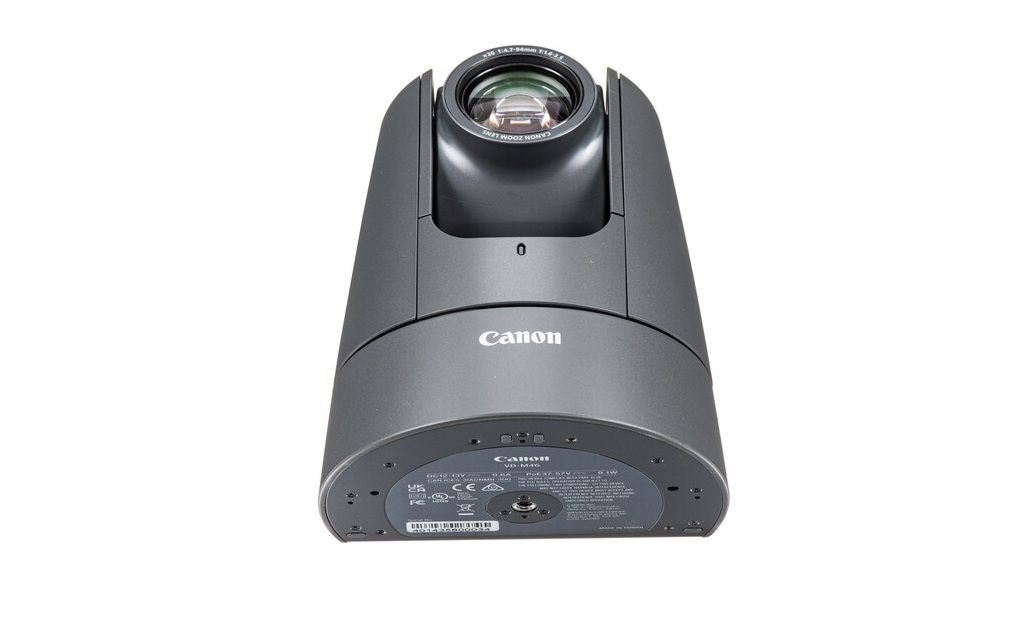

Axis 5716C002 VB-M46B 1.3 Megapixel Network Indoor PTZ Camera with 20X Lens
SKU
5716C002
Model No
VB-M46B
$2,190.67
Product Highlights
Speak to an expert
The Axis 5716C002 VB-M46B is a state-of-the-art 1.3 Megapixel Network Indoor PTZ Camera designed for exceptional surveillance performance. Featuring a powerful 20x optical zoom lens, outstanding low-light capabilities, and advanced WDR technology, this camera ensures that you capture clear, detailed images in various lighting conditions. Its flexible installation options make it a versatile choice for indoor security.
Axis VB-M46B Camera Features
- 1.3 MP IP Security Camera: High resolution ensures detailed image quality for enhanced security monitoring.
- Powerful 20x Optical Zoom: Combine with 16x digital zoom for close-ups while maintaining clarity; fast autofocus ensures quick and accurate focusing.
- Low-Light Performance: Color images at just 0.02 lux and monochrome at 0.003 lux allow for visibility during nighttime or low-light conditions, perfect for 24/7 surveillance.
- WDR Technology: Provides high visibility in scenes with varying light levels, ensuring that no detail is missed.
- Fast PTZ Capability: Quickly move to programmed positions for effective tracking of moving subjects, enhancing monitoring efficiency.
- High-Quality Video Streaming: Delivers 1.3M video at 60 fps with five simultaneous streams, including two options for H.265 or H.264, ensuring versatile streaming for various applications.
- ONVIF Compliance: Adheres to standards for interoperability, making integration with other systems straightforward.
- Color Options: Available in Titanium White and Black to complement any indoor environment.
Axis VB-M46B Detailed Specifications
| Camera Type | 1.3 Megapixel Network Indoor PTZ |
| Optical Zoom | 20x with 16x Digital Zoom |
| Low-Light Performance | Color at 0.02 lux; Mono at 0.003 lux |
| Video Resolution | 1.3M at 60 fps |
| Video Streaming | Five simultaneous streams (including H.265/H.264) |
| WDR | Yes |
| PTZ Capability | Fast, high-precision with programmable positions |
| ONVIF Compliance | Profile-S/G/T |
| Color Options | Titanium White, Black |
SKU  | 5716C002 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Zoom, Flickerless, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1.3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 20X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | (Φ x H) Φ132 x 155 mm (Φ5.20 x 6.10 in.) |
| Electronic Shutter | 1/1, 1/2, 1/4, 1/8, 1/13, 1/15, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/360, 1/500, 1/720, 1/1000, 1/1400, 1/2000, 1/3000, 1/4000, 1/6000, 1/8000, 1/10000, 1/16000 sec |
| Image Device | 1/2.8 type CMOS |
| Minimum Scene Illumination | Day Mode (color): 0.02 lux (F1.6, shutter speed 1/30 sec., 50IRE) Night Mode (monochrome): 0.003 lux (F1.6, shutter speed 1/30 sec., 50IRE) |
| Operating Humidity | 5% – 85% (without condensation) |
| Operating Temperature | -10°C – +50°C (+14°F – +122°F) |
| Angle of View | For 16:9 aspect ratios: Horizontal: 62.4° (W) – 3.3° (T) Vertical: 36.3° (W) – 1.9° (T), For 4:3 aspect ratios: Horizontal: 47.9° (W) – 2.5° (T) Vertical: 36.3° (W) – 1.9° (T) |
| Automatic White Balance | Auto/Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
