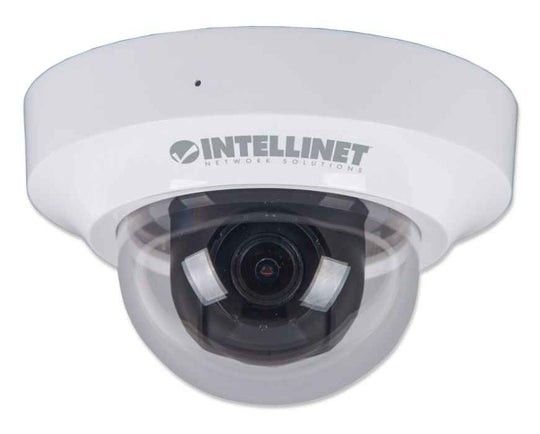

Intellinet 551441 IDC-862 HD 2 Megapixel Network Mini-Dome Camera
SKU
551441
Model No
551441
$178.95
Product Highlights
- Progressive-Scan 2-megapixel CMOS image sensor for crystal-clear images
- Supports image resolutions up to 1920 x 1080 (1080p)
- Excellent image quality with 30 fps full-motion video in all image resolutions
- Ultra-compact, less than 10 cm (4 in.) in diameter
- MicroSD memory card slot for local storage
Speak to an expert
The Intellinet IDC-862 HD Network Mini-Dome Camera is designed for discreet indoor security surveillance and comes fully equipped with state-of-the-art features that set it apart from other network cameras on the market today.
Intellinet 551441 IDC-862 Camera Features
- 2 Megapixel Resolution: Generates crystal-clear images up to 1920 x 1080 pixels for detailed and realistic video quality.
- Multi-Streaming: Supports simultaneous H.264, MPEG4, 3GPP, and Motion-JPEG formats for efficient bandwidth usage and compatibility with mobile devices.
- Ultra-Compact Design: With a diameter of less than 10 cm (4 in.), it is one of the smallest network dome cameras available, ideal for discreet surveillance.
- WDR Technology: Wide Dynamic Range allows the camera to capture video in scenes with both bright and dark areas, improving visibility.
- Power over Ethernet: Simplifies installation by providing power and data transmission over a single Ethernet cable.
- Video Storage Capability: Equipped with a MicroSD/SDHC slot for local video and image storage, providing redundancy during network outages.
- Two-Way Audio: Includes an integrated microphone for audio communication, enhancing overall surveillance capability.
- Low Light Performance: Operates in minimal light conditions with a minimum illumination of 0.2 lux.
- Flexible Adjustability: Features a 3-axis rotation for precise camera angle adjustments.
- Integrated Motion Detection: Enables event-triggered FTP/email uploads of images and videos, enhancing security responsiveness.
- Comprehensive Security Features: Supports HTTPS encryption and IP filtering to ensure data protection.
Intellinet 551441 IDC-862 Detailed Specifications
| Camera Type | Network Mini-Dome |
| Resolution | 2 Megapixel (1920 x 1080) |
| Video Compression Formats | H.264, MPEG4, Motion-JPEG, 3GPP |
| Video Frame Rate | 30 fps at all resolutions |
| Audio Capability | Two-way audio with integrated microphone |
| Minimum Illumination | 0.2 lux |
| Power Supply | IEEE 802.3af Power over Ethernet (infrared injector not included) |
| Storage Expansion | MicroSD/SDHC memory card slot |
| Dimensions | Less than 10 cm (4 in.) in diameter |
| Network Protocols | ONVIF compliant, SMB/CIFS, NFS |
| Security Features | HTTPS encryption, IP filtering, UPnP |
SKU  | 551441 |
|---|---|
| Features | Audio, Auto Gain Control, Digital Zoom, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Intellinet |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 60.6 (h) x 99 (d) mm (2.4 x 3.9 in.) |
| Electronic Shutter | 1/2 - 1/10000 sec |
| Image Device | 1/2.7" Micron Progressive Scan CMOS sensor |
| Minimum Scene Illumination | 0.2 lux at F2.0 |
| Operating Humidity | 20 – 90% RH, non-condensing |
| Operating Temperature | 0 – 50°C (32 – 122°F) |
| Power Consumption | 5.0 watts (maximum) |
| Protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP / ISMA / RTSP, Bonjour, ONVIF 2.2 |
| S/N Ratio | 39 dB (max.) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
