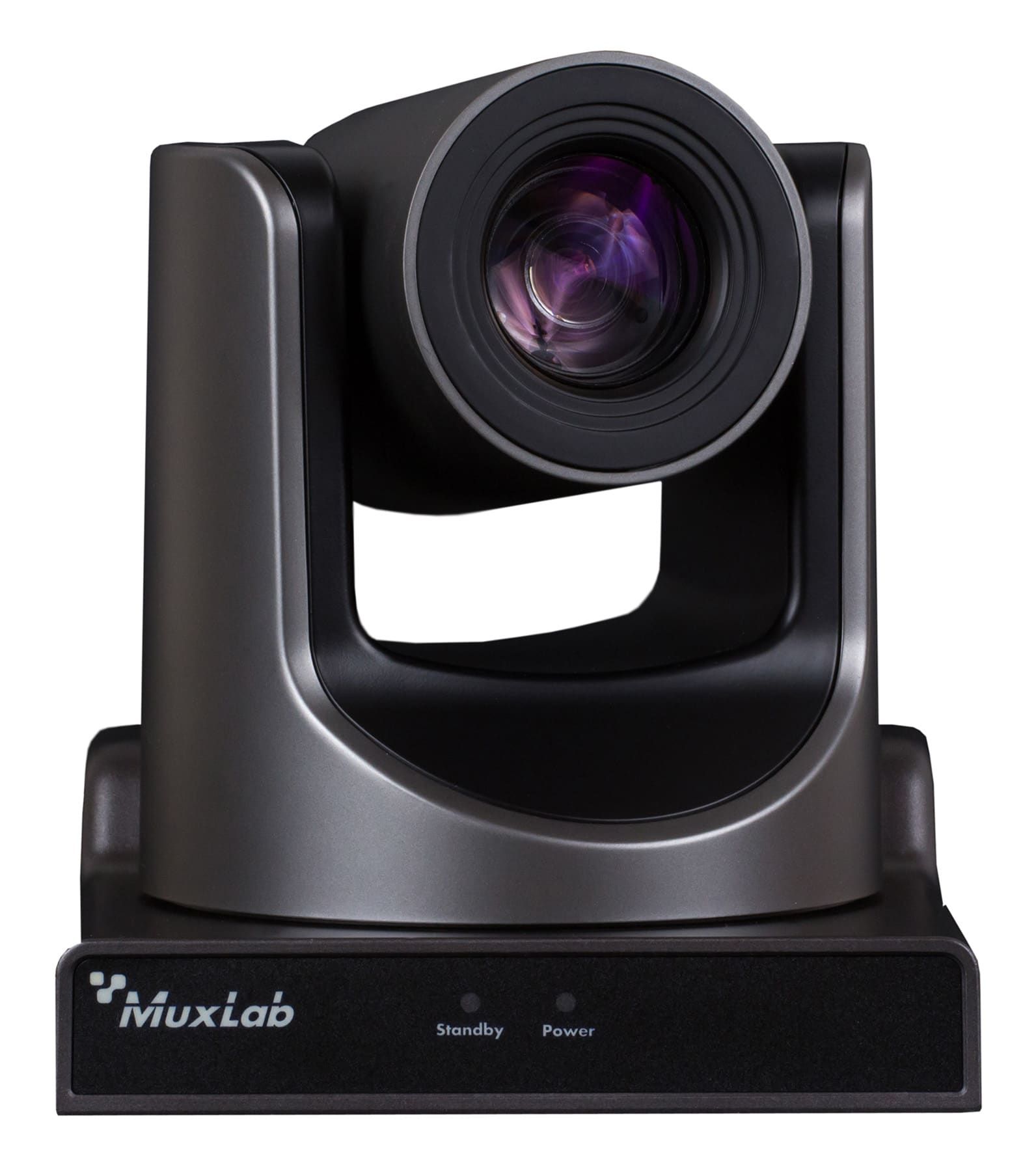

MuxLab 500932 2 Megapixel Network Pedestal PTZ Camera with 30X Lens

SKU
500932
Model No
500932
$921.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
  • Supports a Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor
  • Uses a 60.7° wide-angle high quality lens
  • Supports a 30x optical zoom, and up to 8x digital zoom
  • High SNR CMOS sensor combined with 2D 3D noise reduction algorithm, effectively reducing noise even under low light

The MuxLab 500932 2 Megapixel Network Pedestal PTZ Camera with 30X Lens is engineered for exceptional video quality with its 1080p resolution and powerful zoom capabilities. This advanced camera supports both HDMI and IP streaming, ensuring flexibility in various settings. Enhanced by features like low-light noise reduction and remote control options, it's perfect for professional monitoring and streaming applications.

MuxLab 500932 Camera Features

  • Maximum Resolution: 1920 x 1080 (Full HD) at 60Hz for crisp, clear images.
  • High-Quality Sensor: Utilizes a 1/2.7 inch, 2.07 million effective pixels CMOS sensor for superior image quality.
  • Wide-Angle Lens: Equipped with a 60.7° wide-angle lens to capture more of the scene.
  • Optical and Digital Zoom: Features a powerful 30x optical zoom and up to 8x digital zoom for precise image capture.
  • Low-Light Performance: High SNR CMOS sensor and noise reduction algorithms minimize noise in low-light environments.
  • Audio Encoding: Supports AAC audio encoding, enhancing sound quality while using less bandwidth.
  • Local Storage Support: Allows for USB disk storage and direct recording without the need for an NVR.
  • Reliable Movement: Uses a worm gear drive for accurate and reliable camera movement.
  • Remote Control: Easily controlled via RS232 and IP for convenient operation.
  • Power over Ethernet (PoE): Supports PoE for easy and efficient power management.
  • Standalone Compatibility: Works independently and is compatible with MuxLab’s Live Streaming Kits for versatile applications.

MuxLab 500932 Detailed Specifications

FeatureDetails
ModelMuxLab 500932
Resolution1920 x 1080 (Full HD)
Sensor Type1/2.7 inch CMOS sensor
Effective Pixels2.07 million
Zoom Capability30x optical zoom, 8x digital zoom
Lens Angle60.7° wide-angle
Noise Reduction2D/3D noise reduction
Audio SupportAAC encoding
Storage OptionsUSB disk local storage
Drive MechanismWorm gear drive
Remote AccessRS232 and IP control
Power SupplyPoE support
CompatibilityWorks with MuxLab Live Streaming Kits
SKU  500932
Features  Audio, Auto Gain Control, Digital Noise Reduction, Digital Zoom, ONVIF
Manufacturer  MuxLab
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Pedestal
Compression Method    H.264, H.265
Voltage  12vDC
Dimensions (W x H)  5.71” x 5.94” x 6.37” (145.2mm x 150.9mm x 161.8mm)
Electronic Shutter    1/30s to 1/10000s
Image Device    1/2.7 inch, CMOS, Effective Pixels: 2.07M
Minimum Scene Illumination  0.05 Lux @ (F1.8, AGC ON)
Operating Temperature    Operating: -10° to 40°C Storage: -40° to 60°C
Power Consumption  12W (Max)
Protocols  TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Digital Noise Reduction    2D & 3D
Angle of View    Horizontal: 60.7° to 2.28° / Vertical: 34.1° to 1.28°
AudioYes
Auto Gain Control    Yes
Digital Noise Reduction    Yes
ONVIF  Yes
Digital ZoomYes
