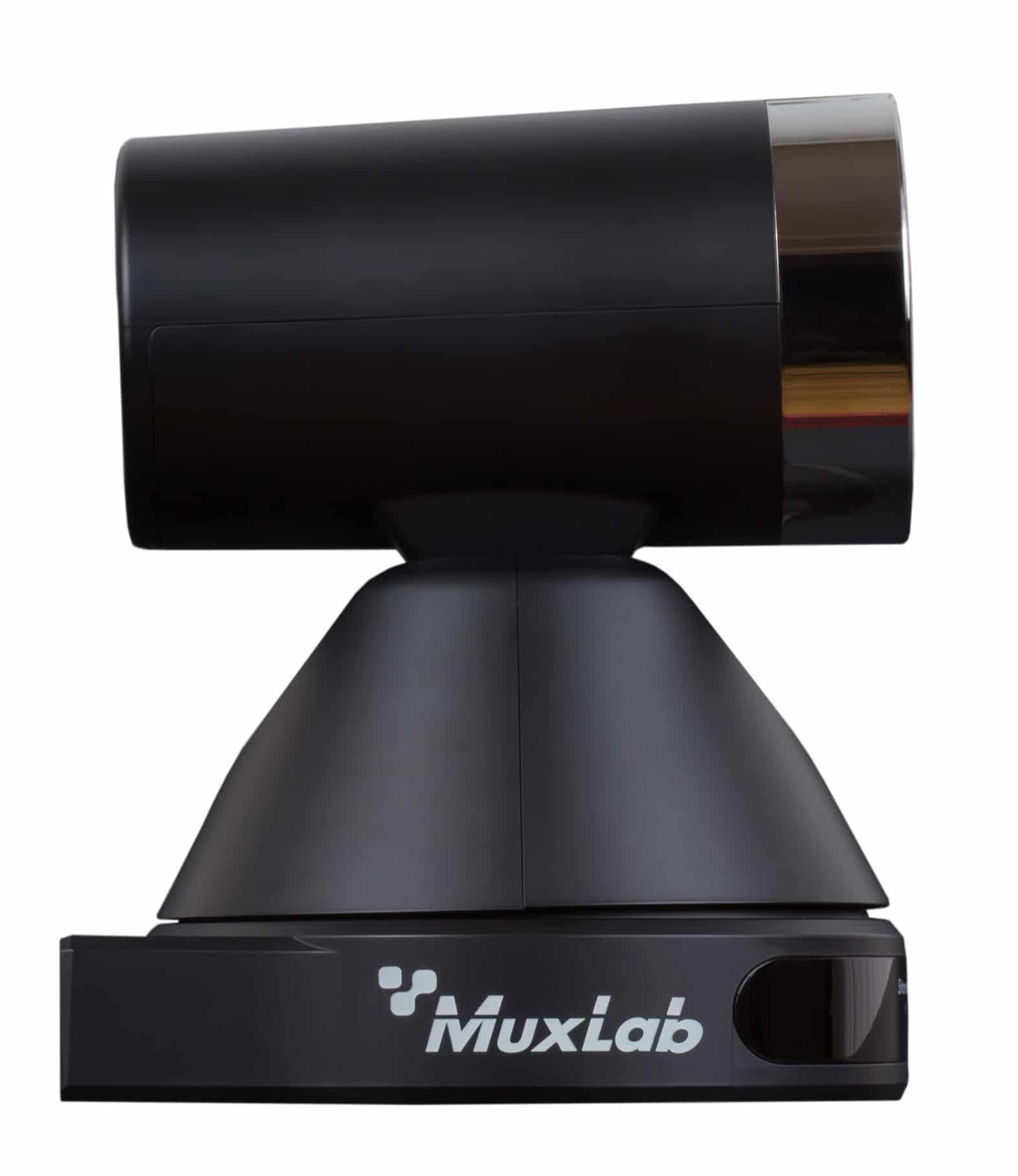

MuxLab 500791 2 Megapixel Network Pedestal PTZ Camera with 12X Lens
SKU
500791
Model No
500791
$1,105.00
Product Highlights
- Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
- Supports a Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor
- Uses a 72.5° wide-angle high quality lens
- Supports a 12x optical zoom, and up to 16x digital zoom
- High SNR CMOS sensor combined with 2D 3D noise reduction algorithm, effectively reducing noise even under low light
Speak to an expert
The MuxLab 500791 2 Megapixel Network Pedestal PTZ Camera with 12X Lens offers exceptional performance with its high-definition video capabilities and versatile control options. Ideal for various applications, this camera combines Full HD resolution, advanced zoom features, and reliable connectivity options to meet your surveillance and streaming needs.
MuxLab 500791 Camera Features
- Maximum resolution: 1920 x 1080 (Full HD) at 60Hz, delivering crisp and clear images for superior video quality.
- High-quality sensor: Equipped with a Panasonic 1/2.7 inch, 2.07 million effective pixels HD CMOS sensor, ensuring high-resolution performance.
- Wide-angle lens: Utilizes a 72.5° high-quality lens, providing a broader field of view and capturing more detail.
- Optical and digital zoom: Features 12x optical zoom and up to 16x digital zoom, allowing for detailed views even from a distance.
- Noise reduction: Built with a high SNR CMOS sensor and 2D 3D noise reduction algorithms for optimal performance in low light conditions.
- AAC audio encoding: Supports AAC audio encoding for enhanced sound quality while minimizing bandwidth usage.
- Reliable movement: Designed with a worm gear drive, ensuring accurate and dependable pan/tilt functionality.
- Remote control: Can be controlled remotely via RS232 and IP for convenient operation.
- Standalone capability: Functions as a standalone device, providing flexibility in deployment.
Detailed Specifications for MuxLab 500791
| Feature | Details |
|---|---|
| Maximum Resolution | 1920 x 1080 (Full HD) at 60Hz |
| Sensor Type | Panasonic 1/2.7 inch, 2.07 million effective pixels HD CMOS |
| Lens | 72.5° wide-angle high quality |
| Zoom Capability | 12x optical zoom, 16x digital zoom |
| Noise Reduction | High SNR CMOS with 2D 3D noise reduction |
| Audio Encoding | AAC for improved sound quality |
| Movement Mechanism | Worm gear drive for precise control |
| Control Options | Remotely via RS232 and IP |
| Device Type | Standalone operation |
SKU  | 500791 |
|---|---|
| Features | Audio, Auto Gain Control, Digital Noise Reduction, Digital Zoom, ONVIF |
| Manufacturer | MuxLab |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 12X |
| Mount Type | Pedestal |
| Compression Method | H.264, H.265 |
| Voltage | 12vDC |
| Dimensions (W x H) | 6.65” x 5.59” x 6.46” (169mm x 142mm x 164mm) |
| Electronic Shutter | 1/30s to 1/10000s |
| Image Device | 1/2.7 inch, CMOS, Effective Pixels: 2.07M |
| Minimum Scene Illumination | 0.5 Lux @ (F1.8, AGC ON |
| Operating Temperature | Operating: -10° to 40°C Storage: -40° to 60°C |
| Power Consumption | 12W (Max) |
| Protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
| Digital Noise Reduction | 2D & 3D |
| Angle of View | Horizontal: 72.5° to 6.9° / Vertical: 44.8° to 3.9° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
