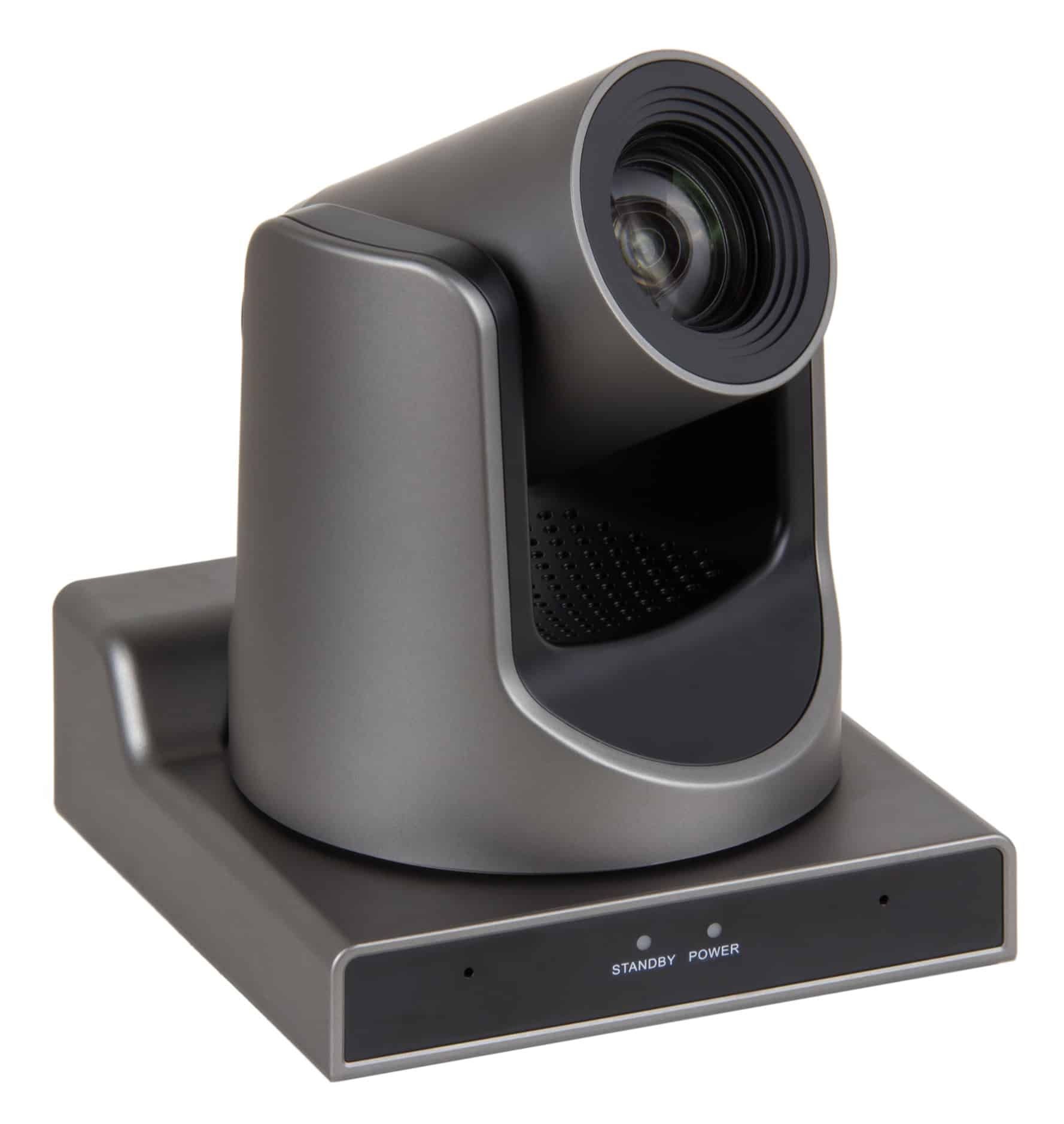

MuxLab 500791-NDI 2 Megapixel Network IP USB/NDI/IP PTZ Camera with 12X Lens
SKU
500791-NDI
Model No
500791-NDI
$1,336.00
Product Highlights
- Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
- Supports SDI, HDMI, USB 3.0 and network audio-visual output
- Built-in advanced AI algorithm that enables precise body tracking
- Supports 12x optical zoom and 72.5° horizontal field of view
- Supports Full NDI protocol
Speak to an expert
The MuxLab USB/NDI/IP PTZ Camera 12X Zoom, PoE (model: 500791-NDI) is an advanced streaming solution designed for versatile applications, including live broadcasting, conferencing, and education. With its 1080p Full HD resolution, 12x optical zoom, and AI-powered tracking capabilities, this camera delivers exceptional performance and ease of use, ensuring high-quality video capture in various settings.
Applications of MuxLab USB/NDI/IP PTZ Camera 500791-NDI
- Local AV capture: Ideal for monitoring events and presentations in real-time.
- Live streaming: Effortlessly broadcast AV content to platforms like YouTube, Facebook, and Wowza.
- Content production: Compatible with OBS and Wirecast for professional-grade content creation.
- Versatile use cases: Perfect for churches, fitness trainers, cooking classes, and more.
Key Features
- Maximum resolution: 1920 x 1080 at 60Hz, ensuring crisp and clear video quality.
- Multiple output options: SDI, HDMI, USB 3.0, and network audio-visual output for flexibility in connectivity.
- AI body tracking: Advanced algorithm that enhances tracking precision during use.
- Optical zoom capability: 12x optical zoom with a 72.5° horizontal field of view for capturing distant subjects clearly.
- Full NDI support: Enables enhanced network integration, perfect for professional environments.
- Auto-focusing technology: Ensures subjects are always in focus regardless of movement.
- Integrated microphones: Dual microphones for capturing high-quality audio alongside video.
- Cost-effective solution: Economically designed for live streaming, conferencing, and educational uses.
Specifications for MuxLab USB/NDI/IP PTZ Camera 500791-NDI
| Model | 500791-NDI |
| Resolution | 1920 x 1080 (Full HD) |
| Optical Zoom | 12x |
| Field of View | 72.5° horizontal |
| Sensor Type | 1/2.8? CMOS |
| Effective Pixels | 2.07 million |
| Aperture | F1.8 to 2.8 |
| Shutter Speed | 1/30s to 1/10000s |
| Minimum Illumination | 0.05 Lux |
| Power Supply | PoE (Power Over Ethernet) |
| Network Audio-Visual Output | Supports Full NDI |
SKU  | 500791-NDI |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, ONVIF |
| Manufacturer | MuxLab |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 12X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264 |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 169mm x 142mm x 175mm |
| Electronic Shutter | 1/30s ~ 1/10000s |
| Image Device | 1/2.8 inches, CMOS |
| Image Pixels-Effective | 2.07 Megapixels |
| Minimum Scene Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Operating Temperature | 0°C ~ 40°C |
| Power Consumption | 15W |
| Protocols | FULL NDI, NDI｜HX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT, GB/T28281 |
| S/N Ratio | ≥55dB |
| Scanning System | Progressive |
| Digital Noise Reduction | 2D, 3D digital noise reduction |
| Angle of View | 72.5° ~ 6.9° , 44.8° ~ 3.9° |
| Rotation Angle | ±170° , -30° ~ +90° |
| Back Light Compensation | Supported |
| Automatic White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| ONVIF | Yes |
