Axis 0926-001 P1245 1080p Modular Network Camera 2.8mm Lens
SKU
0926-001
Model No
P1245
$381.08
Product Highlights
- HDTV 1080p resolution
- WDR ″ "Forensic Capture
- 111° horizontal field of view
- Axis Zipstream
- Power over Ethernet
Speak to an expert

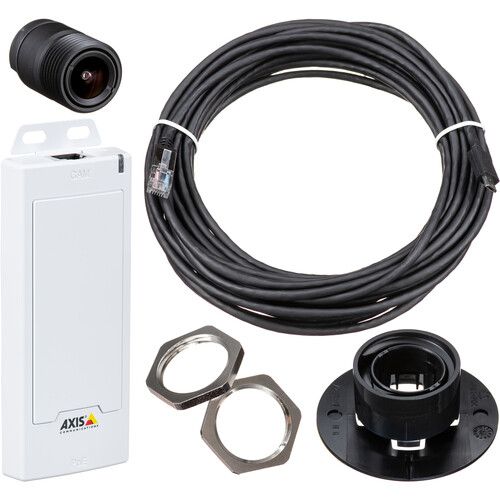

The Axis 0926-001 P1245 is a highly discreet modular network camera designed for indoor surveillance, delivering exceptional HDTV 1080p resolution. This cost-effective solution is perfect for installation in tight spaces, offering the option to flush-mount while only exposing a small part of the lens. Equipped with advanced features like WDR – Forensic Capture, this camera excels in challenging lighting conditions, making it suitable for environments like stores and ATMs. The inclusion of a mounting bracket and an 8-meter detachable cable eases installation and versatility.
Axis 0926-001 P1245 Camera Features
- HDTV 1080p resolution: Provides clear and detailed images for effective surveillance.
- WDR – Forensic Capture: Enhances image quality in high-contrast lighting situations, ensuring visibility in both bright and dim areas.
- 111° horizontal field of view: Captures a wide area, reducing the need for multiple cameras.
- Axis Zipstream: Lowers bandwidth and storage requirements while preserving important details in video.
- Power over Ethernet: Simplifies installation by allowing power and data to be delivered via a single cable.
Detailed Specifications for Axis 0926-001 P1245
| Model: | Axis 0926-001 P1245 |
| Resolution: | HDTV 1080p |
| Lens: | 2.8mm |
| Field of View: | 111° horizontal |
| WDR: | Forensic Capture |
| Zipstream: | Yes |
| Power Supply: | Power over Ethernet (PoE) |
| Cable Length: | 8 meters (26 feet) |

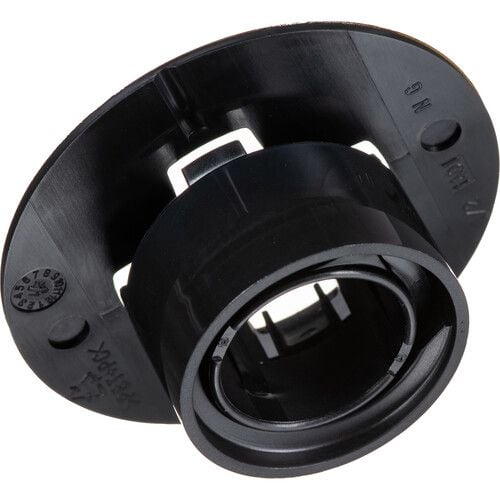

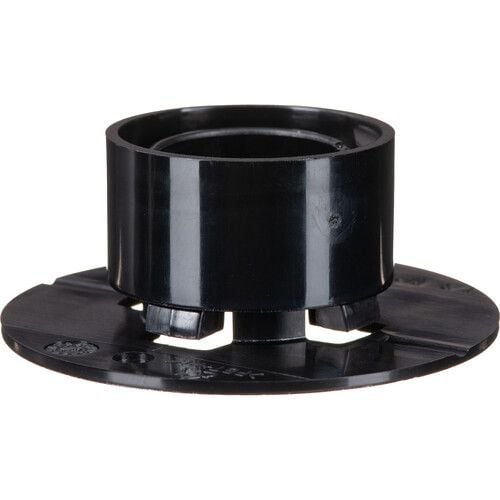

| Mounting: | Includes mounting bracket |
SKU  | 0926-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4 |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 16.5 x 46 x 109 mm (5/8 x 1 13/16 x 4 5/16 in), Sensor Unit: 29 mm (1 2/16 in) ø 20 mm (13/16in) Sensor unit cable: 8 m (26 ft) |
| Electronic Shutter | 1/32500 s to 1/25 s with 50 Hz, 1/32500 s to 1/30 s with 60 Hz |
| Image Device | 1/3” (effective) progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.22 lux |
| Operating Humidity | 10-85% RH (non-condensing) |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Power Consumption | max 4.0W, typical 2.5W |
| Protocols | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Angle of View | Horizontal: 111°, Vertical: 61° |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
4.5
Write a review
Share your thoughts with other customers
Top customer reviews
- Good service 0 people found this helpfulGood service keep customer update the order status

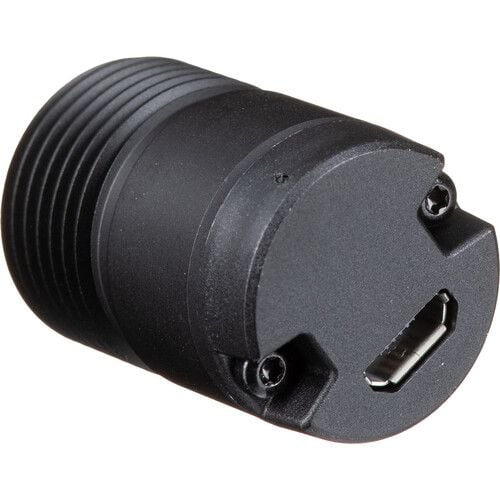

- Axis 0926-001 P1245 1080p HDTV Complete 0 people found this helpfulvery good product but there was a design fault; while attempting to unplug the mini usb cable from the back of the unit sensor, the incorporated usb socket inside the unit got disconnected and was moving. therefore the camera was practically unusable. bad manufacturing from Axis. I ordered the pinhole sensor instead
