Axis 0896-001 P1244 Network IP Mini Board Camera, 2.1 mm Lens
SKU
0896-001
Model No
P1244
$329.46
Product Highlights
- HDTV 720p and 102° horizontal field of view
- Easy and highly discreet installation in tight places
- Axis' Zipstream technology and built-in microSD card slot
- Power over Ethernet (PoE)
Speak to an expert

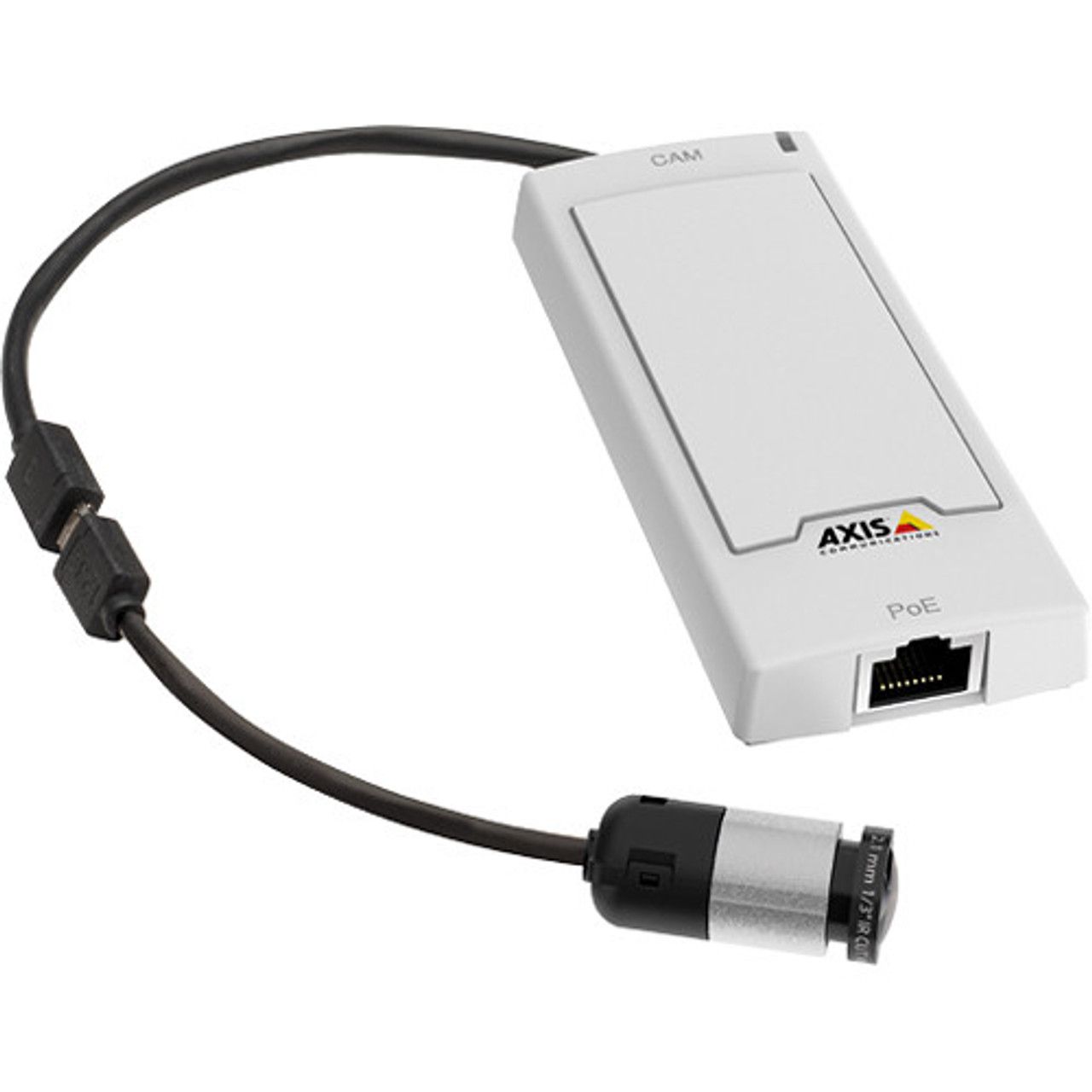

Axis P1244 is a small, cost-effective modular camera with HDTV 720p performance. The highly discreet indoor camera is ideal for use in retail stores, ATMs, and ticket/vending machines. The thumb-sized sensor unit offers a 102° horizontal field of view. It can be mounted in tight places, or in walls or ceilings with the included flush mount kit. Optional accessories enable the sensor unit to be tilted in a surface or recessed mount. The sensor unit comes with a detachable 8-m (26 ft) cable for connection to a small main unit. The main unit supports PoE, edge storage, and Zipstream technology for lower bandwidth and storage use.
Axis 0896-001 P1244 Camera Features
- HDTV Resolution: Capture clear images with 720p high-definition video quality for enhanced surveillance.
- Wide Field of View: A 102° horizontal field of view ensures extensive coverage, reducing blind spots in monitoring areas.
- Discreet Design: Its compact size allows for easy installation in tight spaces, making it ideal for sensitive environments like ATMs and retail stores.
- Zipstream Technology: Reduces bandwidth and storage usage without compromising image quality, optimizing storage costs.
- Power over Ethernet (PoE): Simplifies installation by using a single cable for both power and data, reducing wiring complexity.
Detailed Specifications for Axis 0896-001 P1244
| Camera Type | Modular Network IP Camera |
| Resolution | 720p (HDTV) |
| Field of View | 102° horizontal |
| Mounting Options | Flush mount kit included with optional accessories for tilting |
| Cable Length | 8 m (26 ft) |
| Storage | Built-in microSD card slot with edge storage capability |
| Network Connectivity | Power over Ethernet (PoE) |
| Compression Technology | Zipstream technology |
SKU  | 0896-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 16.5 x 46 x 109 mm (5/8 x 1 13/16 x 4 5/16 in) |
| Electronic Shutter | 1/24500 s to 1/6 s |
| Image Device | 1/4” (effective) progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.4 lux |
| Operating Humidity | 10-85% RH (non-condensing) |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Power Consumption | max 4.0 W, typical 2.5 W |
| Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Angle of View | Horizontal field of view: 102°, Vertical field of view: 56° |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
