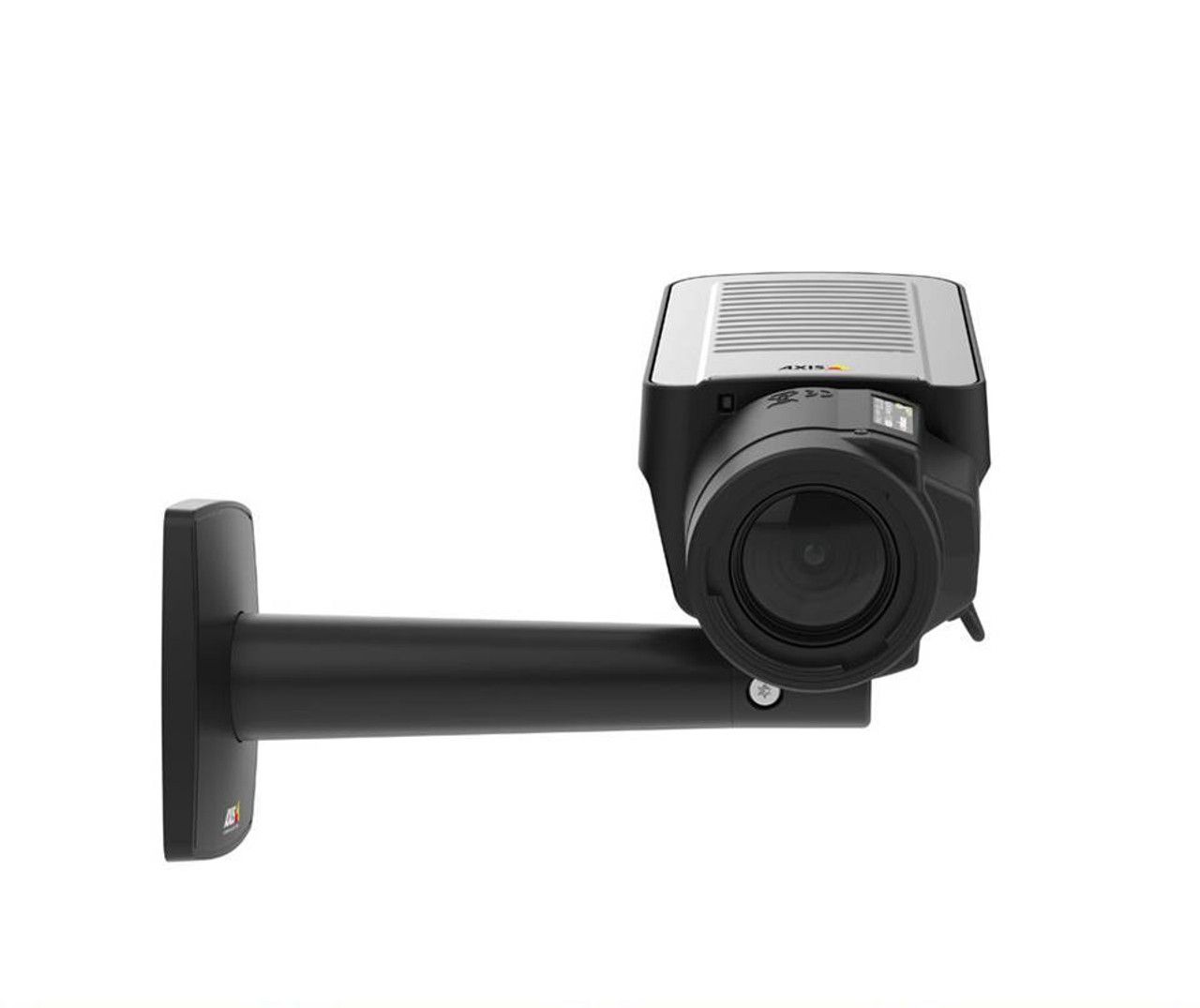

Axis 0883-041 Q1615 Mk II BAREBONE Network IP Box Camera
SKU
0883-041
Model No
Q1615 Mk II BAREBONE
$786.18
Product Highlights
- No lens
- Scene Profiles with automatically adjusted image settings
- Lightfinder technology and WDR - Forensic Capture
- Electronic Image Stabilization
- Axis' Zipstream technology
Speak to an expert
AXIS Q1615 Mk II BAREBONE Network Camera in single pack is designed for those who require a customizable surveillance solution. Featuring superior image quality even in challenging lighting conditions and the ability to capture fast-moving objects, this camera is ideal for indoor environments such as airports, train stations, and production lines. Note that this model comes without a lens or power supply, providing flexibility to tailor it to your specific needs.
AXIS Q1615 Mk II BAREBONE Camera Features
- No lens: Customize your camera setup with the flexibility to choose the lens that best suits your specific application.
- Scene Profiles: Automatically adjusted image settings ensure optimal performance tailored to various environments, enhancing image quality.
- Lightfinder technology and WDR – Forensic Capture: Deliver vivid color images in low light and capture details in high-contrast scenes, crucial for identifying subjects.
- Electronic Image Stabilization: Reduces motion blur, providing clear footage even in dynamic situations, improving surveillance quality.
- Axis’ Zipstream technology: Optimizes bandwidth and storage efficiency while preserving image quality, cutting costs for users.
AXIS Q1615 Mk II BAREBONE Detailed Specifications
| Model | AXIS Q1615 Mk II BAREBONE |
| Pack Size | Single Pack |
| Lens | No lens included |
| Power Supply | Not included |
| Image Quality | Superior for fast-moving objects |
| Optimal Use | Indoor surveillance (airports, train stations, production lines) |
| Technologies | Lightfinder, WDR – Forensic Capture, Electronic Image Stabilization, Zipstream |
SKU  | 0883-041 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.1 Megapixel |
| Lens Type | Not Included |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 8-28vDC, PoE |
| Dimensions (W x H) | 82 x 58 x 136 mm (3 1/4 x 2 1/4 x 5 3/8 in) |
| Electronic Shutter | 1/143000 to 2 s |
| Image Device | Progressive scan RGB CMOS 1/2.8 |
| Minimum Scene Illumination | HDTV 1080p 25/30 fps: Color: 0.11 lux, B/W: 0.02 lux, at 50 IRE F1.2, HDTV 1080p 50/60 fps: Color 0.22 lux, B/W: 0.04 lux, at 50 IRE F1.2, HDTV 720p 100/120 fps: Color 0.44 lux, B/W: 0.09 lux, at 50 IRE F1.2 |
| Operating Humidity | 10-85% RH (non-condensing) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | PoE: max 7.1 W, typical 4.4 W, 8-28 V DC, max 6.9 W, typical 4.3 W |
| Protocols | IPv4/v6, HTTP, HTTPSa SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Scanning System | Progressive |
| Rotation Angle | 0°, 90°, 180°, 270° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
