Axis 0870-001 M3106-LVE Network IP Camera, 2.4 mm Lens
SKU
0870-001
Model No
M3106-LVE
$392.18
Product Highlights
- Built-in IR illumination
- Quad HD/4 MP video
- Wide Dynamic Range (WDR)
- Axis' Zipstream technology
- Smart design for easy, flexible installation
Speak to an expert

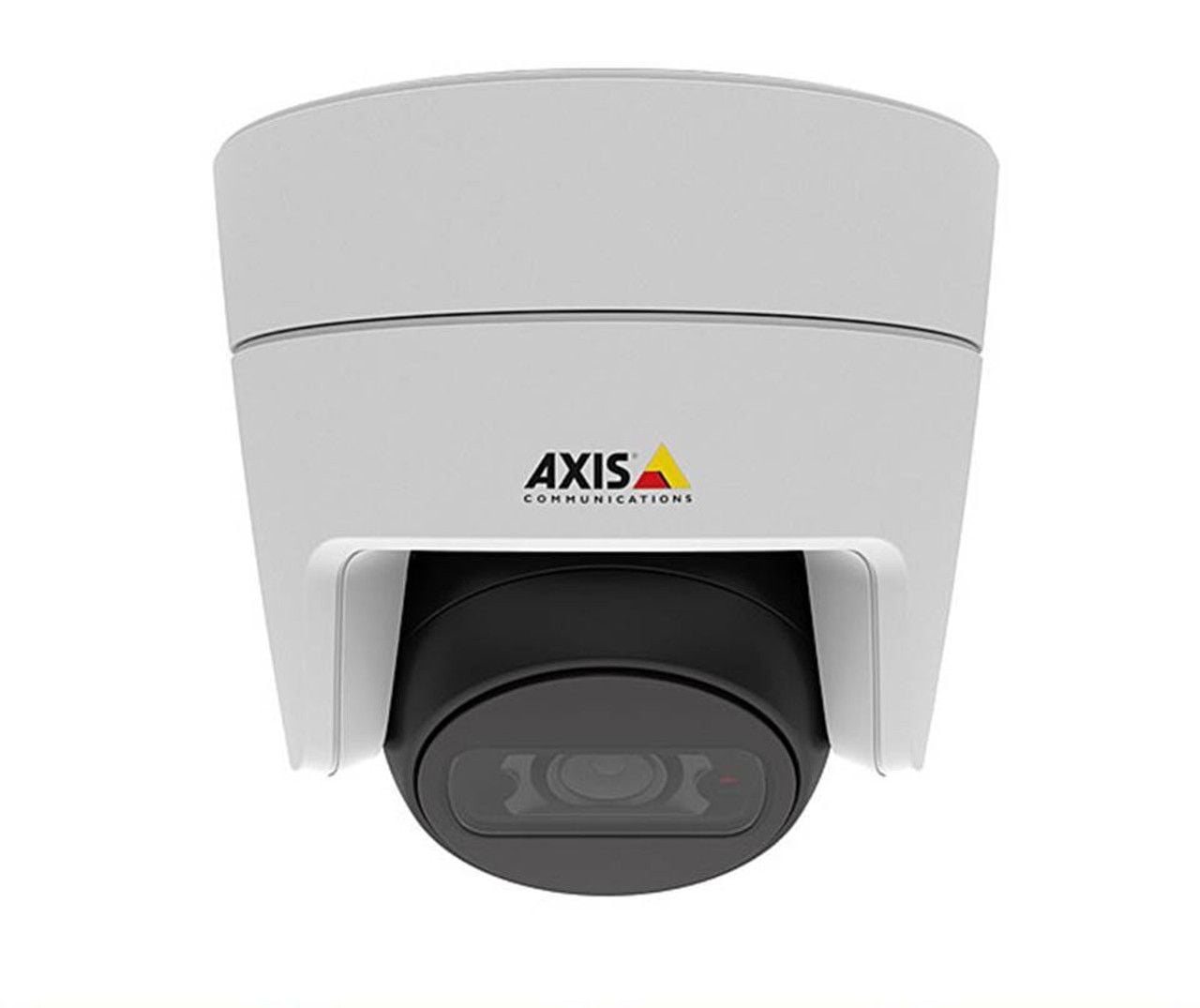

The M3106-LVE is an affordable, outdoor-ready fixed mini dome with a flat-faced design that suppresses reflections. Using WDR technology and IR illumination, it provides compact HDTV surveillance even in challenging light conditions or total darkness. The smart design allows for easy repainting, or using the optional black accessory casing to blend the camera into its environment. Axis’ Zipstream technology reduces bandwidth and storage requirements. A variety of accessories are available for flexible and easy installation.
Axis 0870-001 M3106-LVE Camera Features
- Built-in IR illumination: Ensures clear video in complete darkness, enhancing security at all times.
- Quad HD/4 MP video: Delivers high-resolution images for detailed monitoring and identification of subjects.
- Wide Dynamic Range (WDR): Provides optimum visibility in bright and dark areas, perfect for varying light conditions.
- Axis’ Zipstream technology: Efficiently reduces bandwidth and storage needs without compromising video quality.
- Smart design for easy, flexible installation: Allows for straightforward setup and customization to fit various environments.
Detailed Specifications for Axis 0870-001 M3106-LVE
| Model | Axis M3106-LVE |
| Image Sensor | 4 MP |
| Lens | 2.4 mm |
| Field of View | Wide angle |
| IR Range | Up to 30 meters |
| WDR Technology | Yes |
| Zipstream Technology | Yes |
| Operating Temperature | -30°C to 60°C |
| Connectivity | Ethernet |
| Power over Ethernet | Supported |
| Dimensions | 104 x 100 mm |
| Weight | 350 g |
SKU  | 0870-001 |
|---|---|
| Features | Auto Gain Control, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Height: 94 mm (3.7 in) ø 101 mm (4.0 in) |
| Electronic Shutter | 1/31500 s to 1/5 s |
| Image Device | 1/3" progressive scan RGB CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.3 lux at 50 IRE, F2.2, B/W: 0.06 lux at 50 IRE, F2.2, 0 lux with IR illumination on |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | –30°C to 50°C (–22 °F to 122 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | Typical: 4.6 W, Max.: 9.3 W |
| Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Weatherproof | IP66 |
| Angle of View | Horizontal field of view: 130°, Vertical field of view: 73° |
| Rotation Angle | ±95° |
| IR Distance | 15m/50 ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
