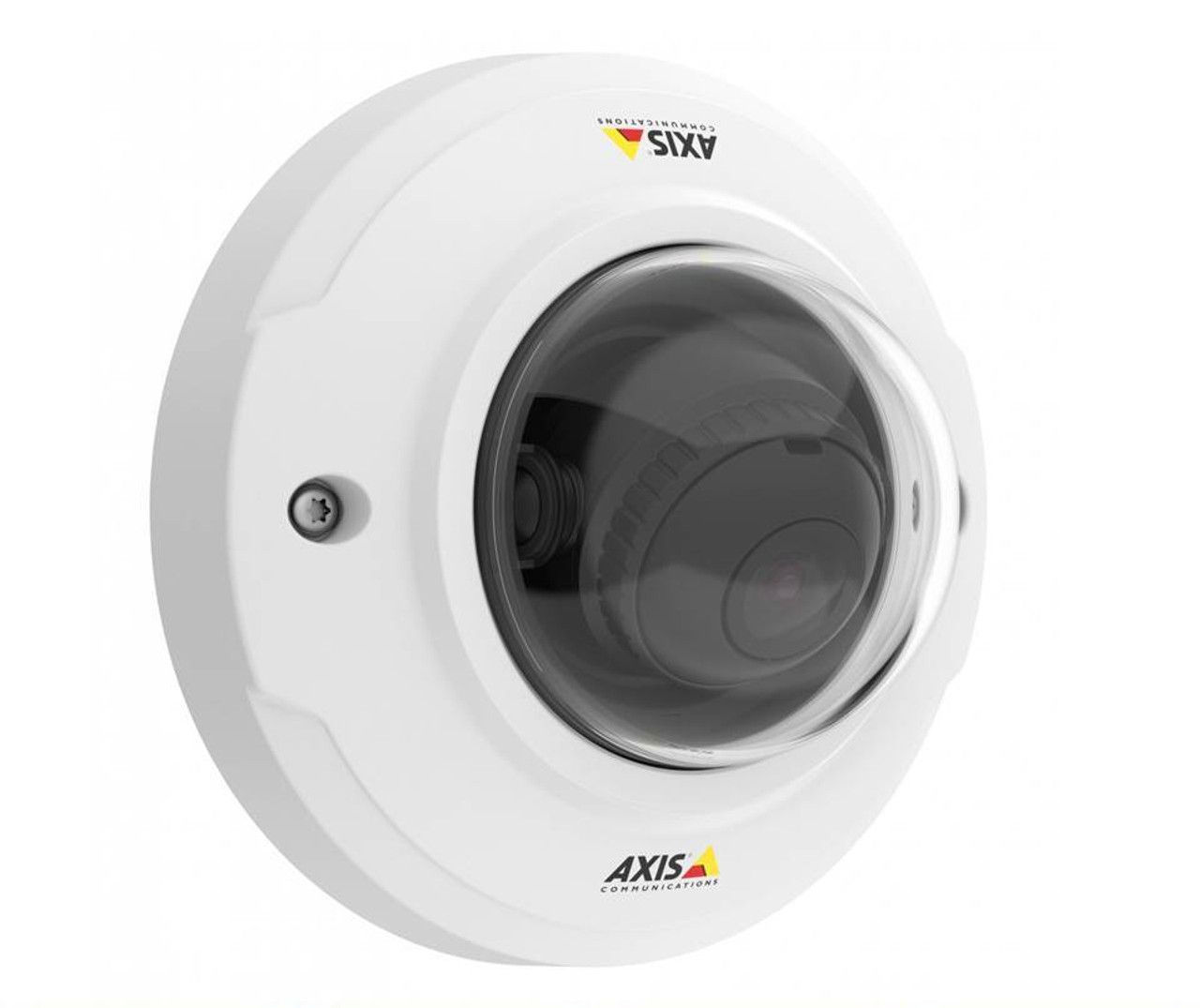

Axis 0803-004 M3044-WV Network IP Dome Camera, 2.8 mm Lens
SKU
0803-004
Model No
M3044-WV
$232.89
Product Highlights
- Ultra-compact, vandal and dust-resistant design
- HDTV 720p / 1 MP
- Connects over wireless LAN or Ethernet
- Axis' Zipstream technology for reduced bandwidth and storage
- Axis' Corridor Format
Speak to an expert
The palm-sized AXIS M3044-WV is an affordably priced, vandal- and dust-resistant indoor HDTV 720p fixed mini dome camera. With its Wide Dynamic Range (WDR), it ensures details in both dark and bright areas are visible. This camera connects to your network via wireless LAN or Ethernet, featuring an integrated RJ45 connector. Factory-focused for easy installation, it can be mounted on walls or ceilings and allows for 3-axis camera angle adjustment. Enjoy the benefit of vertically oriented video streams with Axis’ Corridor Format, along with support for video analytics like people counting.
AXIS M3044-WV Unique Features
- Ultra-compact design: The camera’s small size allows for discreet installation in a variety of indoor settings.
- Vandal and dust-resistant: Specifically designed to withstand harsh environments, ensuring durability and longevity.
- HDTV 720p / 1 MP: Provides high-quality video resolution for clear and detailed imagery.
- Flexible connectivity: The ability to connect via wireless LAN or Ethernet offers versatile installation options to suit your needs.
- Zipstream technology: Reduces bandwidth and storage requirements without compromising video quality.
- Corridor Format: Specially designed for vertical video streams, ideal for monitoring hallways and narrow spaces.
AXIS M3044-WV Detailed Specifications
| Model | AXIS M3044-WV |
| Type | Network IP Dome Camera |
| Lens | 2.8 mm |
| Video Resolution | HDTV 720p / 1 MP |
| Connectivity | Wireless LAN / Ethernet (RJ45) |
| Mounting Options | Wall or ceiling |
| WDR | Yes |
| Axis Corridor Format | Supported |
| Video Analytics | People counting supported |
| Dimensions (WxHxD) | 104 x 104 x 47 mm |
| Weight | 220 g |
SKU  | 0803-004 |
|---|---|
| Features | Auto Gain Control, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, JPEG |
| Durability | Vandal Resistant |
| Voltage | 4.8-5.2vDC |
| Dimensions (W x H) | Height: 56 mm (2.2 in) ø 101 mm (4.0 in) |
| Electronic Shutter | 1/32500 s to 1/5 s |
| Image Device | 1/3” progressive scan RGB CMOS |
| Minimum Scene Illumination | 0.25 lux at 50 IRE F2.0 |
| Operating Humidity | 15-85% RH (non-condensing) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese |
| Power Consumption | Typical 2.4 W, max. 2.7 W |
| Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Angle of View | Horizontal field of view: 82°, Vertical field of view: 44° |
| Rotation Angle | ±176° |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
