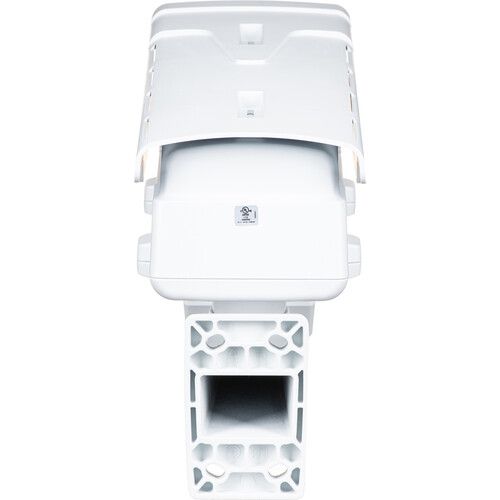

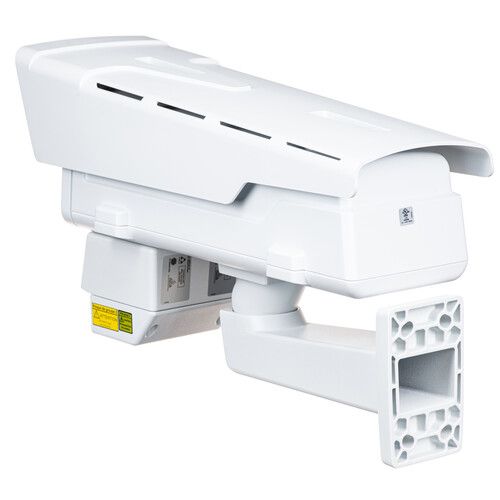

Axis 02968-001 Q1686-DLE Radar-Video Fusion Outdoor Camera with 9-50mm Lens
SKU
02968-001
Model No
02968-001
$4,286.59
Product Highlights
- Merge vehicle speed and license plate ″ "on the edge
- Radar tracking of speed and direction
- Monitor speeds up to 200 km/h (125 mph)
- Reliable license plate capture and recognition 24/7
- Open platform for third-party software
Speak to an expert
The Axis 02968-001 Q1686-DLE Radar-Video Fusion Outdoor Camera combines advanced radar technology with high-resolution video to ensure accurate vehicle speed tracking and license plate recognition. Its innovative design allows for 24/7 monitoring and reliable detection, making it the perfect solution for traffic management and law enforcement.
Axis 02968-001 Q1686-DLE Camera Features
- Vehicle Tracking: The camera can monitor vehicle speeds of up to 200 km/h (125 mph), ensuring accurate data collection for law enforcement and traffic management.
- Multi-Lane Monitoring: Capable of detecting vehicles in multiple lanes, allowing for comprehensive traffic analysis and response strategies.
- License Plate Recognition: With a built-in license plate capture assistant, it delivers high-resolution images necessary for accurate identification.
- Night Vision Capabilities: Thanks to traffic-optimized IR illumination, it can capture clear license plate images in total darkness up to 50 m (164 ft).
- Easy Installation: Designed for hassle-free setup, with factory calibration that aligns camera and radar, simplifying the installation process.
Axis 02968-001 Q1686-DLE Detailed Specifications
| Feature | Details |
| Model | Axis 02968-001 Q1686-DLE |
| Lens | 9-50mm varifocal tele lens |
| Field of View | 46°–9° horizontal |
| Speed Detection | Up to 200 km/h (125 mph) |
| License Plate Capture | Reliable 24/7 capture and recognition |
| IR Illumination Range | Up to 50 m (164 ft) |
| Installation Simplification | Factory-calibrated with automatic scene adjustments |
| Software Compatibility | Open platform for third-party license plate recognition software |
SKU  | 02968-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Lens Type | Varifocal |
| Lens Size | 9-50mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-H, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12-28vDC, PoE |
| Electronic Shutter | 1/47500 s to 1 s |
| Image Device | 1/1.8” progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.05 lux at 50 IRE, F1.5, B/W: 0.01 lux at 50 IRE, F1.5 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -40°C to 60 °C (-40 °F to 140 °F) |
| Weatherproof | IP66 |
| Audio | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
