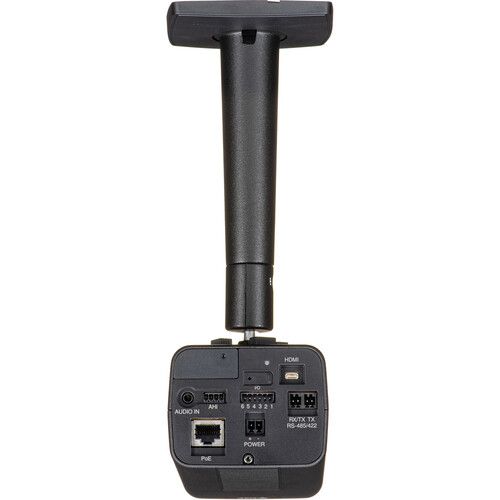

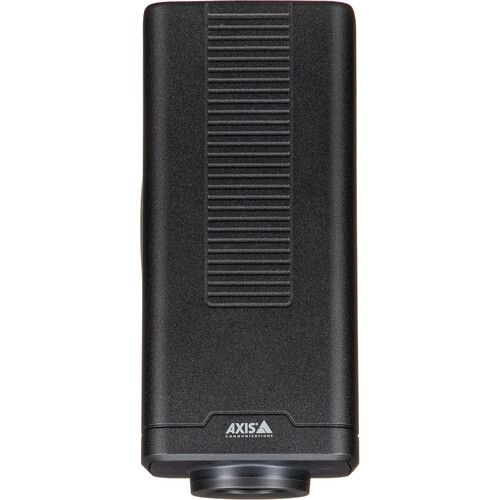

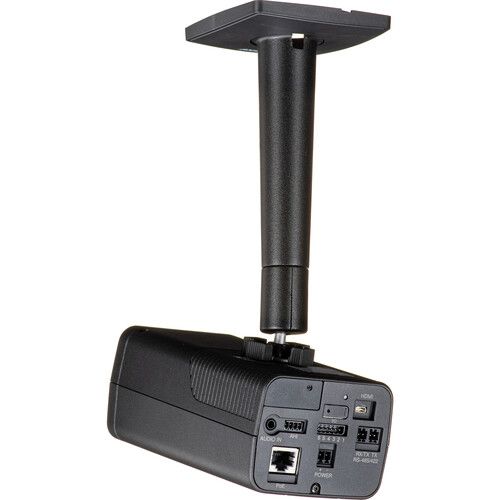

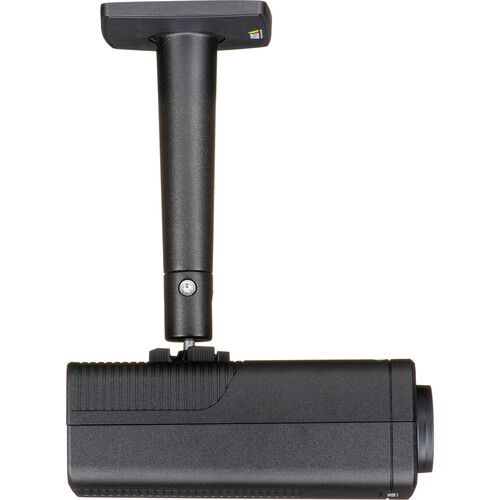

Axis 02840-001 Q1728 2 Megapixel Network IP IR Box Camera with 48mm Lens
SKU
02840-001
Model No
Q1728
$1,310.19
Product Highlights
- Superior image quality in 4K
- Designed to fit into most enclosures
- Next-generation AI-powered analytics
- Wide or tele lenses available
- Built-in cybersecurity with Axis Edge Vault
Speak to an expert
Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. It’s possible to use your existing housing or upgrade to new housing, making it a more environmentally friendly option.
Axis Q1728 Camera Features
- Superior image quality: AXIS Q1728 provides 4K resolution at 60 fps with a large 1/1.2" sensor, ensuring exceptional clarity even in low-light conditions.
- Flexible housing options: The camera is designed to fit into various enclosures, whether existing or new, preserving the value of your investment.
- Advanced AI analytics: Powered by ARTPEC-9, this camera performs real-time analytics, detecting and classifying objects with high accuracy.
- Choice of lenses: Available in wide (6-13 mm) and tele (15-48 mm) variants, allowing for customized surveillance based on your needs.
- Built-in cybersecurity: Features Axis Edge Vault for hardware-based security, ensuring safe operations and secure key storage.
Axis Q1728 Detailed Specifications
| Model | AXIS Q1728 |
| Resolution | 4K at 60 fps |
| Sensor Type | 1/1.2" sensor |
| AI Features | ARTPEC-9 with Object Analytics |
| Lens Options | Wide 6-13 mm, Tele 15-48 mm |
| Cybersecurity | Axis Edge Vault |
| Light Optimization | Lightfinder 2.0 and Forensic WDR |
| Compatibility | Standardized for various enclosures |
| Data Compression | Support for AV1, H.264, H.265 |
SKU  | 02840-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
| Connection Type | Wired |
Resolution  | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 40mm |
| Compression Method | H.264, MPEG-H, MPEG-4, JPEG, H.265 |
| Voltage | 10-28vDC, PoE |
| Electronic Shutter | 1/66500 s to 2 s |
| Image Device | 1/1.2” progressive scan RGB CMOS |
| Minimum Scene Illumination | With WDR and Lightfinder: Color: 0.05 lux at 50 IRE, F1.7/B/W: 0.01 lux at 50 IRE, F1.7 |
| Operating Humidity | 10–85% RH (non-condensing) |
| Operating Temperature | -10 °C to 60 °C (14 °F to 140 °F) |
| Power Consumption | Max 12.95W, Max 7.5W, Max 7W |
| Angle of View | Horizontal field of view: 42°–13°, Vertical field of view: 24°–7° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
