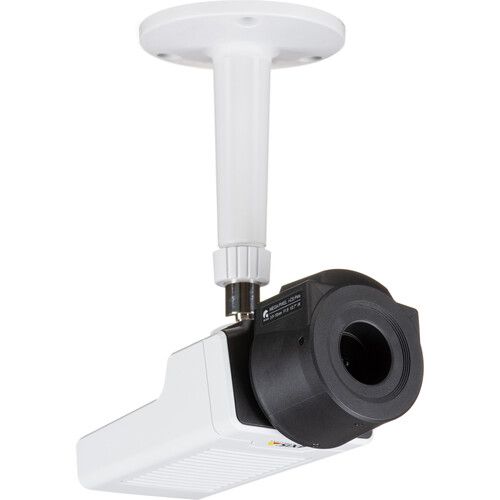

Axis M1135 02580-001 2 Megapixel Network Indoor Box Camera with 3 -10.5mm Lens
SKU
02580-001
Model No
M1135
$629.00
Product Highlights
- Compact and flexible design: Ideal for indoor use in various settings, making installation seamless and adaptable
- Light finder and Forensic WDR: Produces clear images in low-light conditions, enhancing detail and color accuracy
- Built-in microphone for audio recording: Captures audio alongside video, providing a comprehensive surveillance solution
- AXIS Object Analytics: Enables intelligent detection and classification of humans and vehicles, enhancing security monitoring
Speak to an expert
AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Axis M1135 02580-001 Camera Features
- Compact and flexible design: Ideal for indoor use in various settings, making installation seamless and adaptable.
- Lightfinder and Forensic WDR: Produces clear images in low-light conditions, enhancing detail and color accuracy.
- Built-in microphone for audio recording: Captures audio alongside video, providing a comprehensive surveillance solution.
- AXIS Object Analytics: Enables intelligent detection and classification of humans and vehicles, enhancing security monitoring.
- Remote zoom and focus with i-CS: Allows for easy adjustment from a distance, reducing the need for manual handling.
Detailed Specifications for Axis M1135 02580-001
| Camera Model | AXIS M1135 Mk II |
| Resolution | 2 Megapixels |
| Lens | 3 - 10.5mm |
| Power Source | PoE and redundant DC power |
| Light Conditions | Axis Lightfinder and Forensic WDR |
| Audio | Built-in microphone |
| Analytics | AXIS Object Analytics preinstalled |
| Compression | Axis Zipstream with H.264/H.265 |
SKU  | 02580-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-10.5mm |
| Mount Type | Wall |
| Compression Method | H.264, MPEG-H, MPEG-4, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 10-28vDC, PoE |
| Dimensions (W x H) | 47 x 70 x 147 mm (1.8 x 2.8 x 5.8 in) |
| Electronic Shutter | 1/33500 to 2 s |
| Image Device | Progressive scan RGB CMOS 1/2.9" |
| Minimum Scene Illumination | HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: Color: 0.15 lux at 50 IRE, F1.4, B/W: 0.03 lux at 50 IRE, F1.4, Color: 0.1 lux at 30 IRE, F1.4, B/W: 0.02 lux at 30 IRE, F1.4 |
| Operating Humidity | 10–85% RH (non-condensing) |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Angle of View | Horizontal field of view: 90°–33°, Vertical field of view: 49°–19° |
| Rotation Angle | 0°, 90°, 180°, 270° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
