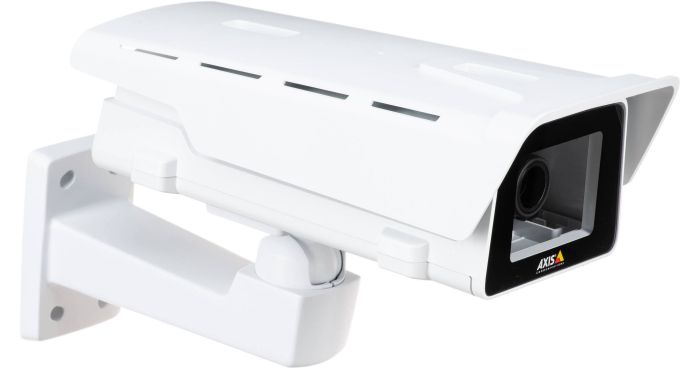

Axis 02485-001 M1135-E 2 Megapixel Network Outdoor Box Camera with 3-10.5mm Lens
SKU
02485-001
Model No
M1135-E
$601.98
Product Highlights
- Compact and flexible design
- Lightfinder and Forensic WDR
- Audio input
- AXIS Object Analytics
- Support for i-CS lenses
Speak to an expert
This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. With Axis Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Axis 02485-001 M1135-E Camera Features
- Compact and flexible design: Easy installation in various environments while maintaining high performance.
- Lightfinder and Forensic WDR: Captures true colors and details in low light conditions, enhancing image quality.
- Audio input: Enables sound recording alongside video footage for comprehensive surveillance.
- AXIS Object Analytics: Advanced detection and classification of humans and vehicles for improved monitoring capabilities.
- Support for i-CS lenses: Allows the use of interchangeable lenses, providing versatility in camera applications.
Detailed Camera Specifications for Axis 02485-001 M1135-E
| Camera Type | Network Outdoor Box Camera |
| Megapixels | 2 Megapixels |
| Lens Type | 3-10.5mm CS-mount Lens |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Power Supply | PoE and redundant DC power |
| Analytics | AXIS Object Analytics |
| Compression Technology | Axis Zipstream with H.264/H.265 |
SKU  | 02485-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-10.5mm |
| Mount Type | Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 10-28vDC, PoE |
| Dimensions (W x H) | 240 x 143 x 372 mm (9.5 x 5.6 x 14.7 in) including wall mount |
| Electronic Shutter | 1/33500 to 2 s |
| Image Device | Progressive scan RGB CMOS 1/2.9" |
| Minimum Scene Illumination | HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: Color: 0.15 lux at 50 IRE, F1.4, B/W: 0.03 lux at 50 IRE, F1.4, HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: Color: 0.1 lux at 30 IRE, F1.4, B/W: 0.02 lux at 30 IRE, F1.4 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -25 °C to 50 °C (-13 °F to 122 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
| Power Consumption | PoE: max 7.2 W, typical 4.5 W, 10-28 V DC, max 6.6 W, typical 4.4 W |
| Weatherproof | IP66 |
| Angle of View | Horizontal field of view: 90°–33°, Vertical field of view: 49°–19° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
