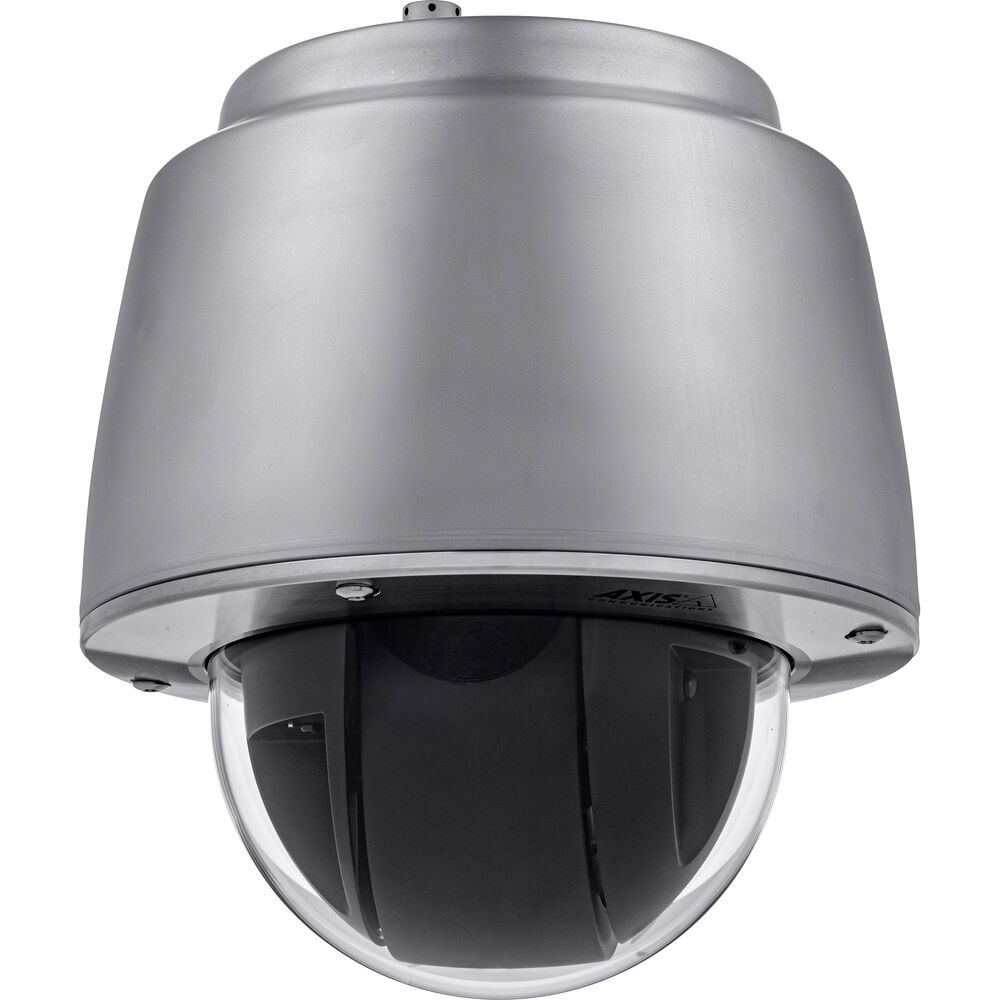

Axis 02239-001 Q6075-SE 60 Hz 2 Megapixel Outdoor Stainless Steel PTZ Camera, 40X Lens
SKU
02239-001
Model No
Q6075-SE 60 Hz
$4,925.34
Product Highlights
- Marine-grade stainless steel casing
- HDTV 1080p and 40x optical zoom
- SFP slots for fiber, RJ45 connections
- I/O for alarm in/out
- Built-in analytics
Speak to an expert
Axis 02239-001 Q6075-SE Camera Features
AXIS Q6075-SE PTZ Camera offers great overviews and excellent details. It comes with autotracking 2, as well as an orientation aid for active object tracking and quick orientation. With Axis Lightfinder 2.0 the camera delivers low-light images with more saturated colors and sharper images of moving objects. Plus, the included TPM module ensures highest network security. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements. The media converter enables daisy chain installation using standard network or fiber optic cables.
Features
- Marine-grade stainless steel casing: Provides durability and resistance to harsh environmental conditions.
- HDTV 1080p and 40x optical zoom: Captures high-resolution images with significant detail even from far distances.
- SFP slots for fiber, RJ45 connections: Offers versatile connectivity options for various installation setups.
- I/O for alarm in/out: Facilitates integration with alarm systems for enhanced security applications.
- Built-in analytics: Delivers smart functions for improved surveillance and monitoring.
Axis 02239-001 Q6075-SE Detailed Specifications
| Camera Type | PTZ Camera |
| Resolution | 2 Megapixel (HDTV 1080p) |
| Optical Zoom | 40x |
| Material | Marine-grade Stainless Steel |
| Lightfinder Technology | Axis Lightfinder 2.0 |
| Video Compression | H.264/H.265 with Zipstream |
| Network Security | TPM Module |
| Connectivity | SFP slots, RJ45 connections |
| Integration | I/O for alarm in/out |
| Analytics | Built-in analytics functions |
SKU  | 02239-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 40X |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC |
| Dimensions (W x H) | Ø224 x 256 mm (Ø8 13/16 x 10 1/16 in) |
| Electronic Shutter | 1/11000 s to 1/3 s with 60 Hz |
| Image Device | 1/2.8” progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.1 lux at 30 IRE, F1.6, B/W: 0.002 lux at 30 IRE, F1.6, Color: 0.15 lux at 50 IRE, F1.6, B/W: 0.003 lux at 50 IRE, F1.6 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -30 °C to 50 °C (-22 °F to 122 °F) |
| Power Consumption | Max 65 W |
| Protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1 |
| Video Output | RJ45 |
| Weatherproof | IP66, IP67 |
| Angle of View | Horizontal field of view: 65.1°-2.00° (1080p), Vertical field of view: 39.1°-1.18° (1080p) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
