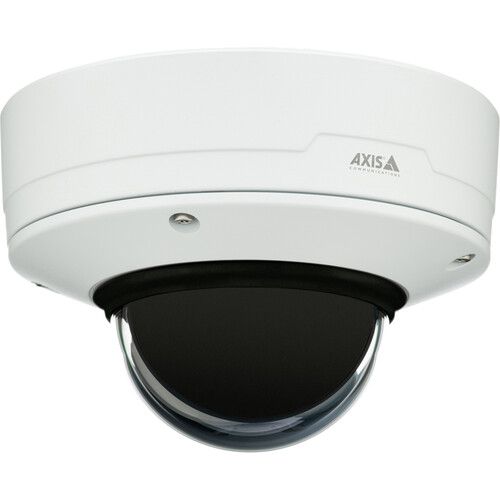

Axis 02224-001 Q3536-LVE 4 Megapixel Outdoor Network IR Dome Camera with 29mm Lens

SKU
02224-001
Model No
Q3536-LVE
$1,231.89
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Outstanding image quality in 4 MP
  • Support for analytics with deep learning
  • IR-shielded dome to prevent reflections
  • Built-in cybersecurity features
  • Available with wide or tele lens

Axis 02224-001 Q3536-LVE Camera Features

The 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, Axis Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, Axis Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).

Features

  • Outstanding image quality: 4 MP resolution ensures crystal-clear video even in low-light conditions.
  • Support for analytics: Deep learning capabilities for advanced object classification and detection.
  • IR-shielded dome: Prevents IR reflections, resulting in consistently clear images.
  • Built-in cybersecurity features: Protects against unauthorized access with Axis Edge Vault and Trusted Platform Module (TPM)
  • Available lens options: Choose between wide or tele lens for flexibility in various viewing scenarios.

Detailed Camera Specifications

Resolution4 Megapixels
Lens29mm
Lightfinder TechnologyLightfinder 2.0 for enhanced low-light performance
Dynamic RangeForensic WDR for superior detail in high-contrast scenes
Infrared TechnologyOptimizedIR for uniform illumination
Power SupplyRedundant power options for enhanced reliability
CybersecurityFIPS 140-2 level 2 certified Trusted Platform Module (TPM)
AnalyticsAxis Object Analytics preinstalled
Detection SensorsIntrusion and shock detection sensors included
SKU  02224-001
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Axis
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    29mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-H, MPEG-4, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  10-28vDC, PoE
Dimensions (W x H)  Height: 124 mm (4.9 in), 184 mm (7.3 in) including weathershield ø 183 mm (7.2 in)
Electronic Shutter    1/91000 s to 1 s
Image Device    1/1.8” progressive scan RGB CMOS
IR Wavelength  850 nm
Minimum Scene Illumination  Color: 0.08 lux at 50 IRE, F1.7, B/W: 0 lux at 50 IRE, F1.7
Operating Humidity    10–100% RH (condensing)
Operating Temperature    -50 °C to 60 °C (-58 °F to 140 °F)
Power Consumption  Typical 9 W, max 24 W
Weatherproof    IP66, IP67
Angle of View    Horizontal field of view: 40°–15°, Vertical field of view: 22°–9°
Rotation Angle0°, 90°, 180°, 270° including Corridor
Back Light Compensation  29mm
IR Distance  60m/200ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
