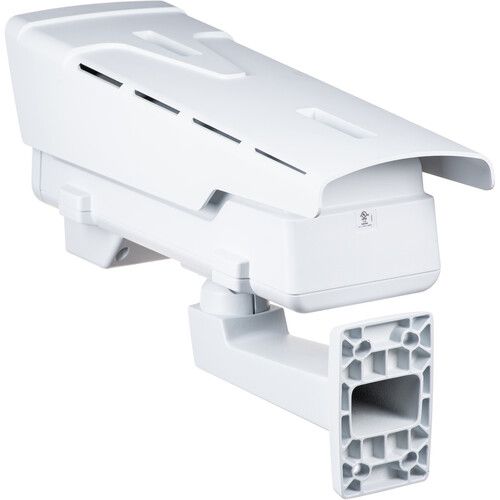

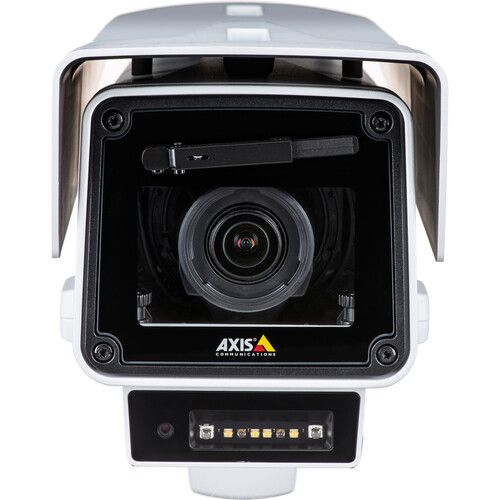

Axis 02168-001 Q1656-LE 4 Megapixel Outdoor Network IR Box Camera with 3.9-10mm Lens
SKU
02168-001
Model No
Q1656-LE
$1,970.55
Product Highlights
- Exceptional images with 1/1.8″ sensor
- Support for analytics with deep learning
- Enhanced security features
- Premium Axis Q-line camera functionality
- Built-in wiper for snow and rain
Speak to an expert
The Axis 02168-001 Q1656-LE is a robust and high-performance outdoor network camera designed to deliver crystal-clear video quality under various conditions. With its impressive 4 Megapixel resolution and advanced features like Lightfinder 2.0, this camera ensures excellent performance even in low-light scenarios. It also includes a built-in wiper for optimal visibility in challenging weather, making it an ideal choice for any surveillance application.
Axis 02168-001 Q1656-LE Camera Features
- Exceptional images: Captures stunning video quality with a 1/1.8” sensor, ensuring clarity and detail even in low light.
- Deep learning analytics: Supports advanced analytics capabilities based on deep learning, allowing for precise object classification and tracking.
- Enhanced security: Features robust security protocols to prevent unauthorized access and protect your surveillance data.
- Premium functionality: Incorporates high-end features typical of Axis Q-line cameras, optimizing performance for professional security needs.
- Built-in wiper: Equipped with an integrated wiper to ensure clear video feeds in snowy or rainy conditions.
Detailed Specifications for Axis 02168-001 Q1656-LE
| Model | Axis Q1656-LE |
| Resolution | 4 Megapixels |
| Sensor Type | 1/1.8” sensor |
| Frame Rate | Up to 60 fps |
| Lens | 3.9-10mm lens |
| Lightfinder Technology | Lightfinder 2.0 |
| Power Options | PoE and redundant DC power |
| Weatherproofing | Outdoor-ready with built-in wiper |
| Analytics Support | Axis Object Analytics with deep learning |
| Security Features | Enhanced security protocols for system protection |
SKU  | 02168-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.9-10mm |
| Mount Type | Wall |
| Compression Method | H.264, MPEG-H, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 10-28vDC, PoE |
| Dimensions (W x H) | 404 x 159 x 182 mm (16 x 6.3 x 7.2 in) |
| Electronic Shutter | 1/47500 s to 1 s |
| Image Device | 1/1.8” progressive scan RGB CMOS |
| IR Wavelength | 850 nm |
| Operating Humidity | 10–85% RH (non-condensing) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Power Consumption | Typical 11.8 W, max 25.5 W, typical 11.2 W, max 25.5 W |
| Weatherproof | IP66, IP67 |
| Angle of View | Horizontal field of view: 113°–47°, Vertical field of view: 60°–27° |
| Rotation Angle | 0°, 90°, 180°, 270° including Corridor Format, |
| Back Light Compensation | 3.9-10mm |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
