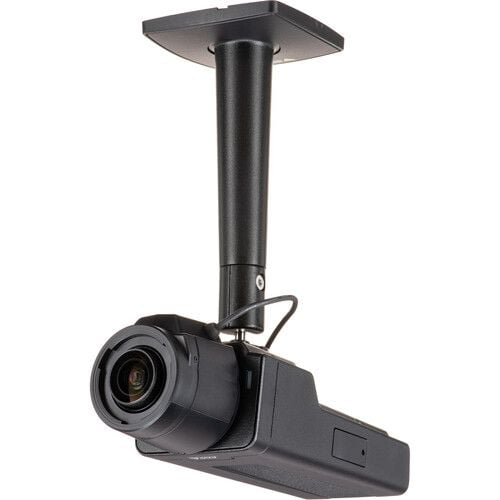

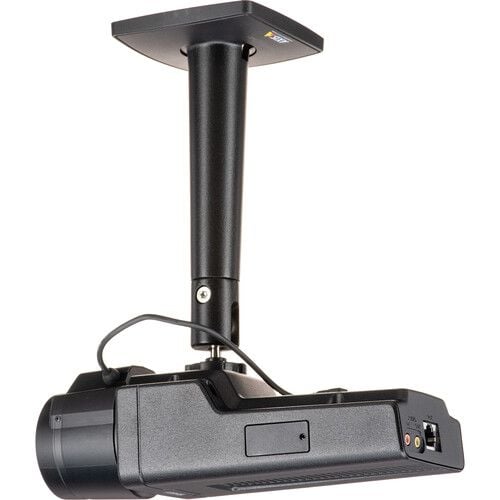

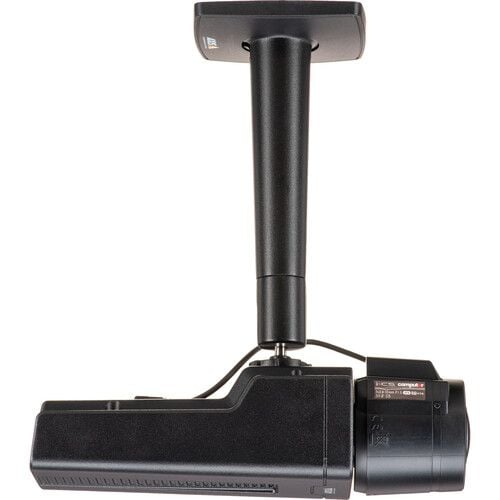

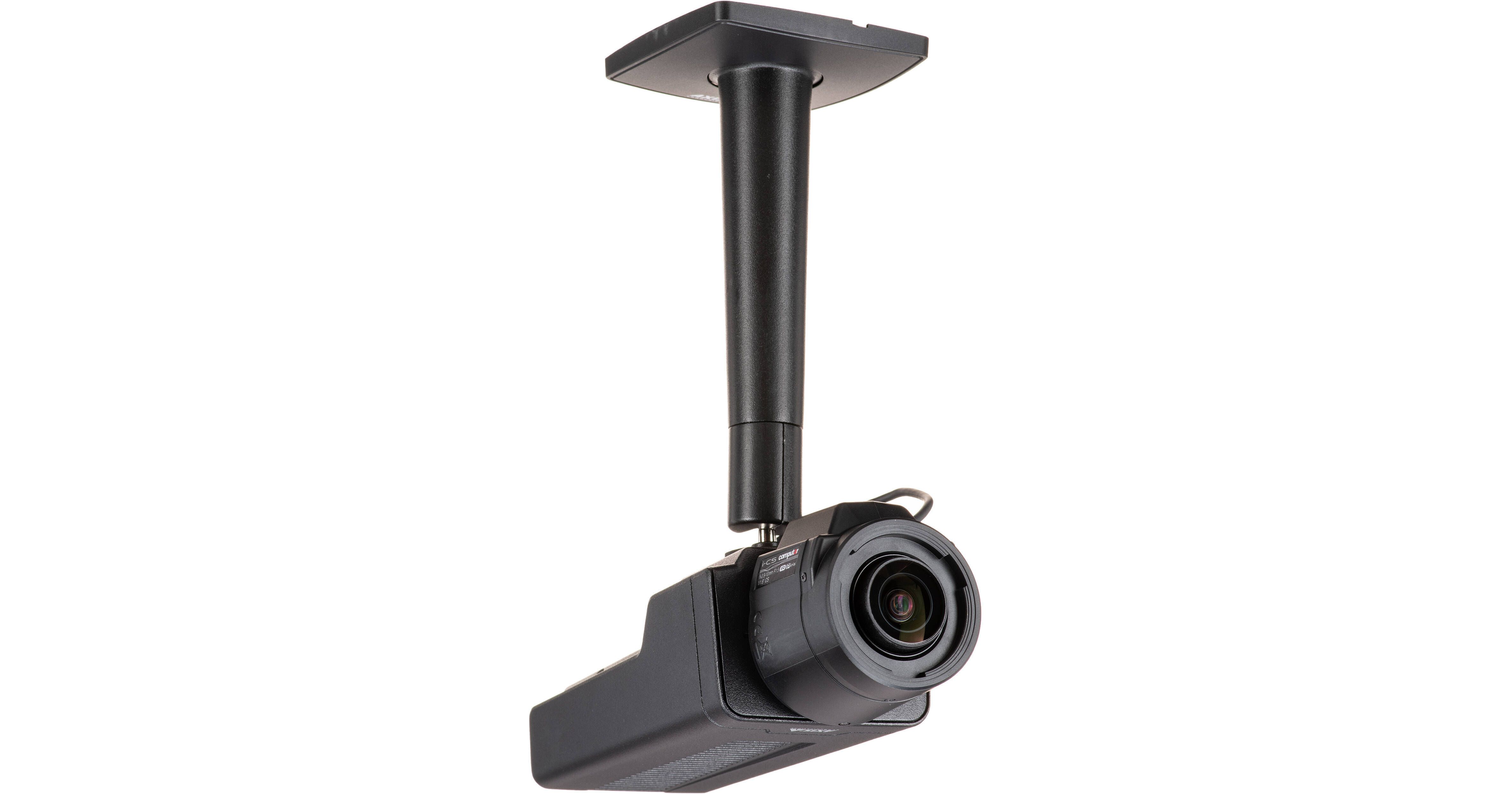

Axis 02164-001 Q1656 4 Megapixel Indoor Network Box Camera with 3.9-10mm Lens
SKU
02164-001
Model No
Q1656
$1,434.61
Product Highlights
- Exceptional images with 1/1.8″ sensor
- Support for analytics with deep learning
- Built-in cybersecurity features
- Premium Axis Q-line camera functionality
- Remote zoom and focus
Speak to an expert
The Axis 02164-001 Q1656 4 Megapixel Indoor Network Box Camera offers a blend of high-quality video performance and advanced security features. With its 4 MP resolution at up to 60 fps, this camera ensures clear visuals even in low-light settings. It's equipped with cutting-edge technology for deep learning analytics and robust cybersecurity mechanisms to protect your data.
Axis Q1656 Camera Features
- Exceptional images: With a 1/1.8” sensor, the camera captures vivid and detailed images in various lighting conditions, enhancing your surveillance quality.
- Support for analytics: The integration of deep learning capabilities allows for sophisticated object classification, improving the way surveillance data is interpreted.
- Built-in cybersecurity features: Equipped with Axis Edge Vault, signed firmware, secure boot, and FIPS-certified TPM, this camera ensures your system is protected from unauthorized access.
- Premium Axis Q-line functionality: The camera boasts advanced features synonymous with the Q-line series, providing reliability and superior performance.
- Remote zoom and focus: The capability for remote adjustments enhances operational efficiency and allows for precise monitoring without physical intervention.
Detailed Specifications for Axis 02164-001 Q1656
| Model | Axis Q1656 |
| Resolution | 4 MP |
| Frame Rate | Up to 60 fps |
| Sensor | 1/1.8” sensor |
| Lens | 3.9-10mm |
| Power Supply | PoE and redundant DC power |
| Cybersecurity | Axis Edge Vault, signed firmware, secure boot, FIPS-certified TPM |
| Analytics Support | Object Analytics with deep learning |
SKU  | 02164-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.9-10mm |
| Mount Type | Wall |
| Compression Method | H.264, MPEG-H, MPEG-4, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 10-28vDC, PoE |
| Dimensions (W x H) | 214 x 80 x 68 mm (8.4 x 3.2 x 2.7 in) |
| Electronic Shutter | 1/47500 s to 1 s |
| Image Device | 1/1.8” progressive scan RGB CMOS |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Power Consumption | Typical 5.1 W, max 8.2 W, typical 4.6 W, max 7.7 W |
| Angle of View | Horizontal field of view: 120°–47°, Vertical field of view: 63°–27° |
| Rotation Angle | 0°, 90°, 180°, 270° including Corridor Format |
| Back Light Compensation | 3.9-10mm |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
