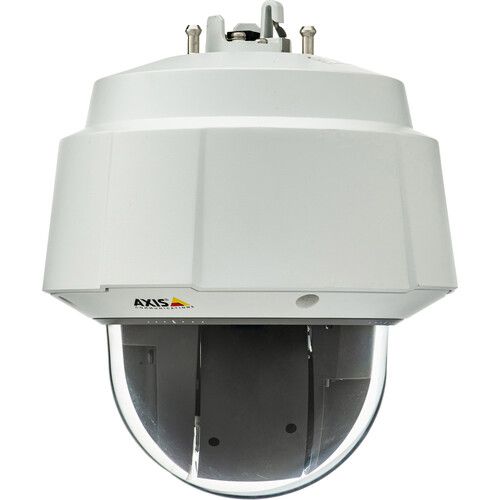

Axis 02148-004 Q6078-E PTZ Camera Outdoor-ready PTZ with UHD 4K
SKU
02148-004
Model No
Q6078-E
$3,664.52
Product Highlights
- UHD 4K with 20x optical zoom
- Outstanding images with great details
- Zipstream with support for H.264/H.265
- AXIS Object Analytics
- Built-in cybersecurity features
Speak to an expert
AXIS Q6078-E PTZ Camera offers UHD 4K with 20x optical zoom for outstanding video quality. It offers great overviews and detail with the clearest, sharpest colors. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. Featuring built-in cybersecurity such as signed firmware and secure boot it ensures the integrity and authenticity of the firmware. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Furthermore, AXIS Object Analytics offers highly granular and nuanced object classification.
Axis 02148-004 Q6078-E Camera Features
- UHD 4K with 20x optical zoom: Provides exceptional video clarity and allows for detailed viewing over long distances.
- Outstanding images with great details: Ensures vibrant colors and sharp contrasts for high-quality surveillance footage.
- Zipstream with support for H.264/H.265: Significantly reduces bandwidth and storage requirements without compromising image quality.
- AXIS Object Analytics: Facilitates advanced object classification for improved surveillance insights and efficiency.
- Built-in cybersecurity features: Protects against unauthorized access through signed firmware and secure boot, ensuring device integrity.
Axis 02148-004 Q6078-E Detailed Specifications
| Resolution | UHD 4K (3840 x 2160) |
| Optical Zoom | 20x |
| Video Compression | H.264, H.265 |
| Analytics | AXIS Object Analytics |
| Cybersecurity Features | Signed firmware, secure boot |
| PTZ Features | Autotracking 2, click and track, orientation aid |
SKU  | 02148-004 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3840 X 2160 |
| Lens Type | Motorized Zoom |
| Lens Size | 20X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 100-240vAC, PoE |
| Dimensions (W x H) | Ø232 x 271 mm (Ø9 1/8 x 10.7 in) |
| Electronic Shutter | 1/10000 s to 1 s |
| Image Device | 1/2.5” progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.2 lux at 30 IRE, F2.0 B/W: 0.002 lux at 30 IRE, F2.0 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | With 30 W: -20 °C to 50 °C (-4 °F to 122 °F), With 60 W: -50 °C to 50 °C (-58 °F to 122 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | typical 16 W, max 51 W |
| Video Output | RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector (IP66/IP67) included |
| Weatherproof | IP66, IP67 |
| Angle of View | Horizontal field of view: 68.3°-4.2° Vertical field of view: 42.1°-2.34° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
