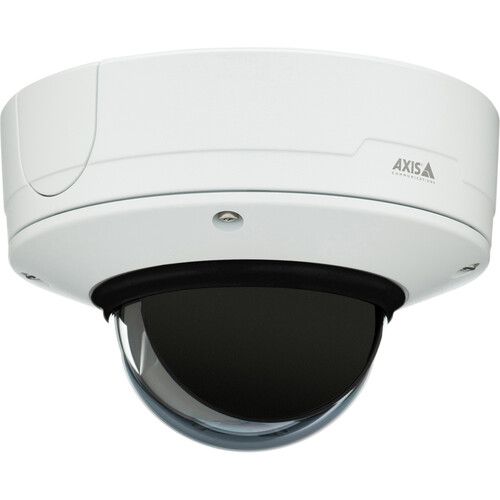

Axis 02054-001 Q3536-LVE 4 Megapixel Outdoor Network IR Dome Camera with 4.3-8.6mm Lens
SKU
02054-001
Model No
Q3536-LVE
$1,243.99
Product Highlights
- Outstanding image quality in 4 MP
- Support for analytics with deep learning
- IR-shielded dome to prevent reflections
- Built-in cybersecurity features
- Available with wide or tele lens
Speak to an expert
The Axis 02054-001 Q3536-LVE 4 Megapixel Outdoor Network IR Dome Camera redefines surveillance with its exceptional 4 MP resolution, advanced analytics capabilities, and robust construction. Featuring Lightfinder 2.0 and Forensic WDR, this camera provides outstanding image quality in any lighting condition, while its IR-shielded dome prevents reflections for consistently clear video. Additionally, it comes equipped with built-in cybersecurity features to protect your data and ensure secure operations.
Axis 02054-001 Q3536-LVE Camera Features
- Outstanding image quality: Experience crystal-clear visuals with 4 MP resolution, ensuring effective monitoring in various conditions.
- Support for analytics: Utilize advanced object analytics powered by deep learning for nuanced detection and classification, enhancing situational awareness.
- IR-shielded dome: The innovative design prevents IR reflections, resulting in consistently sharp video, even at night.
- Built-in cybersecurity features: Equipped with Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module, safeguarding your data against unauthorized access.
- Lens options: Available with versatile wide or telephoto lens options to fit different surveillance needs.
Axis 02054-001 Q3536-LVE Detailed Specifications
| Model | Axis Q3536-LVE |
| Resolution | 4 Megapixels |
| Lens | 4.3-8.6mm |
| Lightfinder 2.0 | Yes |
| Forensic WDR | Yes |
| IR Shielded Dome | Yes |
| Cybersecurity Features | Axis Edge Vault, FIPS 140-2 level 2 TPM |
| Power Redundancy | Yes |
| Intrusion Detection | Yes |
| Shock Detection | Yes |
SKU  | 02054-001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.3-8.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-H, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 10-28vDC, PoE |
| Dimensions (W x H) | Height: 124 mm (4.9 in), 184 mm (7.3 in) including weather shield ø 183 mm (7.2 in) |
| Electronic Shutter | 1/91000 s to 1 s |
| Image Device | 1/1.8” progressive scan RGB CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.06 lux at 50 IRE, F1.5, B/W: 0 lux at 50 IRE, F1.5 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -50 °C to 60 °C (-58 °F to 140 °F) |
| Power Consumption | Typical 9 W, max 23 W, Typical 9 W, max 24 W |
| Weatherproof | IP66 |
| Angle of View | Horizontal field of view: 103°–53°, Vertical field of view: 56°–30° |
| IR Distance | 40m/130ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
