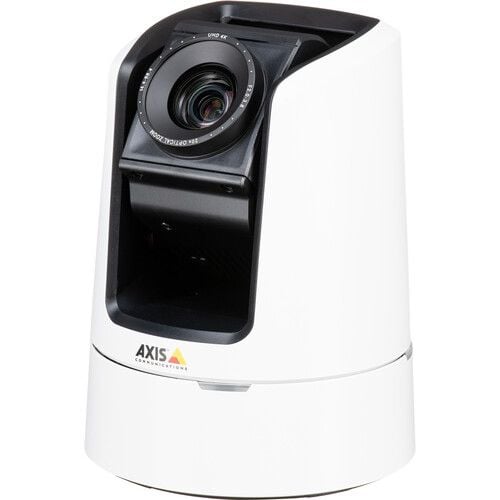

Axis 02023-004 V5938 PTZ Network Camera Broadcast-Quality 4K PTZ Camera
SKU
02023-004
Model No
V5938
$3,501.82
Product Highlights
- UHD 4K at 30 fps and 20x zoom
- Broadcast-quality audio with XLR inputs
- VISCA and VISCA over IP support
- Camstreamer 3-month trial included
- 3G-SDI and HDMI outputs
Speak to an expert
AXIS V5938 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Axis 02023-004 V5938 PTZ Camera Features
- UHD 4K at 30 fps: Experience stunning ultra-high-definition video quality with smooth frame rates for professional webcasting.
- 20x optical zoom: Capture distant subjects clearly without loss of quality, providing flexibility in various shooting scenarios.
- Broadcast-quality audio: Equipped with XLR inputs to ensure clear and professional-level sound for all your broadcasts.
- VISCA and VISCA over IP support: Easily integrate control systems with compatibility for industry-standard control protocols.
- Camstreamer 3-month trial included: Access enhanced streaming capabilities and features without immediate investment in software.
- 3G-SDI and HDMI outputs: Flexible output options ensure compatibility with a variety of broadcasting equipment.
Axis 02023-004 V5938 PTZ Camera Specifications
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Resolution | UHD 4K (3840 x 2160) |
| Frame Rate | Up to 30 fps |
| Zoom | 20x optical zoom |
| Audio Inputs | 2 x XLR |
| Control Interfaces | VISCA, VISCA over IP |
| Output Interfaces | 3G-SDI, HDMI |
| Security Features | Signed firmware, secure boot |
| Compression Formats | H.264, H.265 (Zipstream) |
SKU  | 02023-004 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3840 X 2160 |
| Lens Type | Motorized Zoom |
| Lens Size | 20X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Voltage | 11-130vDC |
| Dimensions (W x H) | Height: 180 mm (7.1 in) 136 mm (5.4 in) |
| Electronic Shutter | 1/10000 s to 1 s |
| Image Device | Progressive scan RGB CMOS 1/2.5" |
| Minimum Scene Illumination | Color: 0.7 lux at 30 IRE F2.0 1 lux at 50 IRE F2.0, B/W: 0.06 lux at 30 IRE F2.0 0.1 lux at 50 IRE F2.0 |
| Operating Humidity | 10-85% RH (non-condensing) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | typical 17.5 W, max 20 W |
| Video Output | RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| Angle of View | Horizontal field of view: 70.2°–4.1°, Vertical field of view: 39.5°–2.3° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
