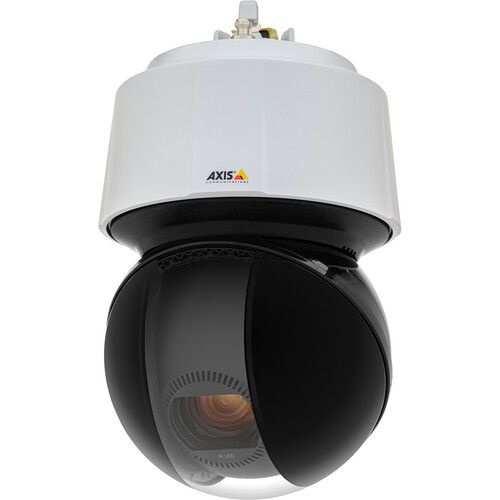

Axis 01959-004 Q6135-LE 2 Megapixel Outdoor IR PTZ Network Camera, 32X
SKU
01959-004
Model No
Q6135-LE
$2,726.61
Product Highlights
- HDTV 1080p with 32x optical zoom
- OptimizedIR (250 m/820 ft range)
- Lightfinder 2.0
- Autotracking 2 and orientation aid
- TPM, FIPS 140-2 level 2 certified
Speak to an expert
The Axis 01959-004 Q6135-LE Outdoor IR PTZ Network Camera delivers exceptional surveillance capabilities with its 2 Megapixel resolution and 32x optical zoom, ensuring high-quality images in various lighting conditions. Enhanced with OptimizedIR for night visibility and advanced security features, this camera is designed for reliable performance in challenging environments, making it an ideal choice for outdoor monitoring.
Axis 01959-004 Q6135-LE Camera Features
- HDTV 1080p with 32x optical zoom: Captures detailed images at long distances, ensuring clarity for security applications.
- OptimizedIR (250 m/820 ft range): Provides superior night vision, enhancing the ability to monitor large outdoor areas even in total darkness.
- Lightfinder 2.0: Delivers sharp, vibrant color images in low light conditions, improving visibility during dusk and dawn.
- Autotracking 2 and orientation aid: Enables automatic tracking of moving objects and easy setup, increasing situational awareness.
- TPM, FIPS 140-2 level 2 certified: Ensures data protection and compliance with security standards, enhancing trust in surveillance data integrity.
Detailed Specifications for Axis 01959-004
| Camera Resolution | 2 Megapixel (HDTV 1080p) |
| Optical Zoom | 32x |
| Night Vision Range | OptimizedIR up to 250 m (820 ft) |
| Low Light Technology | Lightfinder 2.0 |
| Tracking Features | Autotracking 2 with orientation aid |
| Security Features | TPM module, signed firmware, and secure boot |
| Compression Standards | Supports H.264 and H.265 with Axis Zipstream |
SKU  | 01959-004 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 100-240vAC |
| Dimensions (W x H) | Height: 241 mm (9.5 in) ø 165 mm (6.4 in) |
| Electronic Shutter | 1/66500 s to 2s |
| Image Device | 1/2.8” Progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.09 lux at 30 IRE F1.4, B/W: 0.008 lux at 30 IRE F1.4, 0 lux with IR illumination on Color: 0.06 lux at 50 IRE F1.4, B/W: 0.01 lux at 50 IRE F1.4, 0 lux with IR illumination on |
| Operating Temperature | -50 °C to 50 °C (-58 °F to 122 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy |
| Weatherproof | IP66 |
| Angle of View | Horizontal field of view: 58.3˚–2.4˚, Vertical field of view: 34.9˚–1.3˚ |
| IR Distance | 250m/860ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
