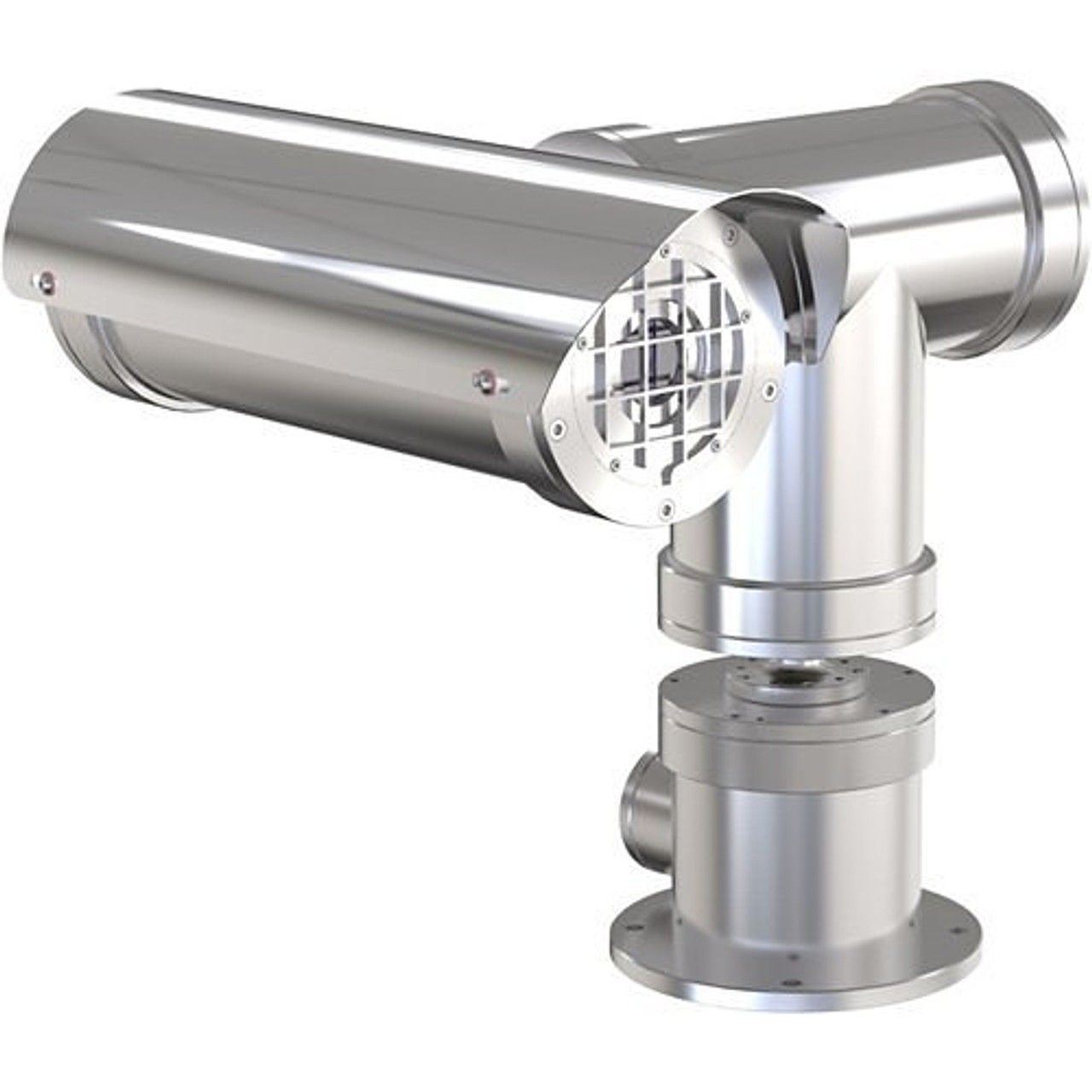

Axis 01142-001 XP40-Q1942 Explosion-Protected PT Thermal Network Camera, 19mm Lens
SKU
01142-001
Model No
XP40-Q1942 UL 8.3FPS 19MM -50C
$32,171.04
Product Highlights
- Stainless steel (SS 316L) housing
- VGA thermal resolution
- Reliable detection and fast verification
- Continuous 360° pan, ±90° tilt
- Wide temperature range
Speak to an expert
The 01142-001 XP40-Q1942 from Axis is an explosion-protected PT thermal network camera designed for demanding environments like offshore and heavy industrial settings. Featuring a 19mm fixed lens, this camera ensures safety with its robust 316L stainless steel housing, certified for hazardous areas. With its advanced thermal detection capabilities, it operates effectively in all lighting conditions, providing reliable surveillance and the ability to integrate seamlessly with other security systems.
Axis 01142-001 XP40-Q1942 Camera Features
- Stainless Steel (SS 316L) Housing: Ensures durability and protection against harsh environments, preventing sparks from escaping in hazardous areas.
- VGA Thermal Resolution: Provides clear thermal imaging for accurate monitoring and detection of potential threats.
- Reliable Detection and Fast Verification: Facilitates quick response times to events, enhancing overall safety and security.
- Continuous 360° Pan, ± 90° Tilt: Offers comprehensive surveillance coverage without blind spots, essential for monitoring large areas.
- Wide Temperature Range: Designed to function effectively in extreme weather conditions, ensuring reliable performance year-round.
Axis 01142-001 XP40-Q1942 Detailed Specifications
| Camera Type | Thermal Network Camera |
| Lens Type | 19mm Fixed Lens |
| Material | 316L Stainless Steel |
| Explosion Protection Certification | ATEX, IECEx, UL |
| Pan/Tilt Capability | 360° Pan, ± 90° Tilt |
| Resolution | VGA Thermal |
| Operating Temperature Range | Wide operating range suitable for various climates |
| Integration | High compatibility with access control and fire alarm systems |
SKU  | 01142-001 |
|---|---|
| Features | Auto Gain Control, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 19mm |
| Mount Type | Pedestal |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Dimensions (W x H) | 475 x 512 x 480 mm (18 11/16 x 20 3/16 x 18 7/8 in) |
| Image Device | Uncooled Micro bolometer 640x480 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | Max. : 100 W |
| Protocols | IPv4/v6, HTTP, HTTPS b, SSL/TLS b , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Weatherproof | IP66 , IP67 |
| Angle of View | Horizontal : 32° |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
