Bogen WV250 Wall Mount Power Vector Modular Input Amplifier, 250W
- 250-watt model, each with a large power reserve
- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
- 8 module bays
- Wide selection of advanced plug-in modules
- 2 module bays capable of handling signal processing plug-in output modules

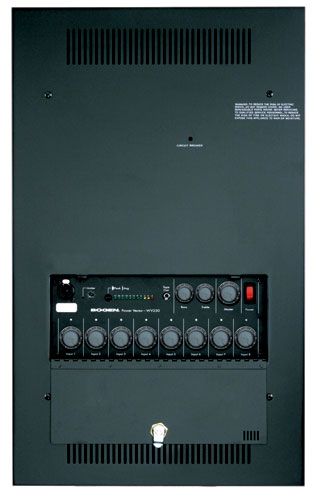

The WV250 from Bogen is a wall mount power vector modular input amplifier 250W with 8 module bays for a wide array of inputs and outputs. Modules are available for signal processing and inputs such as: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; transformer-isolated; microphones; tone generator; and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4/8ohm or 25/70V output loads. Wall mounting is simplified with flush and surface options (sold separately) while a thermally controlled 3-speed fan will keep your amp operating at full power. When you need an amplifier with flexibility and reliability, the Wall Mount Power Vector WV250 is the obvious choice.
Features
- 250-watt model: Each unit offers a large power reserve for robust performance.
- Multiple load capabilities: Handles 70V, 25V, 8-ohm, and 4-ohm speaker loads for versatility.
- 8 module bays: Supports a wide selection of advanced plug-in modules to enhance functionality.
- Signal processing capability: 2 bays are dedicated to signal processing plug-in output modules.
- 4 levels of priority: Allows customization of audio feeds from multiple modules.
- 11-segment LED output level meter: Monitors output levels, featuring Peak and Average meter switch for precise control.
- Adjustable output level limiter: Ensures optimal sound without distortion, equipped with limit indicator.
- Tape output: Conveniently located on the front for easy access to recordings.
- Optional front-mounted input combo jack: Supports 1/4" stereo phone and female XLR for diverse input options.
- Motorized master volume control: Can be remotely operated for user convenience.
- Bass and treble controls: Fine-tune sound quality with center detent for easy adjustments.
- Two-color LED indicator: For each channel, shows input active/clipping for monitoring performance.
- Output selection switch: User-selectable between transformer-coupled outputs or direct low-impedance output.
- 5-position barrier strip: Provides secure connections for various speaker loads with clamping washers.
- Master mute function: Overrides all audio from the mixer section, useful in emergencies.
- Screw terminal for master mute and remote volume: Enhances control options for installation setups.
- Independent volume control: Each of the 8 module bays has its own volume control for tailored sound.
- UL Listed: Meets UL Standard 60065 for dependable safety standards in the US and Canada.
Bogen WV250 Wall Mount Power Vector Specifications
| Power Output | 250W |
| Speaker Load Options | 70V, 25V, 4-ohm, 8-ohm |
| Module Bays | 8 |
| Signal Processing | 2 bays for plug-in output modules |
| LED Meter | 11-segment with Peak/Average switch |
| Output Limiter | Adjustable with limit indicator |
| Input Combos | 1/4" stereo phone & female XLR (optional) |
| Mounting Options | Flush and surface (sold separately) |
| Cooling System | Thermally controlled 3-speed fan |
| Master Mute | Overrides all audio signals |
| Dimensions | 15.0” x 17.0” x 3.0” (H x W x D) |
| Weight | 20 lbs |
SKU  | WV250 |
|---|---|
| Manufacturer | Bogen |
| Features CD Player | No |
| Features AM/FM Tuners | No |
| Features MP3 or iPod Dock | No |
| Watts | 250 Watts |
| # of Inputs | 8 |
| # of Outputs | 4 |
| Output Connection | Screw Terminal |
