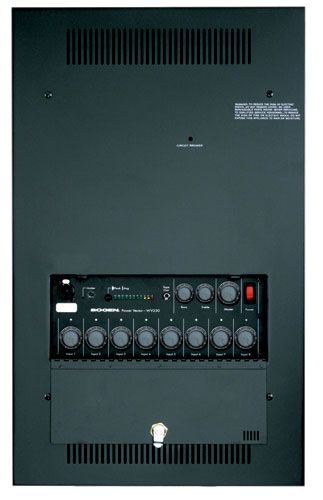

Bogen WV150 Wall Mount Power Vector Modular Input Amplifier, 150W
SKU
WV150
Model No
WV150
$1,330.45
Product Highlights
- 150-watt model, each with a large power reserve
- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
- 8 module bays
- Wide selection of advanced plug-in modules
- 2 module bays capable of handling signal processing plug-in output modules
Speak to an expert
The WV150 from Bogen is a wall mount power vector modular input amplifier designed for versatility and high performance. With 150W of power and 8 module bays, it supports a range of inputs and outputs, making it suitable for various audio applications. The amplifier offers automatic module sensing, a 5-position barrier strip for flexible output loads, and a thermally controlled fan, ensuring reliable operation. Ideal for those needing a powerful and adaptable audio solution, the WV150 stands out with its advanced features and user-friendly design.
Bogen WV150 Amplifier Features
- 150-watt model: Provides a large power reserve for robust audio performance.
- Versatile speaker compatibility: Handles 70V, 25V, 8-ohm, and 4-ohm speaker loads for flexible connectivity.
- 8 module bays: Offers extensive options for various input and output modules.
- Advanced plug-in modules: Select from a wide range of modules for customized audio processing.
- Signal processing capability: 2 module bays designed for managing output modules for optimal sound quality.
- Prioritization options: 4 levels of priority between modules ensure important audio signals are prioritized.
- LED output level meter: 11-segment indicator tracks output levels, helping prevent distortion.
- Adjustable output level limiter: Provides a limit indicator to protect against excessive output levels.
- Easy accessibility: Tape output located on the front for convenient access.
- Front-mounted input combo jack: Features 1/4" stereo phone and female XLR capabilities for diverse input options.
- Remote volume control: Motorized master volume allows for external adjustments.
- Bass and treble controls: Center detent knobs provide user-friendly tone adjustments.
- Channel indicators: Two-color LEDs show input activity and clipping for each channel.
- Output options: Switch to select transformer-coupled outputs or a direct low-impedance output based on needs.
- 5-position barrier strip: Connections for speaker loads ensured with clamping washers for stability.
- Master mute function: Overwrites all audio from the mixer for quick audio management.
- Remote control terminals: Screw terminal for both master mute and remote volume control functions.
- Independent volume control: Each of the 8 module bays features its own volume control.
- Compliance and safety: Listed to UL Standard 60065 for safety in the US and Canada.
Detailed Specifications for Bogen WV150
| Power Output | 150 Watts |
| Speaker Loads | 70V, 25V, 8-ohm, 4-ohm |
| Module Bays | 8 |
| LED Meter | 11-segment, Peak and Average switchable |
| Output Limiter | Adjustable with limit indicator |
| Front Inputs | Input combo jack (1/4" stereo phone and XLR) |
| Controls | Bass and treble with center detent, remote master volume |
| Safety Listing | UL Standard 60065 (US and Canada) |
SKU  | WV150 |
|---|---|
| Manufacturer | Bogen |
| Features CD Player | No |
| Features AM/FM Tuners | No |
| Features MP3 or iPod Dock | No |
| Watts | 150 Watts |
| # of Inputs | 8 |
| # of Outputs | 4 |
| Output Connection | Screw Terminal |
