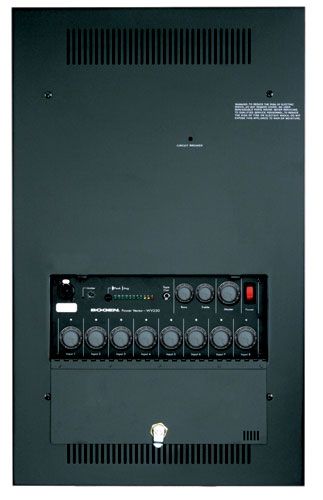

Bogen WV100 Wall Mount Power Vector Modular Input Amplifier, 100W

The WV100 from Bogen is a wall mount power vector modular input amplifier 100W with 8 module bays for a wide array of inputs and outputs. Modules are available for signal processing and inputs such as: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; transformer-isolated; microphones; tone generator; and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4/8ohm or 25/70V output loads. Wall mounting is simplified with flush and surface options (sold separately) while a thermally controlled 3-speed fan will keep your amp operating at full power. When you need an amplifier with flexibility and reliability, the Wall Mount Power Vector WV100 is the obvious choice.

Features

• 100-watt model: Each unit comes with a large power reserve, ensuring consistent performance in demanding environments.
• Speaker load versatility: Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads, offering flexibility for various audio setups.
• 8 module bays: Provides extensive customization options with multiple plug-in modules available for different audio needs.
• Advanced plug-in modules: A wide selection allows for tailored solutions that enhance overall sound quality.
• Signal processing capability: 2 module bays designed for signal processing output modules improve audio performance.
• Priority control: 4 levels of priority between modules allow for seamless audio management in multi-input scenarios.
• LED output level meter: 11-segment meter monitors output levels, enabling precise audio control with Peak and Average settings.
• Adjustable output level limiter: This feature includes a limit indicator to prevent distortion and maintain sound quality.
• Tape output accessibility: Conveniently available on the front of the unit for easy integration with tape devices.
• Front-mounted input combo jack: 1/4" stereo phone and female XLR capabilities enhance connectivity options.
• Motorized master volume control: Can be remotely operated for added convenience in adjustment.
• Bass and treble controls: Designed with center detent, allowing for easy tonal adjustments.
• Input indicator lights: Two-color LED for each channel signals whether the input is active or clipping, aiding in monitoring.
• Output selection switch: Permits the choice of transformer-coupled outputs or direct low-impedance outputs, enhancing application versatility.
• 5-position barrier strip: With clamping washers for secure connections, accommodating a variety of speaker loads.
• Master mute function: Overrides all audio from the mixer section, ensuring control over output in specific scenarios.
• Remote volume control function: Includes screw terminal for master mute and volume control, providing operational flexibility.
• Independent volume controls: Each of the 8 module bays features its own volume control for precise mixing.
• Compliance with safety standards: Listed to UL Standard 60065 for US and Canada, ensuring reliable, safe operation.

Bogen WV100 Detailed Specifications
