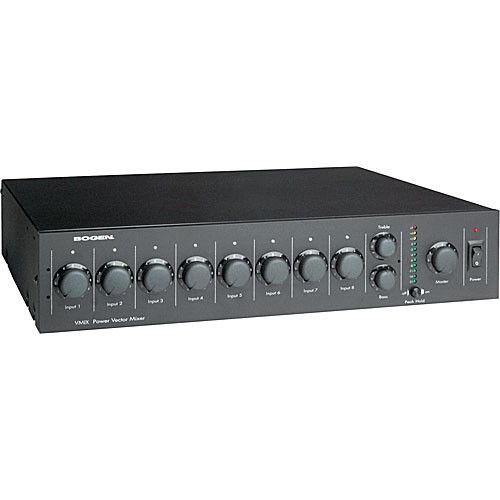

Bogen VMIX Power Vector Mixer Preamplifier

Bogen?s Power Vector Mixer is an 8-channel mixer/pre-amplifier, offering a wide variety of operational features and functions for superior audio performance. Eight module bays accept plug-in input modules, allowing up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status, and an 11-segment LED output level meter that monitors output signal level. In addition, the VMIX has a motorized master volume control (that can be controlled using a remote control panel, RVCP, sold separately), bass and treble control, Avg/Peak switch, unbalanced output jack, and balanced output terminal. Optional security covers prevent tampering of settings. The VMIX can be used for various applications including foreground music, background music, and paging. For large applications, several VMIX units can be bridged together.

Features

• 8 input module bays: each with independent volume controls for tailored sound management.
• 2 module bays for output processing: enables integration of varied audio output options.
• 4 levels of priority: ensures important messages are heard first during multi-channel use.
• Motorized master volume control: can be remotely operated (with RVCP Remote Volume Control Panel, sold separately) for convenience.
• LED signal/clip indicator: for each channel to monitor audio integrity.
• Bass and treble controls: for customizable audio quality to suit different environments.
• 11-segment LED output level meter: actively monitors output level with Avg/Peak switch for precise sound management.
• Balanced transformer-isolated output: provides high-quality audio free from ground loop noise.
• Balanced output signal level switch: (-50, -10, and +4 dB?) for versatile compatibility with other equipment.
• Unbalanced signal output jack: offers further connectivity options for audio distribution.
• Bridging capability: join multiple Power Vector mixers together using bridging jack and mute terminals for larger applications.
• 125 Hz Low-cut feature: switch located in module bay 6 for improved clarity in vocal applications.
• Tone control bypass switch: located in module bay 6 for quick adjustments during live events.
• Rack mountable: with rack mounting kit RPK87, sold separately, for professional installations.
• Resettable circuit breaker: protects the system from overloads, ensuring longevity.
• Grounded AC convenience receptacle: with 500W maximum capacity for additional external equipment.
• Power indicator: provides a clear indication of system power status.
• Security cover: protects volume, bass, and treble controls (PVSC, sold separately) from tampering.
• PVMC module security covers: prevent tampering with module controls (8 included) for secured adjustments.

Bogen VMIX Power Vector Mixer Preamplifier Specifications
