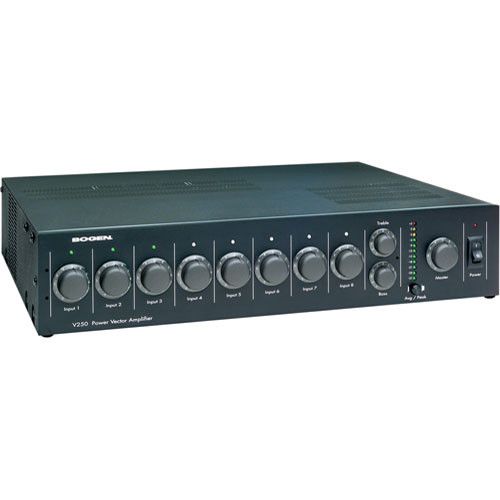

Bogen V250 Power Vector Modular Input Amplifier, 250W

SKU
V250
Bogen V250 Power Vector Modular Input Amplifier, 250W V250 by Bogen
Bogen V250 Power Vector Modular Input Amplifier, 250W V250 by Bogen
Model No
V250
$702.66
Qty:
Product Highlights
    • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
    • 8 module bays
    • Wide selection of advanced plug-in modules (modules sold separately)
    • 4 levels of priority between modules
    • 2 module bays capable of handling plug-in signalprocessing output modules

The V250 from Bogen is a power vector amplifier 250W with 8 module bays for a wide array of inputs and outputs. Modules are available for signal processing and inputs such as: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; transformer-isolated; microphones; tone generator; and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4/8ohm or 25/70V output loads. When you need an amplifier with flexibility and reliability, the Power Vector V250 is the obvious choice.

Features

  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules (modules sold separately)
  • 4 levels of priority between modules
  • 2 module bays capable of handling plug-in signalprocessing output modules
  • 11-segment LED output level meter monitors the output level of the power amplifier with Avg./Peak meter switch
  • Motorized master volume control can be remotely operated
  • Lockable switch permits user to select either transformer-coupled outputs or a direct lowimpedance output
  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Bridging In/Out connector
  • External access to priority mute buses
  • Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
  • Independent volume control for each of the eight module bays
  • Two-color LED for each channel indicates input signal or clipping
  • Bass and treble control with bypass switch (located in module bay 6)
  • Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
  • Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
  • Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
  • 8 module security cover/filler plates included with amplifier (PVMC)
  • 2 rack spaces high (3-1/2")
  • Listed to UL Standard 60065 for U.S. and Canada
SKU  V250
Manufacturer  Bogen
Features CD Player No
Features AM/FM Tuners No
Features MP3 or iPod Dock No
Watts 250 Watts
# of Inputs  8
# of Outputs  4
Output Connection  RCA
