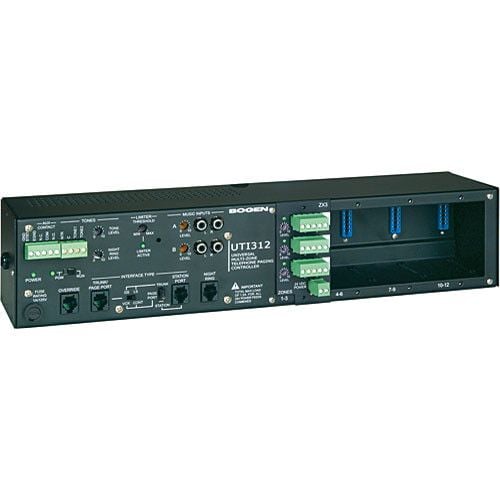

Bogen UTI312 Multi-Zone Paging Controller

The Bogen UTI312 Multi-Zone Paging Controller is a powerful and flexible solution for 70V installations, perfect for commercial settings such as retail spaces, offices, schools, warehouses, and medical facilities. With its modular design and expandable capabilities, this controller can handle up to 12 zones using optional ZX3 modules, offering users comprehensive control over their paging system.

Bogen UTI312 Multi-Zone Paging Controller Features

• Expandable: Expandable from 3 up to 12 zones using ZX3 modules, allowing for versatile system configurations.
• Programmable Zone Groups: Up to 24 programmable paging zone groups for tailored communications within different areas.
• Telephone Interfaces: Features loop start trunk, ground start trunk, and various activation options for streamlined communication.
• Simple Setup: Easy-to-use 2-switch interface simplifies initial configuration and setup processes.
• Aux Contacts Activation: Programmable activation of AUX contacts for added operational flexibility.
• C-Form Contact: Supports C-form contact per zone for reliable operation.
• Power Supply: 24V DC, 1A internal power supply ensures robust power management.
• Audio Drive Capability: Provides audio drive for up to 150 one-way self-amplified speakers per zone, enhancing communication reach.
• Output Limiter: Adjustable output limiter with threshold control and active indicator for audio quality management.
• Background Music Busses: Two selectable background music busses per zone for tailored auditory environments.
• Transformer Isolated Inputs: Two high-impedance transformer isolated background music inputs prevent interference.
• Stereo Inputs: Stereo combining inputs for background music busses deliver superior sound quality.
• All-Call Paging: Features an All-Call paging zone group for emergency communications.
• Override Paging: Allows override paging using loop start trunk or page port contact closure activation for critical messages.
• Night Ringer: Night Ringer function with zone groups ensures alertness during off-hours.
• Two Tone Triggers: Customizable tone and duration selectable for tailored alerts.
• Code Calling: Implement code calling for efficient zone identification.
• Flexible Dialing Plan: Support for 2 to 5 Digit dialing with customizable zone and zone group numbers.
• Non-volatile Memory: Retains setup data without needing a backup battery, ensuring reliability.
• Tones: Offers various tones including Pre-Announce, Confirmation, and Setup tones for user feedback.
• Terminal Strips: Features pluggable terminal strips for easy connections and maintenance.
• Microcontroller-Based: Operates with a microcontroller for enhanced performance and efficiency.
• DTMF Programming: DTMF programming flexibility facilitates seamless integration.
• Programmable Timers: Control page duration settings ensuring effective communication management.
• Mounting Options: Wall- or rack-mountable for versatile installation choices.

Bogen UTI312 Detailed Specifications
