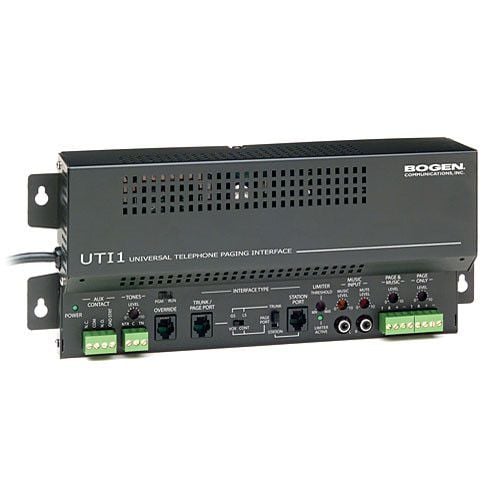

Bogen UTI1 Single Zone Paging Controller
SKU
UTI1
Model No
UTI1
$285.60
Product Highlights
- Single-zone paging
- Simple 2-switch interface setup
- Override paging (using loop start trunk or page port contact closure activation)
- Programmable activation of AUX contacts
- C-form contact
Speak to an expert
The Bogen UTI1 Single Zone Paging Controller is an essential solution for effective one-way communication in various settings. With its compatibility with standard analog port types and the capability to drive up to 150 self-amplified speakers, this controller ensures clear audio output. It features user-friendly setup, multiple activation options, and programmable settings, making it perfect for any paging needs.
Bogen UTI1 Single Zone Paging Controller Features
- Single-zone paging: Ideal for straightforward one-way communication in self-amplified speaker systems.
- Telephone interfaces: Supports multiple trunk types and page port activation for versatile connectivity.
- Simple 2-switch interface setup: Quick and easy setup for efficient deployment.
- Override paging: Allows immediate broadcasting using loop start trunk or page port activation.
- Programmable activation of AUX contacts: Customizable activation options for added flexibility.
- C-form contact: Reliable contact type for various integrations.
- Two audio outputs: Offers Page Only and Page with Background Music outputs, both with level controls for tailored audio experience.
- High output capacity: Each output can drive 150 self-amplified speakers, ensuring extensive coverage.
- Background music input: High impedance transformer-isolated input with volume control enhances ambiance.
- Night Ringer: Integrated contact closure activation for alerting during off hours.
- Custom tone options: Tone Trigger and various tone selections ensure engaging sound notifications.
- Adjustable output limiter: Maintains sound integrity with threshold control and active indication.
- Non-volatile memory: Preserves setup data without requiring a backup battery, ensuring reliability.
- Pluggable terminal strips: Facilitates easy wiring and connections.
- Microcontroller-based operation: Enhances performance and reliability.
- Wall mounting flanges: Simple mount option for convenience in installation.
Bogen UTI1 Detailed Specifications
| Power Supply | 24V DC @ 1A |
| Audio Outputs | Two outputs (Page Only and Page with Background Music) |
| Speaker Capacity | 150 self-amplified speakers per output |
| Phone Interface Options | Loop start trunk, ground start trunk, station access |
| Programming Method | DTMF programming |
| Contact Type | C-form contact |
| Tone Options | Tone Trigger, chime, slow whoop |
| Memory Type | Non-volatile data storage |
| Control Options | Volume control for background music |
| Mounting Type | Wall mounting flanges |
SKU  | UTI1 |
|---|---|
| Manufacturer | Bogen |
