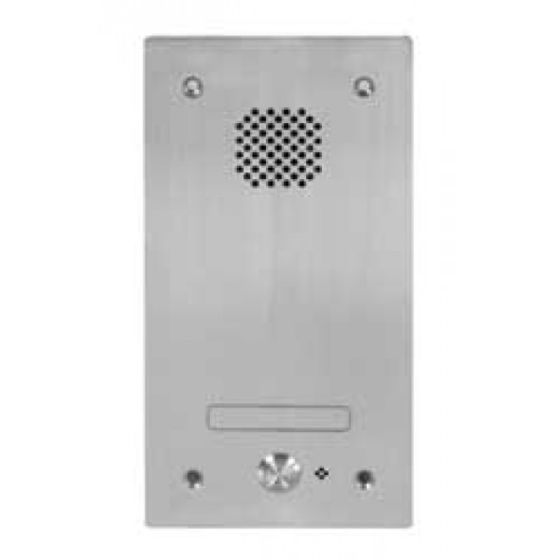

Bogen TERRADS1 IP Media Console/Intercom Station
SKU
TERRADS1
Model No
TERRADS1
$1,341.68
Product Highlights
- Built in condenser microphone
- Built in 2 W loudspeaker
- G.711, G.722, MP3 audio encoding/decoding
- 1 to 4 buttons on the front panel
- SPI for keypad extension
Speak to an expert
The Bogen TERRADS1 IP Media Console/Intercom Station is a versatile wall-mounted SIP/IP intercom designed to enhance communication solutions. Featuring options for up to 4 buttons, this device comes equipped with superior audio technology and connectivity options, making it an ideal choice for both commercial and residential applications.
Bogen TERRADS1 Intercom Features
- Built-in Condenser Microphone: Ensures clear sound capture for effective communication without external microphones.
- Built-in 2 W Loudspeaker: Provides ample sound output for reliable audio during conversations.
- G.711, G.722, MP3 Audio Encoding/Decoding: Offers versatility in audio format support for various communication needs.
- 1 to 4 Buttons on the Front Panel: Allows customization to suit individual user requirements, maximizing usability.
- SPI for Keypad Extension: Expands functionality with the possibility of adding more controls and features.
- 2 Relay Outputs: Enables advanced control for integrated systems, providing additional utility.
- Ethernet Interface Including POE: Simplifies installation with Power Over Ethernet capabilities, reducing wiring complexity.
- 24 VDC Power Supply: Acts as an alternative power solution when POE is not available, ensuring operational flexibility.
- Power Consumption: 2 W: Maintains energy efficiency while delivering high-performance operation.
- Dimensions: Length 35 mm, Height 220 mm, Width 100 mm; compact design fits various settings.
- Weight: 808 g: Lightweight for easy mounting and installation without compromising durability.
Detailed Specifications for Bogen TERRADS1
| Feature | Details |
|---|---|
| Microphone | Built-in condenser microphone |
| Loudspeaker | Built-in 2 W loudspeaker |
| Audio Formats | G.711, G.722, MP3 audio encoding/decoding |
| Button Configuration | 1 to 4 buttons on the front panel |
| Keypad Expansion | SPI for keypad extension |
| Relay Outputs | 2 relay outputs |
| Connectivity | Ethernet interface including POE (Power Over Ethernet) |
| Alternative Power Supply | 24 VDC power supply (if no POE available) |
| Power Consumption | 2 W |
| Dimensions | Length 35 mm, Height 220 mm, Width 100 mm |
| Weight | 808 g |
SKU  | TERRADS1 |
|---|---|
| Manufacturer | Bogen |
