ETS STWI5 1 STW1 Microphone Speaker STWI-1 DVR Interface Box

ETS STWI5 1 STW1 Microphone Speaker STWI-1 DVR Interface Box

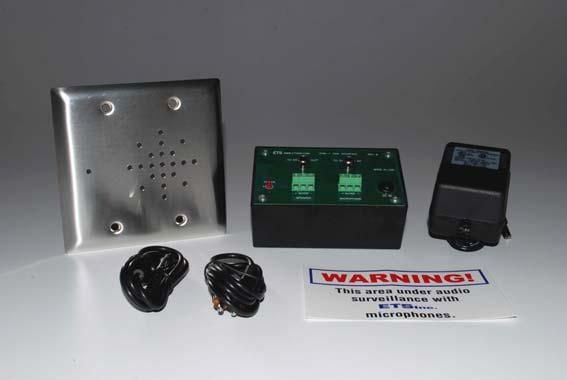

The STWI5 from ETS is a 1 STW1, microphone, speaker, STWI-1 DVR interface box. Single zone, 2-way audio surveillance system. For use with DVRs and remote monitoring equipment.

Features

• STW1 Mic./speaker: Combines high-quality audio capture and output for clear communication in surveillance applications.
• Omni-directional element with 25' range: Provides comprehensive audio coverage for effective monitoring without blind spots.
• Low noise MOSFET pre-amplifier: Ensures clear audio transmission by minimizing background noise.
• Line level, unbalanced output: Compatible with various audio recording and monitoring systems, enhancing integration flexibility.
• Adjustable gain: Allows for customized audio levels, accommodating different environments and requirements.
• Treble boost circuit (Selectable on/off): Enhances high-frequency sounds for improved clarity in recorded conversations.
• Limiter circuit (Selectable on/off): Prevents audio distortion at high volumes, safeguarding sound quality.
• Euro-style connectors: Facilitate quick and tidy cable terminations, simplifying installation processes.
• Flush mount with standard 2 gang stainless plate: Provides a professional and aesthetically pleasing installation option.
• Power: 12 VDC @ 10mA: Energy-efficient design suitable for low-power applications.
• 3-inch .5 watt speaker: Delivers adequate sound output for monitoring purposes in small to medium spaces.
• 70V line speaker input: Ensures compatibility with commercial audio systems for robust performance.
• STW4 Base Station: Enhances system capabilities when paired with other ETS equipment.
• Page mode: Enables talk back to all 4 zones simultaneously, improving communication efficiency.
• Remote volume controls for speaker & microphone: Allows easy adjustments without needing to access the device directly.
• Internal talkback microphone: Facilitates direct communication without needing additional equipment.
• Master volume control: Centralized volume adjustments for greater convenience.
• Press to talk button: Allows immediate control over audio transmission, ensuring important communications aren't missed.
• Automatic zone selection on paging: Streamlines the conversation process effectively, improving user experience.
• VCR/DVR In/outs: Enable recording of both sides of a conversation for comprehensive documentation and review.
• Tape monitor in/out indicator: Provides visual feedback for monitoring and control over audio playback.
• Headphone jack for private listening: Facilitates discreet monitoring without disturbing others.
• Euro-style connectors: Enhance installation efficiency with easy, secure connections.

Detailed Specifications for ETS STWI5 1 STW1 Microphone Speaker STWI-1 DVR Interface Box
