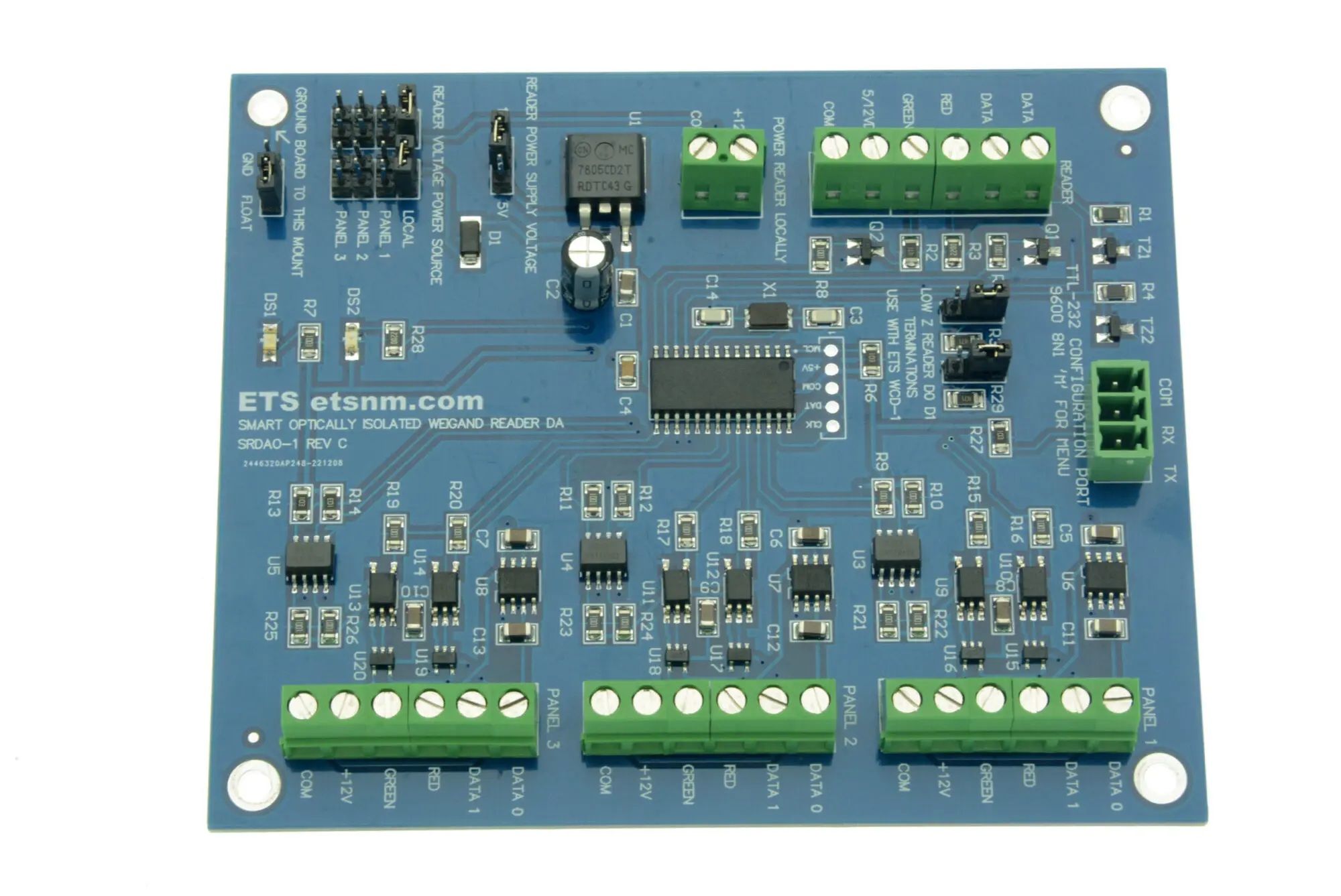

ETS SRDAO-3 Smart Optically Isolated Wiegand Card Reader Distribution Amplifier

The ETS SRDAO-3 Smart Optically Isolated Wiegand Card Reader Distribution Amplifier enhances security systems by providing selective card data routing and exceptional performance. With its capability to process multiple card length and facility code rules, this distribution amplifier ensures that user-defined configurations offer flexibility and reliability in access control applications, while optically isolated inputs and outputs safeguard against ground loops.

ETS SRDAO-3 Smart Amplifier Key Highlights

• Selective Card Data Routing: Routes card data to one of 3 panel outputs based on configurable rules, enhancing flexibility in access management.
• Programmable User Rules: Supports up to 34 programmable card length and facility code rules, allowing customization to meet specific security requirements.
• High Capacity: Capable of handling card lengths of up to 64 bits, ensuring compatibility with a wide range of standard card technologies.
• Buffered Outputs: Features buffered reader data outputs with separate line drivers for reliable performance and signal integrity.
• Ground Loop Protection: Optically isolated inputs and outputs effectively prevent ground loops, enhancing system reliability and minimizing interference.

ETS SRDAO-3 Detailed Specifications
