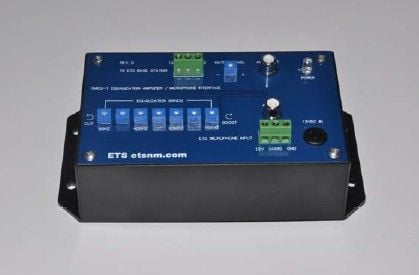

ETS SMEQ-1 Seven Band Audio Equalizer / Microphone Interface

The SMEQ-1 is a 7 band audio equalizer and DVR, IP camera interface designed to be used with ETS SM1 series microphones. The SMEQ-1 can also be connected in between a SM1 series microphone and any ETS base station. Provides +/-12db sound emphasis or de-emphasis of 7 ranges of frequencies (60hz-15khz) for acoustically difficult environments such as interrogation / interview rooms. The user can tune out unwanted background noise and emphasize the desired sound source.

Features

• Direct Connection: Connect any ETS SM1 series microphone directly to the SMEQ-1 for seamless integration.
• Included Accessories: Comes with RCA (or 3.5mm) patch cable and 12Vdc AC adaptor for immediate setup.
• 7 Frequency Band Controls: Adjustable controls for 60hz, 150hz, 400hz, 1Khz, 2.5Khz, 6Khz, and 15Khz allow precise audio tuning.
• Gain Control: Features +/- 12db gain/cut for each frequency band to enhance desired audio elements.
• Versatile Connections: Line level RCA input/out jacks and 3 terminal connectors for various device compatibility.
• Output Level Control: Allows adjustment of overall output for balanced audio distribution.
• Safety Features: Reverse polarity protection and fusing ensure device safety and longevity.
• Durable Design: Constructed with a robust black ABS enclosure for reliability in various environments.

Detailed Specifications of ETS SMEQ-1
