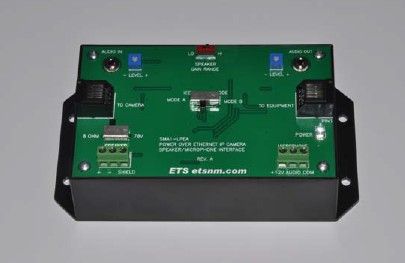

ETS SMA1-LPEA Ethernet powered I/P PoE camera /microphone/speaker interface box

Introducing the ETS SMA1-LPEA, a versatile Ethernet powered I/P PoE camera/microphone/speaker interface box designed for seamless audio integration. This two-way audio inline adaptor taps power from Ethernet-powered I/P cameras to efficiently supply power to ETS Sound Surveillance speakers and microphones. With features like a built-in 2.5W speaker power amplifier, adjustable audio levels, and transformer isolation, this interface box ensures superior audio performance and easy connectivity for monitoring solutions.

ETS SMA1-LPEA Key Features

• RCA or 3.5mm audio input/output connectors: Allows flexible connections for various audio sources and devices, enhancing compatibility.
• Microphone or line level output: Supports different audio sending formats, accommodating diverse installation needs.
• Speaker line level audio input: Ensures high-quality sound transmission from microphones and I/P cameras.
• Transformer isolated audio input and output: Provides enhanced sound quality by eliminating potential noise interference.
• Adjustable audio input/output levels: Allows for fine-tuning, ensuring optimal volume and clarity for any environment.
• 2.5 Watt speaker power amplifier: Delivers sufficient power for clear audio output, making it suitable for varied settings.
• Selectable gain range for speaker: Offers customization for different speaker requirements, enhancing versatility.
• Selectable speaker output: 70V or 8 ohm: Accommodates a range of speaker types, making installation straightforward and adaptable.
• RJ45 in/out jacks for Ethernet: Facilitates robust network connectivity for reliable performance.
• Straight through CAT5 connections (no crossover): Simplifies wiring, reducing installation time and potential errors.
• A/B mode switch for IEEE802.3af power format: Ensures compatibility with standard PoE devices for easy integration.
• Internal switching regulator: Converts PoE 48-57Vdc to 15Vdc, powering the internal speaker amplifier and microphone supply efficiently.
• Current consumption 80ma maximum: Maintains low power usage, making it energy efficient.
• LED power indicator: Provides a clear visual indication of the device’s operational status.
• Euro-style connectors: Facilitate fast and clean cable terminations for speakers and microphones.
• Auto polarity protected & fused: Ensures safety and longevity of device operation by preventing voltage damage.

ETS SMA1-LPEA Detailed Specifications
