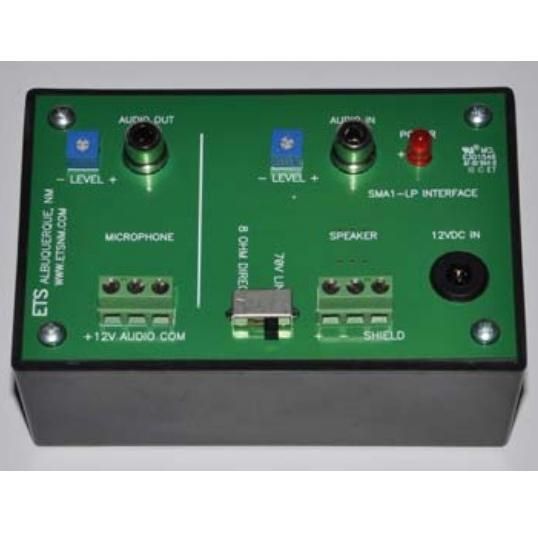

ETS, SMA1-LP, Microphone, 2 Watt Speaker, Amplifier Interface

The SMA1-LP from ETS is a high-performance microphone and speaker amplifier interface, designed to facilitate clear, two-way audio communication in various surveillance systems and public address applications. With its 2 Watt power output, flexible 70V or 8 Ohm options, and compatibility with long cable runs, this device ensures reliable audio transmission for your security and communication needs.

ETS SMA1-LP - Key Features

• Line Level Input: Offers consistent audio levels for clear sound quality in surveillance applications.
• Connection Compatibility: Standard RCA or 3.5mm jacks provide versatility in connecting to DVRs and other equipment.
• Independent Volume Control: Allows for separate adjustment of speaker and microphone levels, enhancing user experience.
• Selectable Output Levels: Choose between 70V or 8 Ohm outputs to suit your specific speaker needs.
• Power Output: 2 Watts RMS ensures sufficient amplification for effective communication.
• Wide Frequency Response: 200-10kHz frequency range delivers clear audio across all communication bands.
• Short Circuit Protection: Safeguards the device against electrical faults, ensuring longevity and reliability.
• Built-in Audio Transformer: The integrated 70V 10W transformer facilitates enhanced power management.
• Easy Wiring: Euro-style connectors simplify connections, making installations quicker and more efficient.
• LED Power Indicator: Provides visual confirmation of power status, ensuring devices are functioning correctly.
• Power Specifications: 16 VAC @ 1000mA for reliable power supply.
• Auto Reset Fused: Protects the device against overloads, enhancing safety and performance.
• Durable Housing: Constructed with black plastic ABS for resilience in various environments.

ETS SMA1-LP - Detailed Specifications
