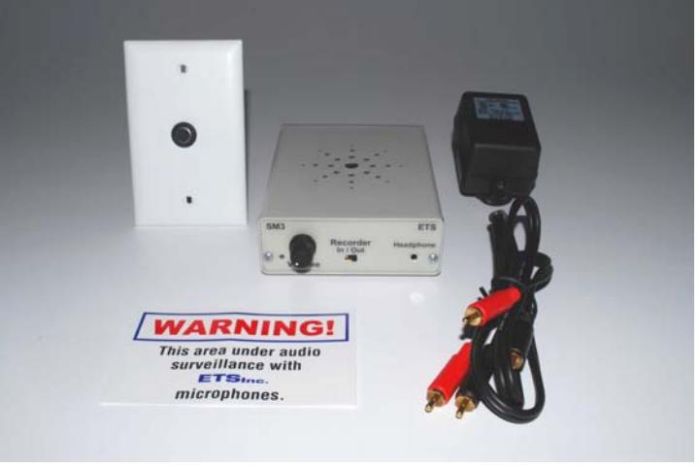

ETS SM6-LE2 1 SM1-LE2 Microphone, SM3 Amplifier

The SM6-LE2 from ETS is a complete single zone audio surveillance system. Can be used independently for monitoring live audio or with tape recorders or DVRs for recording and playback.

ETS SM6-LE2 Microphone Features

• Omni-directional Electret element: Provides a 25’ range in all directions for comprehensive audio capture.
• Frequency response: 200-16kHz ensures high-quality audio reproduction across a wide range of sounds.
• Low noise MOSFET pre-amplifier: Minimizes background noise, delivering clearer audio signals.
• Line level, unbalanced output: Simplifies connection to audio systems without compromising quality.
• Adjustable gain: Allows for customizable audio levels to suit various environments.
• Treble boost circuit: Enhances clarity of time lapse recordings; selectable on/off option tailors audio to user needs.
• Limiter circuit: Protects audio from distortion; selectable on/off enhances recording quality.
• 3 position Euro-style connector: Facilitates fast and clean cable termination for easy installations.
• Flush mountable: Fits a standard single gang electrical box for versatile placement options.
• Power: Operates on 12 VDC @ 10mA, ensuring efficient energy usage.

ETS SM3 Amplifier Features

• Standard RCA jacks: Enable connection to tape recorders, DVRs, and other audio devices for versatile usage.
• 3 position Euro-style connector: This feature allows for quick and clean cable termination, simplifying setup.
• 1 Watt Power amplifier: Provides adequate power for enhancing audio playback without distortion.
• 3” full range speaker: Delivers clear sound quality across the audio spectrum for optimal listening experience.
• Tape monitor switch: Enables easy monitoring of recordings to ensure audio quality.
• 3.5mm Headphone jack: Allows for private listening and audio monitoring.
• Power: Efficiently operates on 12 VDC @ 250mA, making it ideal for regular use.
• Reverse polarity protected and fused: Safeguards the amplifier from potential damage due to incorrect connections.

Detailed Specifications for ETS SM6-LE2 System
